DVB-Satellite FEC Decoder

Commsonic Ltd

Select

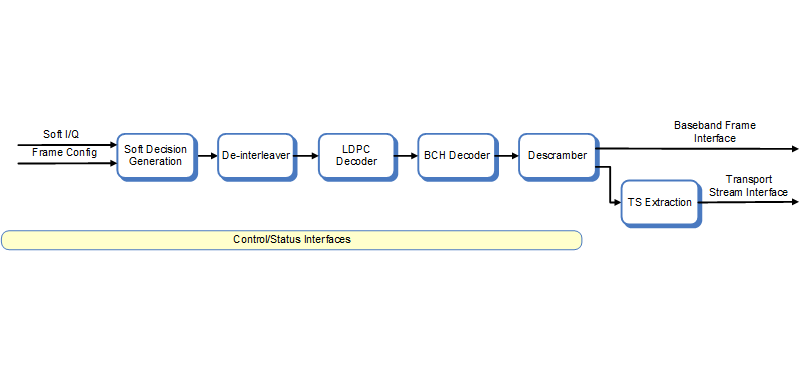

The Commsonic CMS0077 Satellite FEC Decoder has been designed specifically to meet the requirements of the DVB-S2, DVB-S2X and ISDB-S3 advanced wide-band digital satellite standards. The core integrates seamlessly with the Commsonic CMS0059 DVB-S2 / DVB-S2X / ISDB-S3 physical layer demodulator core to provide a complete satellite decoding solution. The core provides all the necessary processing steps to convert a demodulated complex I/Q signal into a standard TS output stream. If configured for ACM operation, the FEC mode can dynamically change on a frame-by-frame basis.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Supports DVB-S2: QPSK, 8-PSK, 16/32 APSK
  • Supports DVB-S2X: 64/128/256-APSK
  • Integrated soft-decision slicing
  • Integrated LDPC and BCH decoding
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 SX FPGA, Cyclone® III FPGA, Cyclone® IV GX FPGA, Agilex™ 5 FPGA E-Series, Cyclone® V SX FPGA, Arria® V GZ FPGA, Agilex™ 9 FPGA Direct RF-Series, Agilex™ 7 FPGA I-Series, Arria® V SX FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX FPGA, Agilex™ 7 FPGA M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex™ 3 FPGA C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST FPGA, Agilex™ 5 FPGA D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex™ 7 FPGA F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Demo No
Compliance No
Latest Quartus Version Supported 23.0.0
Development Language C/C++, Encrypted VHDL

Megacore, Testbench, Documentation

Ordering Information

CMS0077
