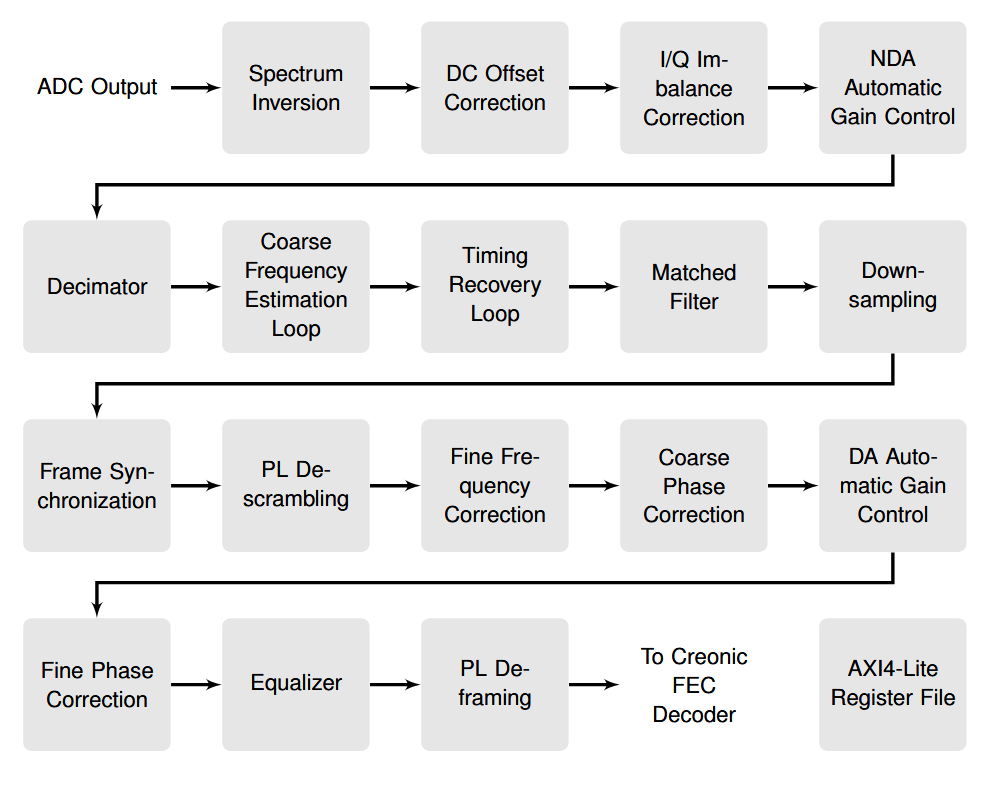

The Creonic DVB-S2X Wideband demodulator is a low-complexity high-performance solution that allows for symbol rates of up to 500 MSymb/s on state-of-the-art FPGAs. DVB-S2X is the next generation satellite transmission standard which is an extended version of its well-established predecessor DVB-S2. The new specification allows for spectral efficiency gains of up to 50% by offering lower roll-off factors, higher modulations, and a finer code rate granularity compared to DVB-S2.

View Partner Website

Partner Product Page

Contact Now

Contact Creonic GmbH

LeadSource

ASAP Account ID

Record Type Name

Key Features

Compliant with ETSI EN 302 307-1 V1.4.1 (2014-11) (DVB-S2) and ETSI EN 302 307-2 V1.1.1 (2014-10) (DVB-S2X)
Supports CCM, ACM and VCM modes
Support for QPSK up to 256-APSK
Support for short blocks (16200 bits) and long blocks (64800 bits)
Optional support for Annex M (time-slicing)
Output of XFECFRAMEs for further processing by the Creonic DVB-S2X FEC decoder IP core

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, MAX® V CPLD, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	No
Design Examples Available	No
Demo	No
Compliance	No
Latest Quartus Version Supported	22.4.0
Development Language	C/C++, Verilog, VHDL
