DVB-S2X LDPC/BCH Decoder

Creonic GmbH

Select

The Creonic DVB-S2X decoder is a silicon-proven, scalable solution that allows for symbol rates of up to 100 MSymbols/s on state-of-the-art FPGAs. DVB-S2X is the next generation satellite transmission standard which is an extended version of its well-established predecessor DVB-S2. The new specification allows for spectral efficiency gains of up to 50% by offering lower roll-off factors, higher modulations and a finer code rate granularity compared to DVB-S2.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Compliant with DVB-S2 and DVB-S2X
  • Support for decoding of BBFRAMEs
  • Support for ACM, CCM, and VCM
  • Support for very low SNR modes (VLSNR) with SNRs below -9 dB
  • Support for short, medium, and normal frames (16,200 bits, 32,400 and 64,800 bits)
  • Support for BPSK, QPSK, 8-PSK, 16-APSK, 32-APSK, 64-APSK, 128-APSK, and 256-APSK
Expand Close

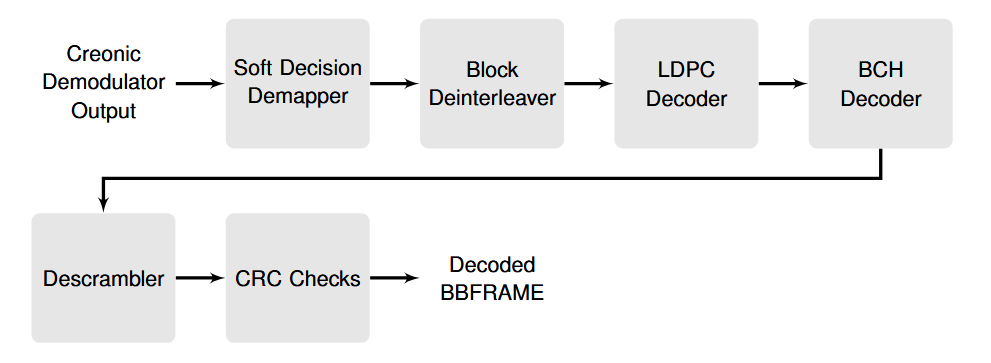

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 SX SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, MAX® V CPLD, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Stratix® III FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License No
Design Examples Available No
Demo No
Compliance No
Latest Quartus Version Supported 22.4.0
Development Language C/C++, Verilog, VHDL

Deliverable includes Verilog source code or synthesized netlist, VHDL testbench, and bit-accurate Matlab, C or C++ simulation model​

Ordering Information

Creonic DVB-S2X LDPC / BCH Decoder

from Direct

Order Now

Documentation & Resources

design hub icon Product Brief
