The MitySOM-A5E Mini Development Kit supports Critical Link’s Agilex™ 5 FPGA Mini system on modules. Each kit comes complete with all the connectivity needed in any application well suited for the MitySOM-A5E Mini, including DisplayPort, USB 3.1, Gigabit Ethernet, SFP+ (supporting up to 10 Gb Ethernet), one x4 lane MIPI CSI camera inputs, and PCIe 4.0. Additionally, the development kit is equipped with a Micro-USB 2.0 console interface, Micro-SD card storage, and a dual 46-pin expansion interface providing support for additional I/O signals.

View Partner Website

Partner Product Page

Contact Now

Contact Critical Link LLC

LeadSource

ASAP Account ID

Record Type Name

Key Features

Excellent out of box experience and easy transition to production for customers developing with Agilex™ 5
Customers get access to Critical Link's development kit base board design files to jump start their own design
MitySOM-A5E is a production-ready SOM featuring a range of FPGA densities, memory configurations, and operating temperature ranges
Long term availability and product support
US-based engineering and production
Lifetime access to our technical support site, as well as access to application engineering resources and other services
ISO 9001:2015 certified

Offering Brief

Device Family	Agilex™ 5 FPGA E-Series
Offering Status	Production
Device OPN(s) on Board	A5ED065BB32AE5SR0;A5ED065BB32AE6SR0;A5ED065BB32AE4SR0;A5ED065BB32AI5S;A5ED065BB32AI6S;A5ED052BB32AE4S;A5ED052BB32AI6X;A5ED052BB32AE5S;A5ED052BB32AE6X;A5ED052BB32AI4S;A5ED065BB32AI6X;A5ED052BB32AE6S;A5ED065BB32AE6S;A5ED065BB32AE5S;A5ED065BB32AE6X;A5ED065BB32AI4S;A5ED052BB32AI5S;A5ED052BB32AI6S;A5ED065BB32AE4S;A5ED043BB32AE4S;A5ED043BB32AE5S;A5ED043BB32AE6S;A5ED043BB32AE6X;A5ED043BB32AI4S;A5ED043BB32AI5S;A5ED043BB32AI6S;A5ED043BB32AI6X
Demo	No

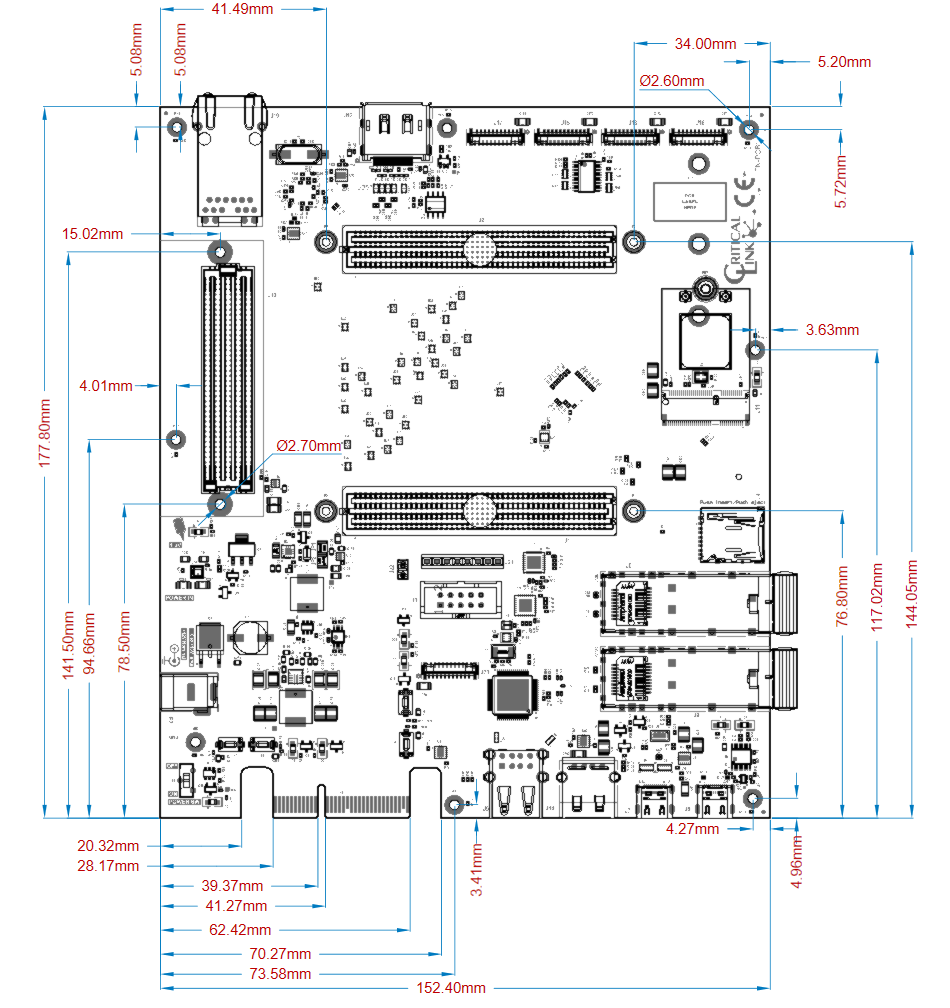

Form Factor	6.0" x 7.0"
Power	5-12Vdc Input

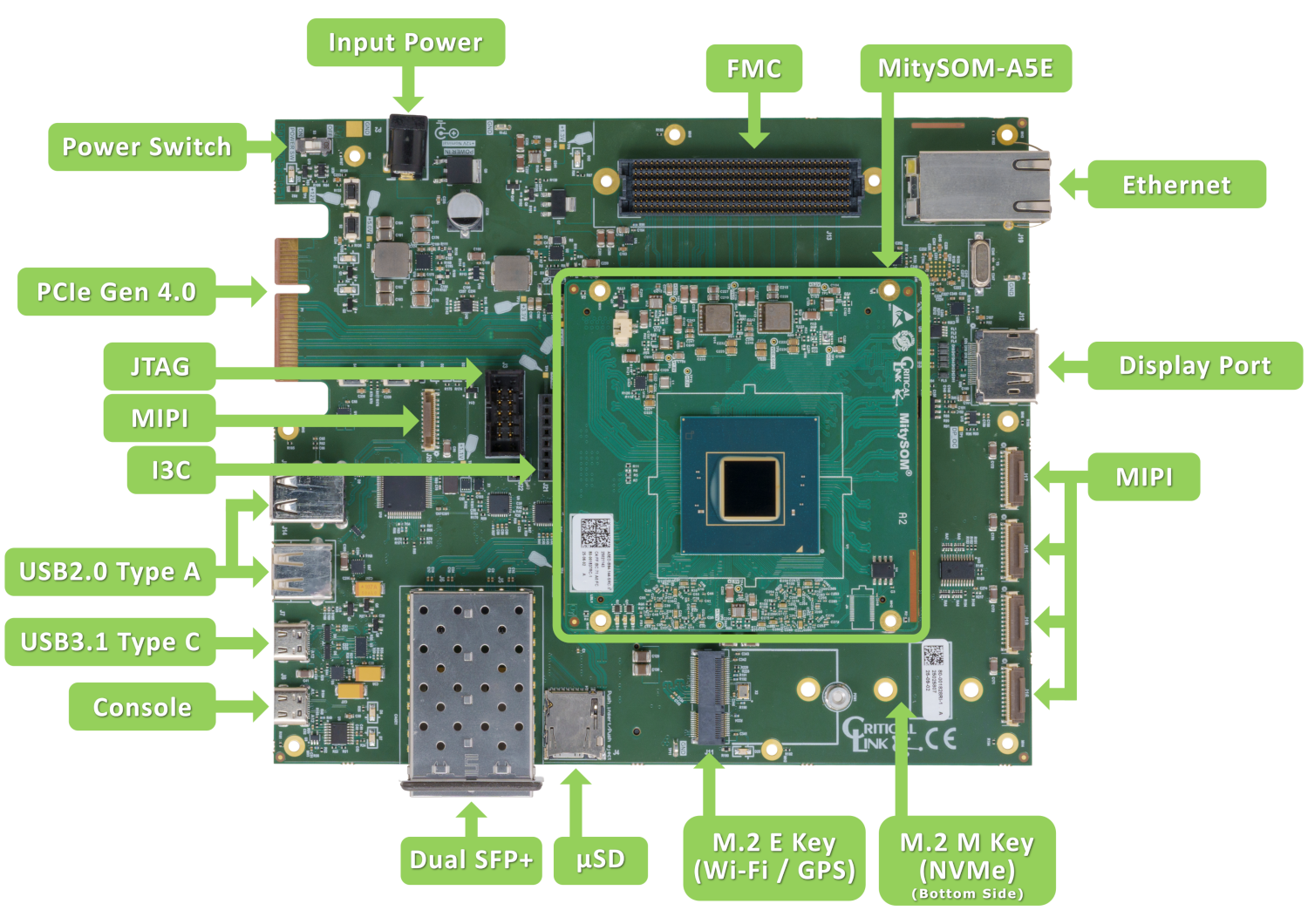

Interfaces	Features an array of interfaces such as DisplayPort, USB 3.1, Gigabit Ethernet, Dual SFP+, five x4 lane MIPI CSI camera inputs, PCIe 4.0, USB-C console interface, Micro-SD card, and LPC FMC expansion interface.
Memory	Up to 8 GB HPS FPGA shared LPDDR4 (32 bits wide, 10.6/14.9 GB/sec burst rate); Up to 8 GB FPGA LPDDR4 (32 bits wide, 10.6/14.9 GB/sec burst rate); 32 MB QSPI Configuration FLASH
Connectors	Dual 400-pin board-to-board connector
Switches & LEDs	Power switch, other toggle switches, and numerous LEDs
Latest Quartus Version Supported	24.2.0
