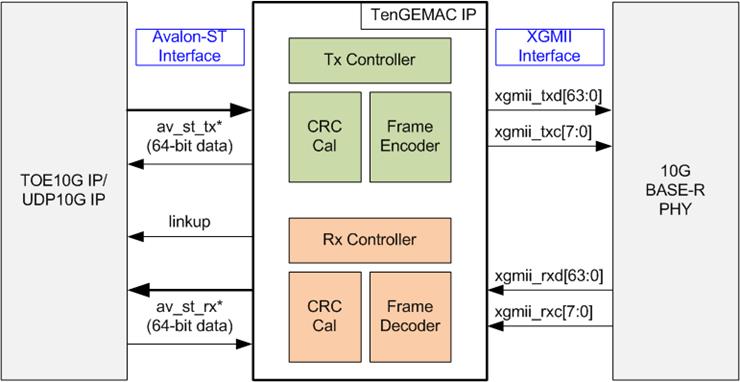

Design Gateway’s 10GbE MAC IP Core is a compact, cost-effective, and low-latency Ethernet MAC solution tailored for Altera FPGA platforms. Featuring full interface compatibility with Altera’s native MAC and supporting the Avalon-ST interface, it seamlessly integrates into existing systems while achieving best-in-class performance. With transmission latency as low as 19.2ns and reception latency of 44.8ns, it is ideal for real-time applications requiring deterministic Ethernet communication. Optimized for use with Design Gateway’s UDP10G-IP and TOE10G-IP, this MAC core minimizes FPGA resource usage without sacrificing throughput or reliability. Its streamlined, hardware-only design eliminates CPU dependency, enabling efficient and stable operation for aerospace, industrial, and high-frequency trading systems—all while keeping total system costs low.

View Partner Website

Partner Product Page

Contact Now

Contact DesignGateway Co., Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

64-bit Avalon-ST interface with full compatibility to Altera MAC
Low latency: Tx = 19.2 ns, Rx = 44.8 ns
Optimized for UDP10G-IP and TOE10G-IP with minimal FPGA resource usage
Ideal for real-time, cost-sensitive, and compact FPGA applications

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 GX FPGA, Cyclone® 10 GX FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	No
Design Examples Available	Yes
Demo	Yes
Compliance	No
Hardware Platforms Supported	Cyclone® 10 GX FPGA Development Kit
Latest Quartus Version Supported	23.1.0
Development Language	Encrypted VHDL
