CPU-less NVMe Host Controller IP core for PCIe Gen3 (NVMe IP)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

DesignGateway Co., Ltd.

Select

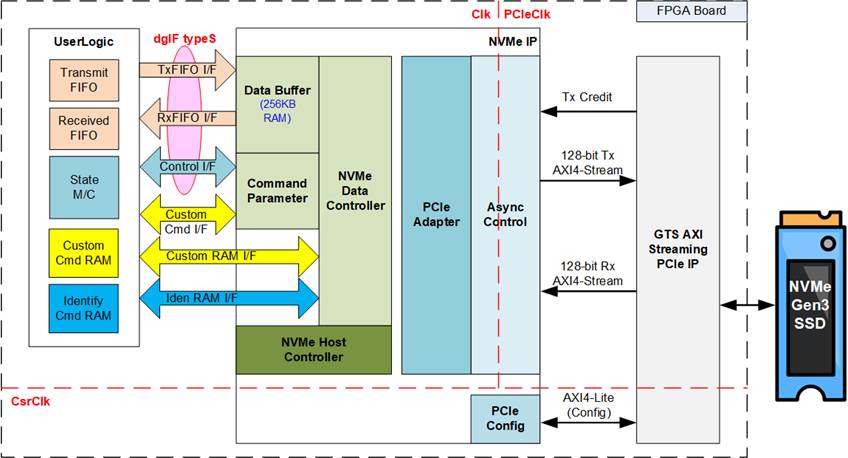

Design Gateway’s NVMe-IP core is a fully hardware-based NVMe™ Host Controller optimized for Altera FPGA platforms with PCIe Gen3 connectivity. By removing the need for embedded CPUs, external memory, or a software stack, this IP core significantly reduces system complexity while maintaining high-speed, low-latency performance. It is ideal for aerospace, defense, and medical applications that require stable and deterministic storage operation.

With full NVMe command processing in hardware and a 128-bit FIFO interface, the core supports sustained high-speed data transfer. Reference designs help accelerate development on supported Altera FPGA boards.

View Partner Website

Partner Product Page

Contact Now

Contact DesignGateway Co., Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Fully hardware-based NVMe Host Controller with no need for CPU, software, or external memory
Supports PCIe Gen3 x4 interface for high-speed NVMe SSD access
128-bit FIFO interface for simple data transfer
Rich expansion options available: RAID0, file system integration, and PCIe switch support
Reference designs available for Altera FPGA Development Kits

Offering Brief

Device Family	Arria® V GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Stratix® 10 GX FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	No
Design Examples Available	Yes
Demo	Yes
Compliance	No
Latest Quartus Version Supported	23.1.0
Development Language	Encrypted VHDL
