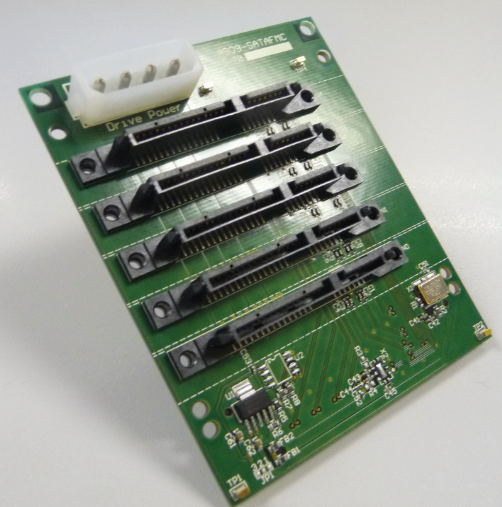

FMC SATA RAID Adapter Board (AB09-FMCRAID)

DesignGateway Co., Ltd.

Select

The AB09-FMCRAID adapter board is an ideal solution for application development, providing support for up to 10 SATA devices in RAID configurations. It is well-suited for industries such as aerospace, defense, medical, and measurement systems, enabling high-performance, high-capacity storage solutions. With its flexible and reliable design, it ensures seamless integration into a wide range of applications that require scalable and efficient storage, particularly for environments that demand robust data management and redundancy.

Key Features

  • Supports up to 10 SATA devices in RAID configurations for scalable, high-capacity storage.
  • Perfect for evaluation and development of Design Gateway’s SATA-IP core.
  • Designed for seamless integration with FPGA platforms for high-performance storage solutions.
  • Ideal for use in aerospace, defense, medical, and measurement systems.
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 SX SoC FPGA
Offering Status Production
Device OPN(s) on Board 10AS066N3F40E2SG
Form Factor HPC (High Pin Count) FMC
Power +12V ATX power supply
Interfaces HPC (High Pin Count) FMC, ten SATA interfaces
Memory NA
Connectors HPC (High Pin Count) FMC
Switches & LEDs Power Switch & Power LED
Latest Quartus Version Supported 23.1.0

AB09-FMCRAID adapter board 1pc

Ordering Information

Market Segment and Sub-Segments
