DI3CM-HCI controller MIPI I3C Basic v1.1.1 specifications with Host Controller Interface v1.1 specification

DCD-SEMI

Select

The DI3CM-HCI is a MIPI® I3C Host Controller designed to connect modern embedded systems with a new class of smart peripherals. It provides a robust, medium-speed control and utility interface for sensors, actuators, and companion controllers, seamlessly linking them with the application processor. As a next-generation alternative to legacy I²C and SPI buses, DI3CM-HCI delivers higher bandwidth, lower power consumption, and more efficient, feature-rich communication for advanced electronic designs.

The DI3CM-HCI is a high-performance MIPI® I3C Host Controller engineered to bring next-generation efficiency and intelligence to embedded systems. Designed as a modern replacement for legacy I²C and SPI interfaces, it enables significantly higher bandwidth, lower power consumption, and more reliable data transfer between devices.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Conforms to MIPI I3C Basic v1.1.1
  • General compliance to MIPI I3C HCI Specification 1.1
  • Up to 12.5 MHz clock frequency
  • I3C SDR communication support
  • I3C HDR-DDR communication support
  • Legacy I2C communication support
  • Dynamic address assignment (DAA) support
  • In-Band Interrupts and Hot-Join support
  • Common Command Codes (CCC) support
  • Configurable size of memory buffers
  • DMA handshake interface
  • Power efficient design with optional clock gating
Expand Close

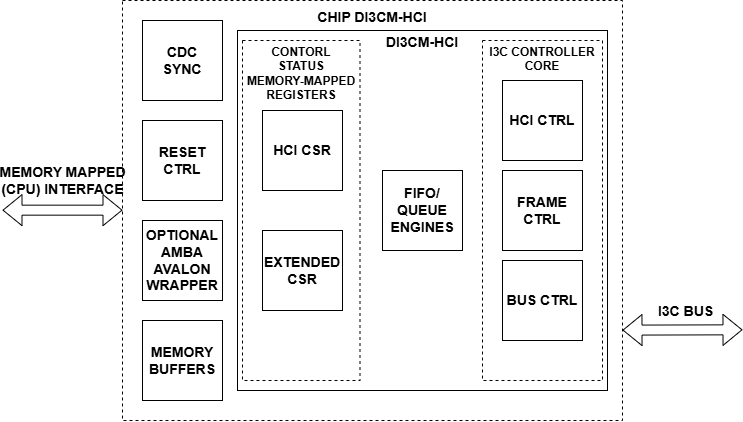

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Arria® V SX FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, Cyclone® III FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE FPGA, Cyclone® V ST FPGA, Cyclone® V SX FPGA, MAX® 10 FPGA, MAX® V CPLD, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Latest Quartus Version Supported 25.1.1
Development Language Encrypted Verilog, Verilog

HDL Source Code

Testbench environment - automatic simulation macros, tests with reference responses

Synthesis scripts

Technical documentation

12 months of technical support

Ordering Information

DI3CM-HCI

from Direct

Get Pricing and Availability

Documentation & Resources

design hub icon Datasheet
