D68000-CPU32+ - 16/32-bit Microprocessor CPU32+ (68020)

DCD-SEMI

Select

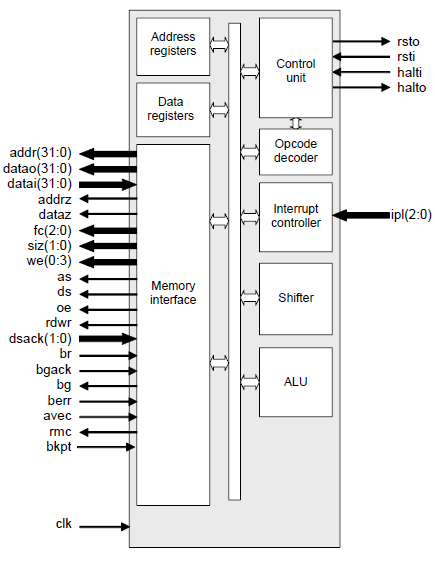

The D68000-CPU32+ soft core is binary-compatible with the industry standard 68000’s CPU32+ version of the 32-bit microcontroller. The D68000-CPU32+ has a 32-bit data bus and a 32-bit address data bus. It is code compatible with the 68000’s CPU32+ (version of MC68020). The D68000-CPU32+ has an improved instruction set, which allows program execution with higher performance than the standard 68000 core. It contains a built-in DoCD-BDM debugger interface. The D68000-CPU32+ is delivered with a fully automated test bench and a complete set of tests, allowing easy package validation at each stage of the SoC design flow.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Software compatible with industry standard 68000’s CPU32+ (68020 version)
  • DoCD-BDM on-chip debugger as in CPU32+
  • VBR register
  • 32-bit data and address registers
  • 16 addressing modes
  • 5 data types supported: bits, BCD, bytes, words and long words
  • Arithmetic Logic Unit includes: 8,16,32-bit arithmetic & logical operations, 16×16, 32×32 bit signed and unsigned multiplication, 32/16, 32/32, 64/32 bit signed and unsigned division, Boolean operations
  • Interrupt controller: 7 priority levels interrupt controller, Unlimited number of virtual interrupt sources, Vectored and auto-vectored modes, Format $0, $2, $C exceptions support as in CPU32+
  • Memory interface includes: Up to 4 GB of address space, 32-bit data bus, Asynchronous bus control
  • M6800 family synchronous interface
  • 3- and 2- wire bus arbitration
  • Supervisor and user modes
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Arria® V SX FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, Cyclone® III FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE FPGA, Cyclone® V ST FPGA, Cyclone® V SX FPGA, MAX® 10 FPGA, MAX® V CPLD, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Latest Quartus Version Supported 25.1.1
Development Language Encrypted VHDL, VHDL

HDL Source Code

Testbench environment - automatic simulation macros, tests with reference responses

Synthesis scripts

Technical documentation

12 months of technical support

Ordering Information

D68000-CPU32+

from Direct

Get Pricing and Availability

Documentation & Resources

design hub icon Datasheet
