IntelliProp NVMe-to-NVMe Bridge (IPC-NV171A-BR)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

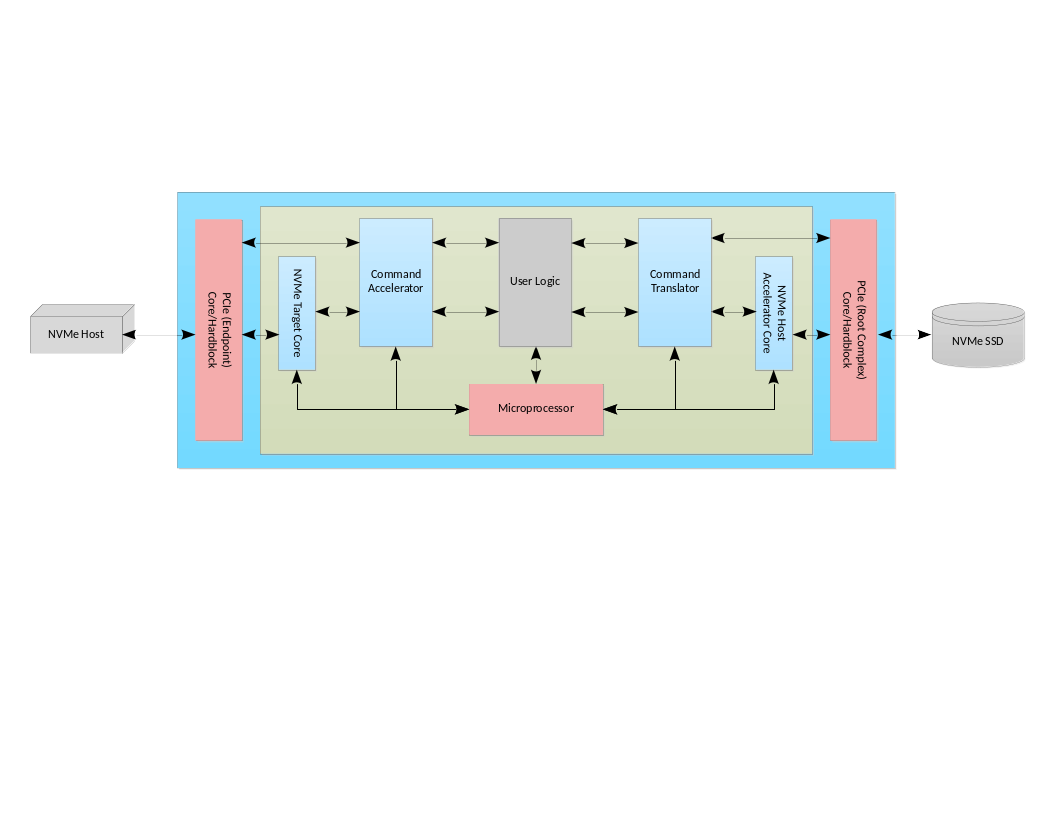

The IntelliProp NVMe-to-NVMe Bridge IP Core combines our high-performance NVMe Host Accelerator Core and NVMe Target Core into a single, integrated architecture. This combination creates a powerful, transparent, and non-disruptive NVMe Protocol Bridge capable of sitting directly on the PCIe bus, linking a host system to one or more NVMe storage devices. Its core utility lies in its ability to intercept and modify command submissions, completion notifications, and data transmissions in real-time.

Key Differentiator: Store and Forward Processing The core leverages full Store and Forward buffering on data payloads. This is essential as it ensures that the entire block of data is available for processing before it is committed to the final destination. This capability, combined with the unique, dedicated "Sandbox" area, provides a secure and flexible space for customers to implement their custom RTL and firmware, enabling advanced in-line processi...

This versatile IP is ideally suited for high-value applications in demanding markets including: Computational Storage Drives (CSD): Directly enabling data-in-motion services such as encryption, compression/deduplication, or LBA remapping directly on the device with minimal host overhead.

Storage Aggregation and Expansion: Connecting and managing multiple NVMe SSDs in a unified fabric for high-capacity, high-density storage solutions.

High-Performance Compute (HPC) & Data Center: Accelerating data transfer between processing units and storage, building high-speed storage networks, and creating specialized storage appliances.

High-Speed Data Recording: Enabling reliable, real-time data logging systems requiring integrity checks and guaranteed write completion.

View Partner Website

Contact Now

Contact

LeadSource

ASAP Account ID

Record Type Name

Key Features

Broad Compatibility: Leverages the robust PCIe Hard IP on Agilex™, Arria® 10, and other Altera FPGA families.
Computational Storage Ready: Ideal for offloading complex data functions to the FPGA fabric.
Host Transparency: Appears as a standard NVMe drive to the Host, requiring no change to the host's operating system or drivers.
High Performance: Fully compliant with NVMe 2.0 and PCIe Gen5 standards, supporting sustained, high-throughput data processing on the highest-end devices.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Stratix® 10 GX FPGA, Stratix® 10 DX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Stratix® 10 SX SoC FPGA, Stratix® 10 AX SoC FPGA, Arria® 10 GT FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	No
Latest Quartus Version Supported	25.3.0
Development Language	Encrypted Verilog, Encrypted VHDL, Verilog, VHDL
