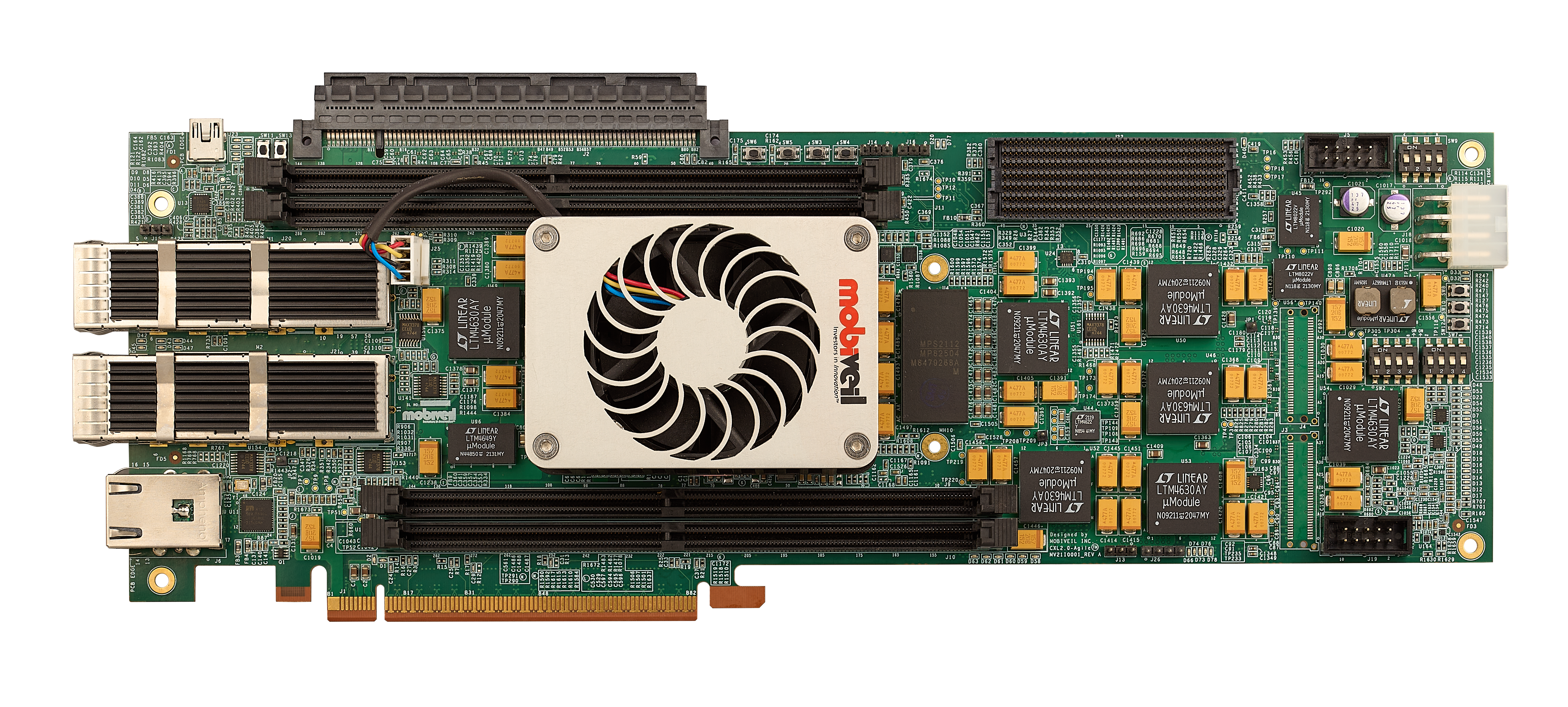

High-performance PCIe Gen5 & NVMe 1.4 compliant Ramdisk platform, using DDR4 storage on Agilex® 7 FPGA for next-gen SSD emulation and benchmarking. The Mobiveil Ramdisk-Gen5™ is a PCIe Gen5 x8 and NVMe 1.4 compliant SSD tester that emulates next-generation Gen5 NVMe SSDs without NAND flash performance limitations. Built on the Agilex® 7 FPGA, it integrates Mobiveil’s configurable UNEX™ NVMe controller and UMMC™ DDR4 controller, delivering up to 3200 MT/s DDR4 ECC memory performance. Designed for data center product development, storage server validation, and NVMe-over-Fabrics applications, it supports dual QSFP28 100G Ethernet connectivity, multiple PCIe Gen5 lanes, and a full-length, full-height PCIe form factor.

View Partner Website

Partner Product Page

Contact Now

Contact Mobiveil Inc.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Datacenter product development
Business clients
Storage server product development
NVMe over Fabrics
Mobiveil’s RAMDISK-Gen5 is a PCIe Gen5 and 1.4 NVMe compliant Ramdisk that emulates the next generation NVMe Gen5 SSDs with high performance.

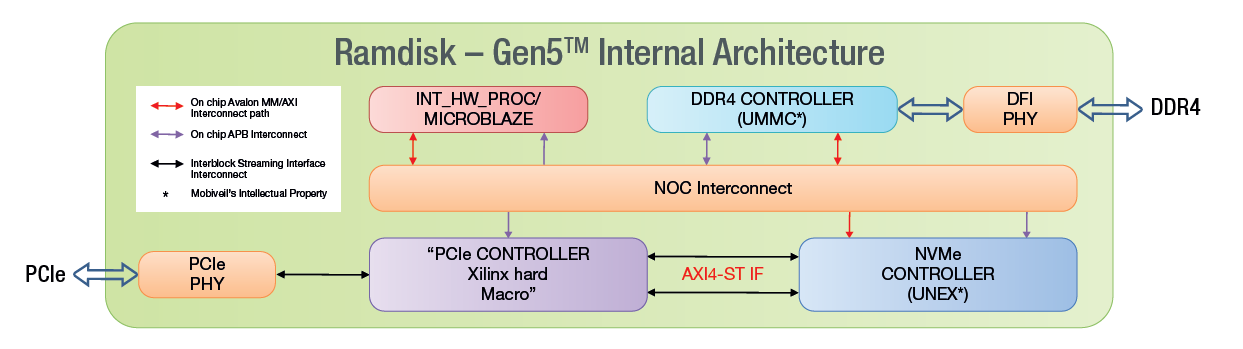

With high-performance hardware based on Agilex FPGA and with Mobiveil’s configurable IPs 1.4 compliant NVMe controller (UNEX) and DDR4 controller (UMMC), it offers a perfect Ramdisk solution for performance benchmarking.
Ramdisk – Gen5 uses DDR4 as the storage and hence does not have any NAND flash specific performance limitation

Offering Brief

Device Family	Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series
Offering Status	Production
Device OPN(s) on Board	AGFA012R24B1E1V;AGIB027R31B2E2V
Form Factor	312mm x 111mm
Power	Less than 75W
Interfaces	PCIe Gen5 x8 at the edge fingers(256 GT/s) FMC Connector (8 transceivers, 58 GPIOs) PCIe Gen5 x4 at the edge connector(128 GT/s)
Memory	16GB of DDR4 SODIMM, 3200MT/s with ECC Support
Connectors	FMC Connector (8 transceivers, 58 GPIOs)
Switches & LEDs	Yes
Latest Quartus Version Supported	24.3.1
