HyperRAM Controller (Silicon Proven IP for Altera Devices)

Mobiveil Inc.

Select

HyperRAM™ controller IP for Winbond devices (x8/x16) with AXI memory-mapped access, APB control, RWDS strobes, linear/wrap/hybrid bursts, low-power modes, and device clocks up to 250 MHz for high bandwidth, low-pin designs. Technology-independent, system-validated RTL that enables smooth integration of Winbond HyperRAM into new-gen SoCs. Supports 8-bit and 16-bit data buses, RWDS read/write data strobes, AXI4 memory-mapped interface for data, APB for control, and linear, wrap, and hybrid bursts. Power features (deep power-down, hybrid sleep) are exposed via control/status registers. Delivered with SV/UVM testbench, behavioral PHY model, and a validated FPGA PHY reference design for rapid bring-up.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Compatible with W958D6NW, W958D6NKY, W956x8MBYA, W955D8MBYA HyperRAMTM devices from Winbond.
  • 16 bit data bus – DQ[15:0] support for W958D6NW, W958D6NKY devices
  • 8 bit data bus – DQ[7:0] support for W956x8MBYA/ W955D8MBYA devices
  • Read-Write data strobe RWDS [1:0]
  • Memory Clock rate upto 250 MHz
  • AXI memory mapped system interface for memory access.
  • APB port for control registers accesses.
  • Supports Linear Burst, Hybrid burst and Wrap burst
  • Low power features like deep power down, Hybrid sleep mode are handled by the controller through a CSR register.
Expand Close

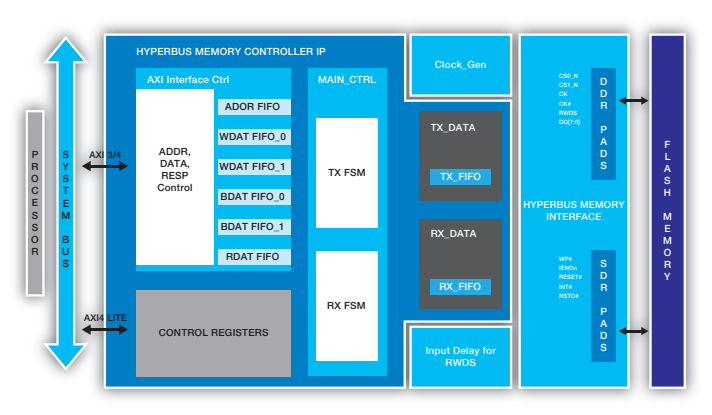

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® II GX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Arria® V SX FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, Cyclone® III FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE FPGA, Cyclone® V ST FPGA, Cyclone® V SX FPGA, MAX® 10 FPGA, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Latest Quartus Version Supported 24.3.1
Development Language Encrypted Verilog, Verilog

RTL Code

System Verilog/UVM based Testbench

Test cases

Behavioral PHY Model

Validated FPGA PHY reference design

Data Sheet

Verification Plan

Ordering Information

NA

from Direct

Get Pricing and Availability
