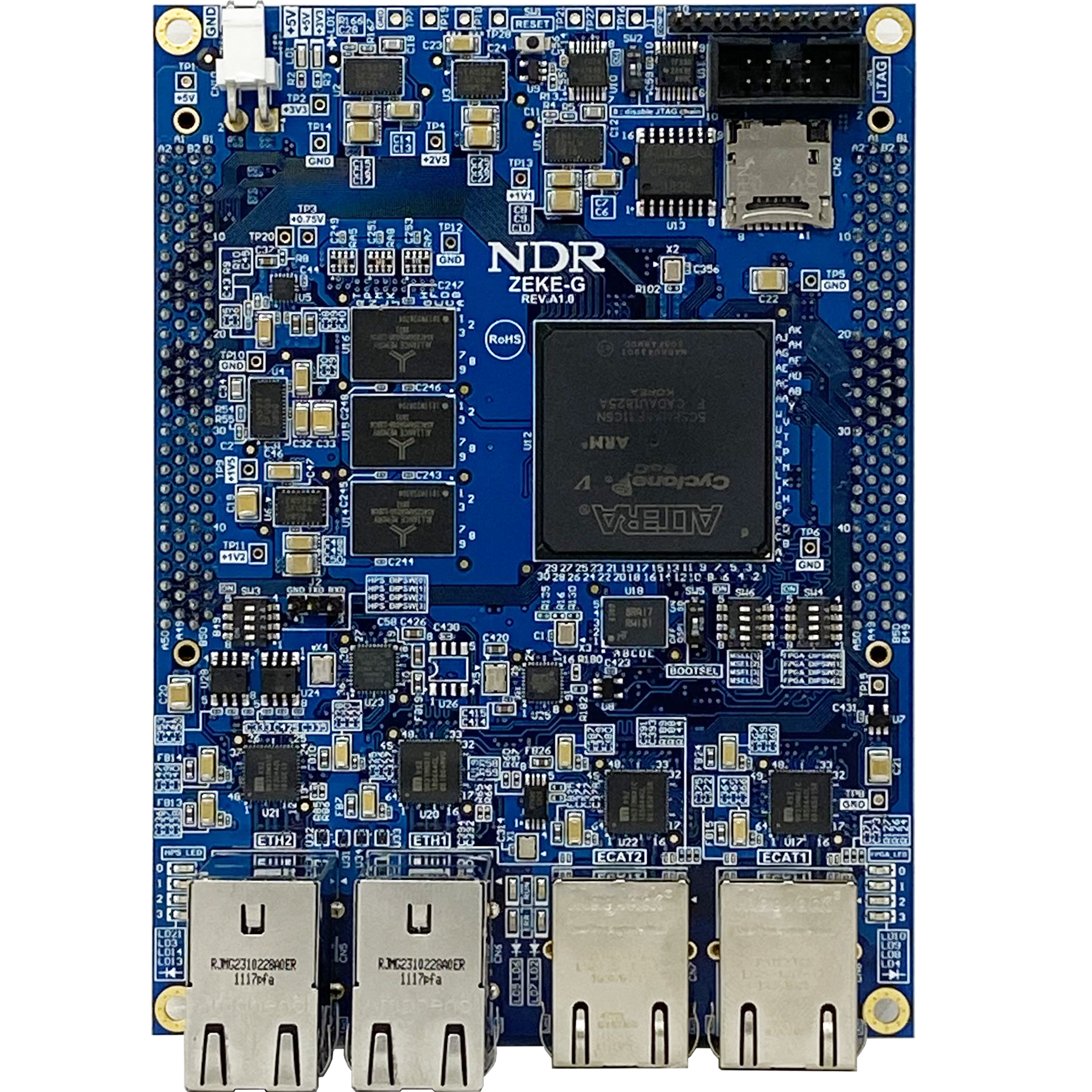

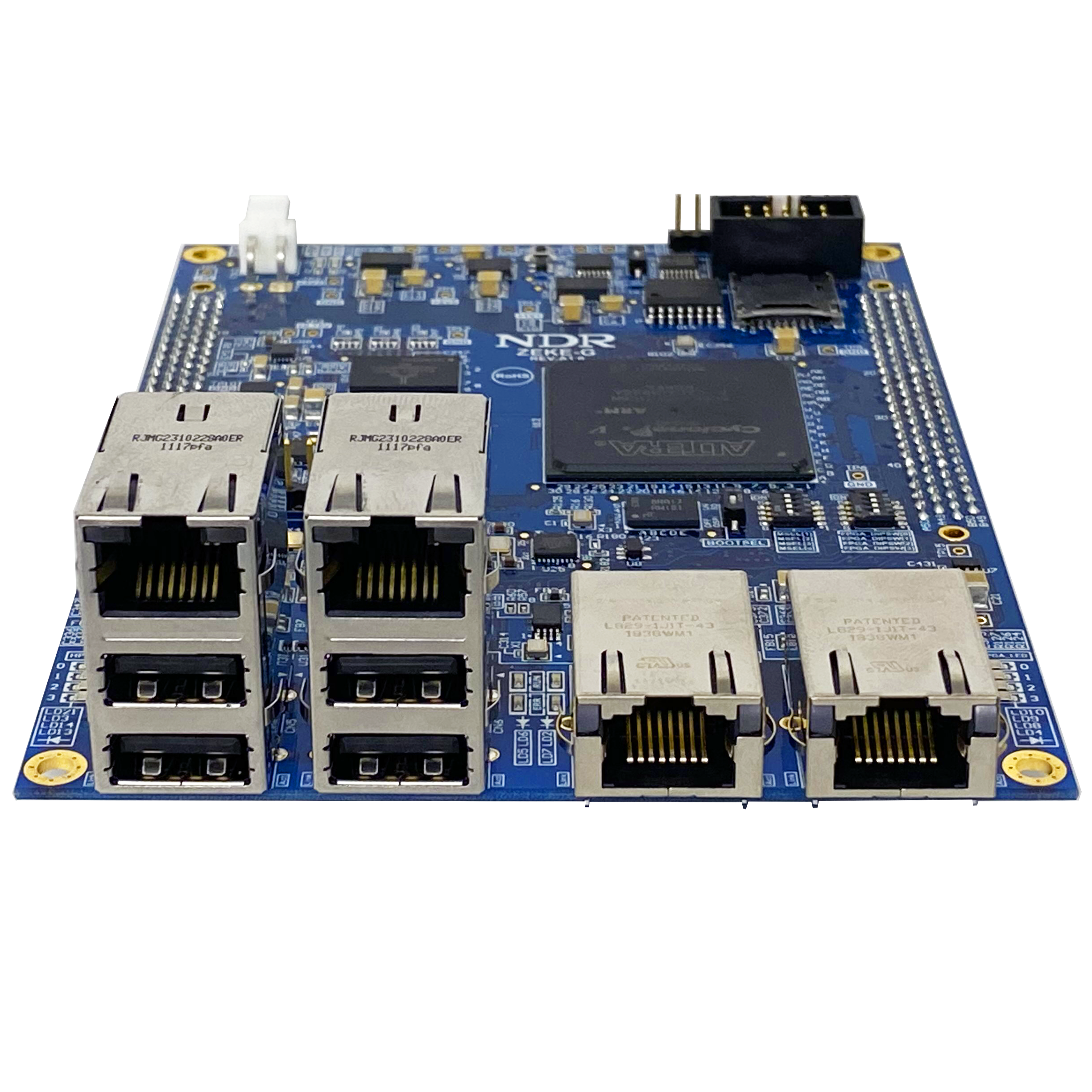

N-EMB-110 ZEKE-G EtherCAT Master_Slave

NDR Co.,LTD.

Select

The N-EMB-110 Platform is a platform primarily developed for the industrial Ethernet field. Equipped with a high-performance CPU board featuring a dual-core Arm Cortex A9 @925MHz, it allows for the use of operating systems such as Linux in SMP mode. It is the only board where both Gigabit Ethernet ports and USB of the Arm processor are usable. Since the FPGA is equipped with two 10/100/1000 PHYs, it is possible to use Altera's TSE MAC, etc.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • The N-EMB-110 platform is a high-performance product specialized for the industrial Ethernet field.
  • Supports both Hardware and Software EtherCAT Master and Slave Functions, Enabling Diverse System Configurations
  • Equipped with Multiple Ethernet Ports, GPIO, and Memory Interfaces for Easy Connection to Various Industrial Devices
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Cyclone® V SE FPGA
Offering Status Sampling
Device OPN(s) on Board 5CSEMA5F31C6N
Form Factor -
Power Input Voltage: 5.0V DC
Interfaces HPS (Arm) Ethernet: 2 x Gigabit Ethernet (10/100/1000 Mbps) ports
FPGA Ethernet: 2 x Gigabit Ethernet (10/100/1000 Mbps) ports
USB: Fully supported
GPIO: Total 168 channels via expansion connectors
Memory RAM: DDR3 256M x 32-bit with 8-bit ECC, 400MHz
Connectors Expansion: 2 x 100-pin 1.27mm pitch staggered connectors
Switches & LEDs User: 8 x Green LEDs (4 for HPS, 4 for FPGA) / DIP Switches: 3 x 4-position DIP switches
Latest Quartus Version Supported 17.1.0

Schematics

BOM

User's Manual

FPGA Sample Project

Power Cable

Ordering Information

N-EMB-110

from NDR Official Store

Order Now
