N-EMB-500 RUFE ASSP BOARD

NDR Co.,LTD.

Select

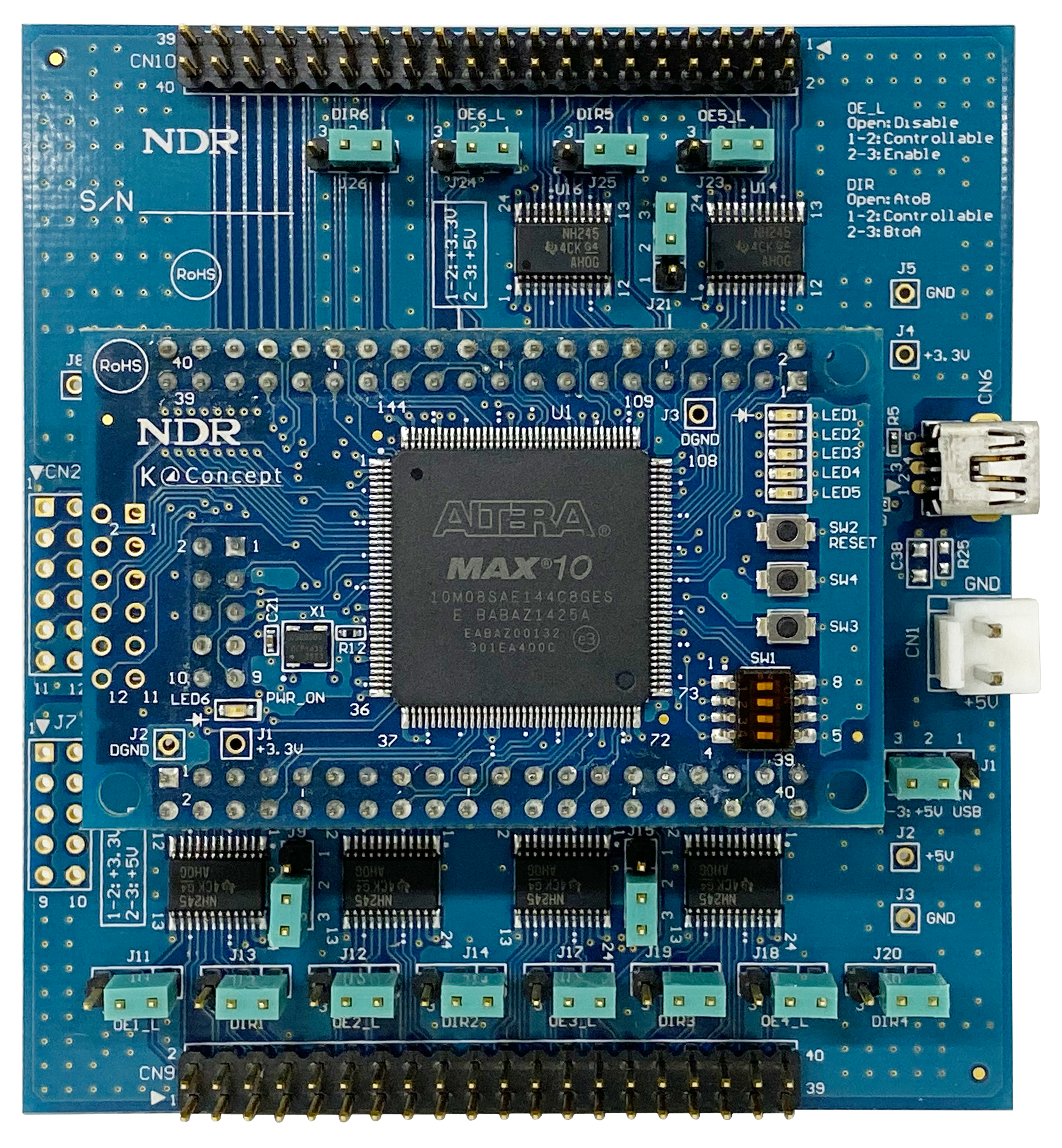

The N-EMB-500 Platform is an evaluation platform for the development of our own ASSP and as a countermeasure for discontinued ICs. Equipped with MAX® 10 10M08SA: Operable with a single 3.3V power supply and has a built-in configuration ROM, allowing for single-chip operation. Supports dual boot and can also implement Nios II. It is also possible to manage the board's power sequence and power management using the analog functions of the MAX® 10.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Available in Bus Switch and 5V Tolerant Models, Featuring Embedded USB Blaster II.
  • Serves as an Evaluation Platform for In-House ASSP Development and End-of-Life IC Solutions.
  • Equipped with Multiple I/O Interfaces to Support Connection with Various Peripherals.
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family MAX® 10 FPGA
Offering Status Production
Device OPN(s) on Board 10M08SAE144C8G
Form Factor -
Power Base Board Input: 5.0V DC / Core Board Supply: 3.3V DC
Interfaces GPIO: Total 72 channels available via expansion connectors.
Type A Base Board: Features 3.3V/5V tolerant standard buffers (SN74LVC8T245PW).
Includes 48 buffered channels and 24 direct-FPGA channels.
Type B Base Board: Features 3.3V/5V tolerant FET
Memory -
Connectors Expansion: 2 x 40-pin 2.54mm pitch connectors
Switches & LEDs Core Board: 1 x Green Power LED, 5 x User-programmable LEDs. / DIP Switches: 1 x 4-position DIP switch
Latest Quartus Version Supported 17.1.0

Schematics

BOM

User's Manual

FPGA Sample Project

Power Cable

Ordering Information

N-EMB-500-A/-B

from NDR Official Store(TYPE-A)

Order Now

N-EMB-500-A/-B

from NDR Official Store(TYPE-B)

Order Now
