N-EMB-120 OSCAR EtherCAT Master_Slave

NDR Co.,LTD.

Select

The N-EMB-120 Platform is a platform primarily developed for the industrial Ethernet field. Equipped with MAX® 10 10M50: With sufficient RAM capacity and FLASH usable as configuration ROM, a custom CPU can be implemented on a single chip by using Nios II. Equipped with external SDRAM and QSPI Flash: Expansion is also possible according to the software application capacity. Since the FPGA is equipped with two 10/100 PHYs, network-enabled devices can be easily realized by using Altera's TSE MAC, etc.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Supports EtherCAT Master/Slave Functionality for Simplified Industrial Network Construction.
  • Equipped with MAX® 10 FPGA, Allowing for Customer-Specific Customization
  • Features Multiple Ethernet Ports and I/O Interfaces for Versatile Industrial Device Connectivity.
Expand Close

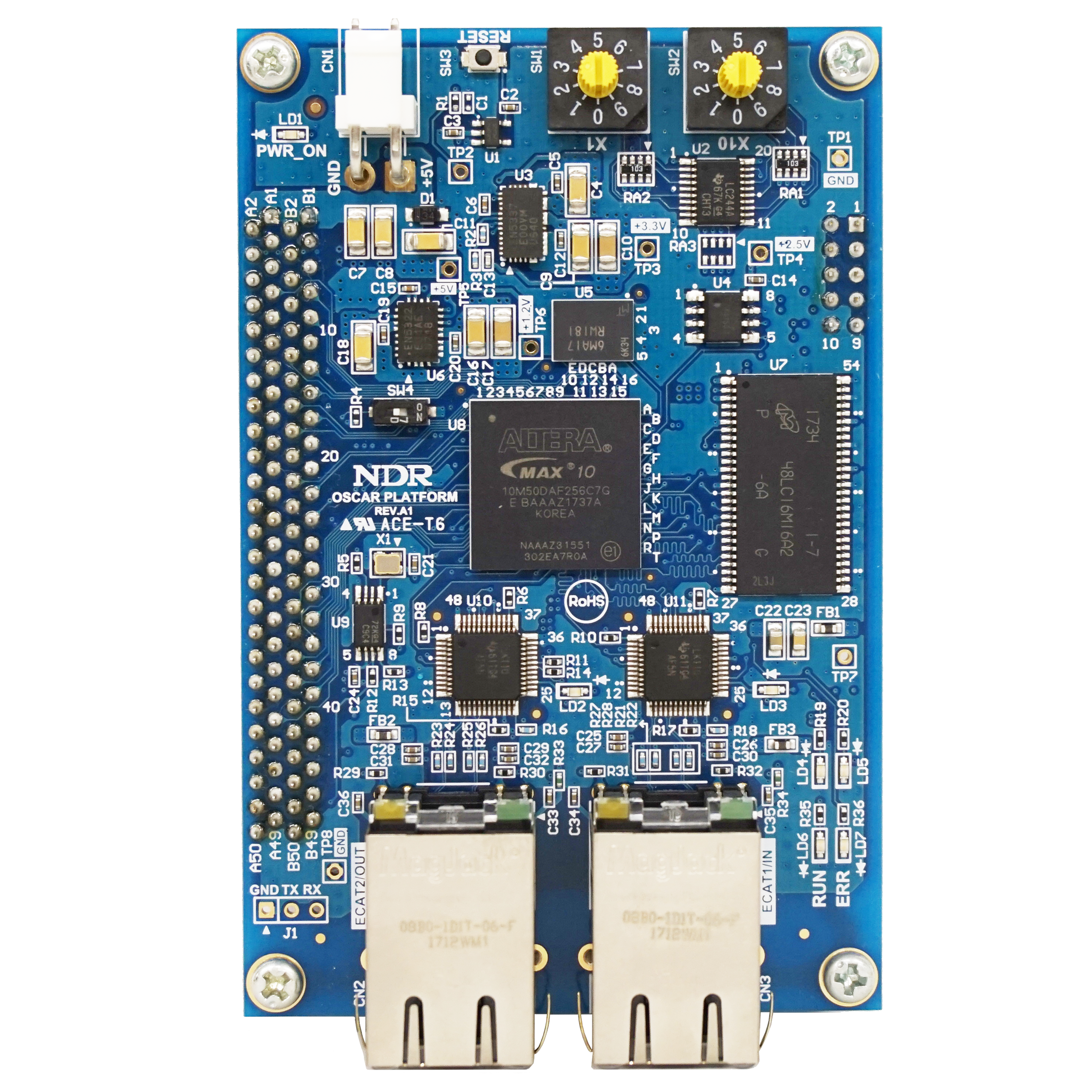

Keyfeatures main image

Offering Brief

Offering Brief

Device Family MAX® 10 FPGA
Offering Status Production
Device OPN(s) on Board 10M50DAF256C7G
Form Factor -
Power Input Voltage: 5.0V DC
Interfaces Fast Ethernet: 2 x 10/100 Mbps Ethernet ports on the FPGA side
GPIO: 81 channels available for the FPGA section via expansion connectors
Memory SDRAM: 32 MByte (x16-bit), Max 167MHz
Connectors Expansion: 2 x 100-pin 1.27mm pitch staggered connectors
Switches & LEDs User: 2 x Green LEDs / Rotary Switches: 2 x Decimal rotary switches
Latest Quartus Version Supported 17.1.0

Schematics

BOM

User's Manual

FPGA Sample Project

Power Cable

Ordering Information

N-EMB-120
