AV153 VPX Board

reflex ces

Select

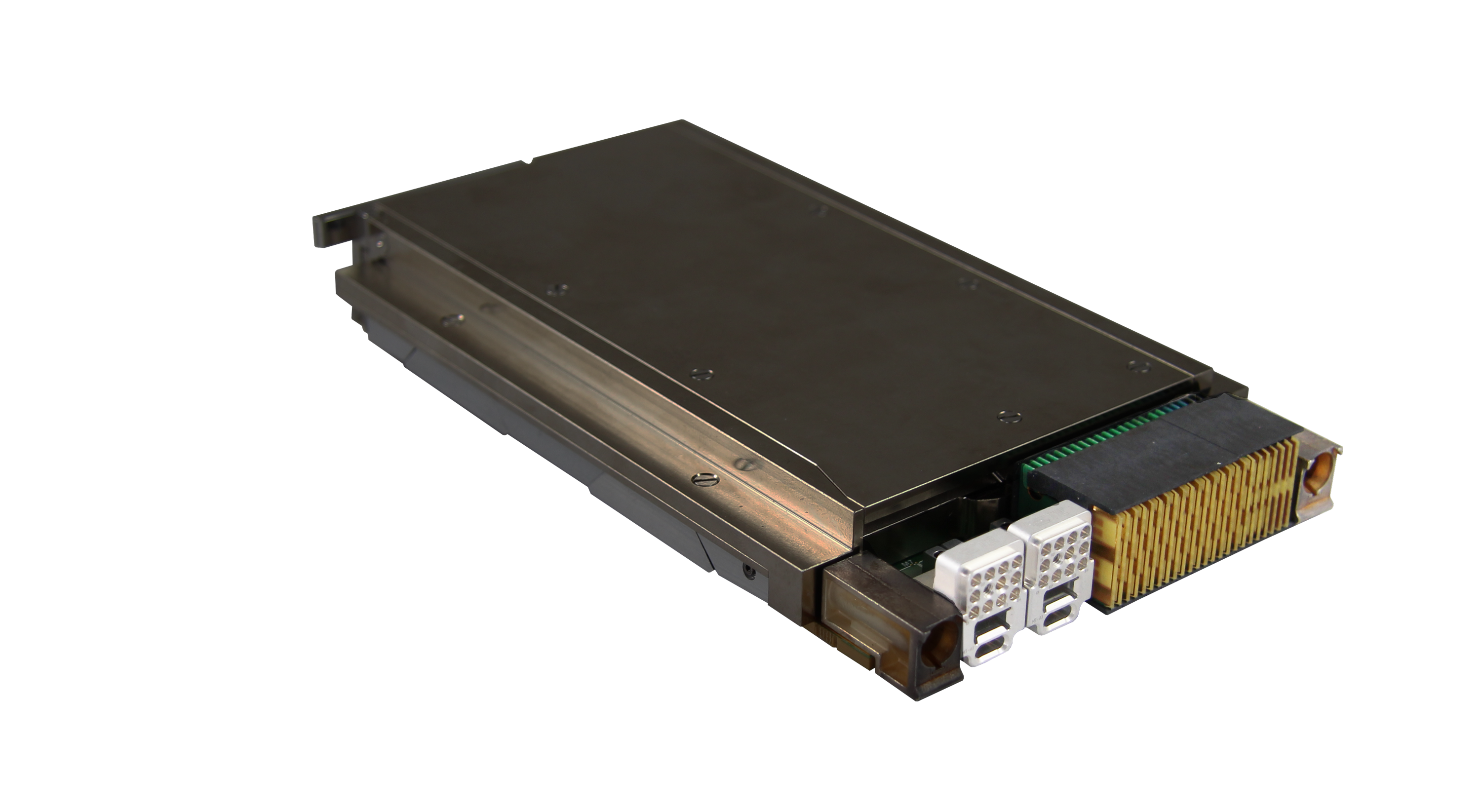

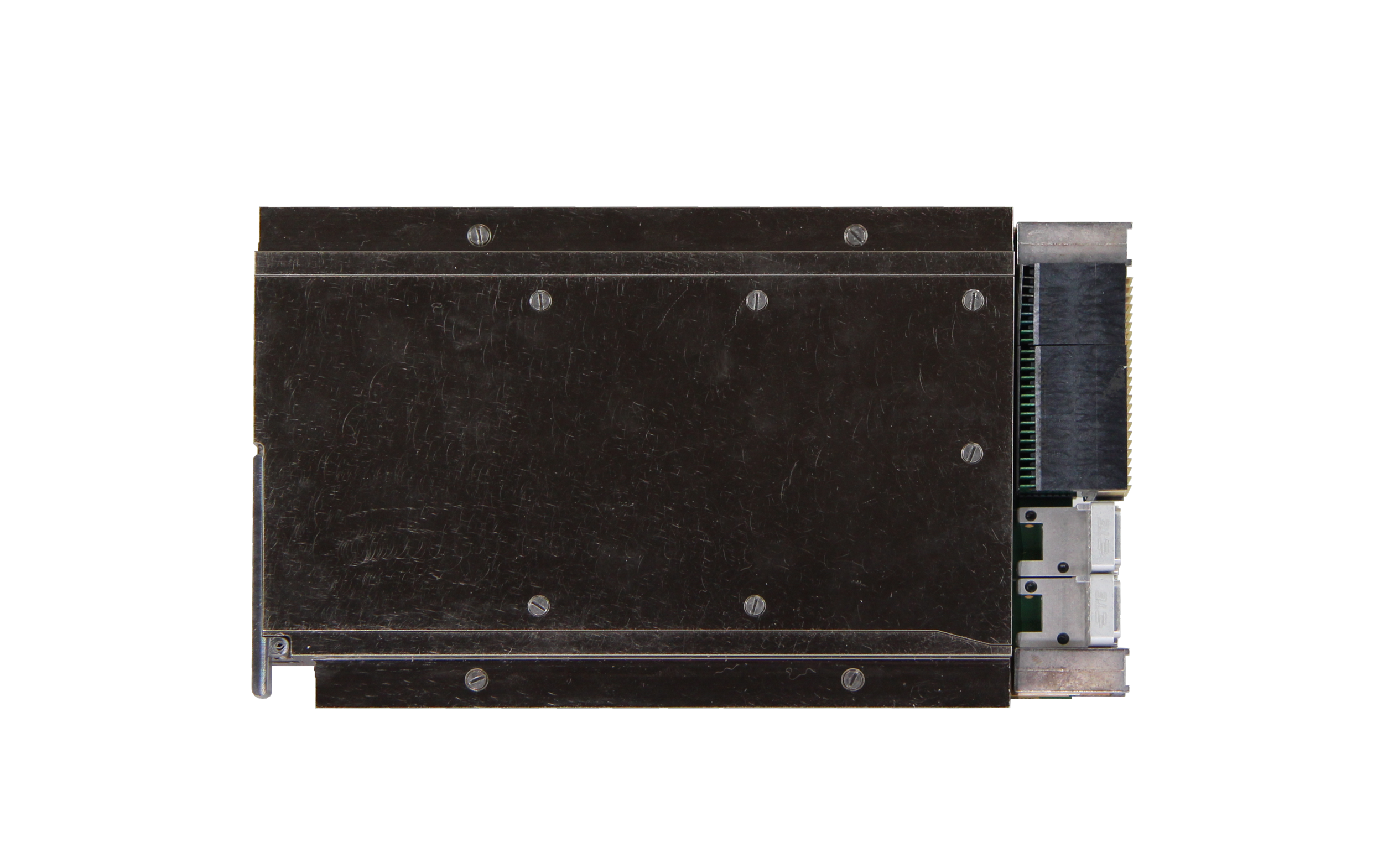

The AV153 is a high-performance 3U VPX board built on the rugged VITA47 ECC3 standard, designed for Ultra Wideband Radar, ECM, and SIGINT systems.

It integrates 8x 10-bit ADCs and DACs, each running up to 64 Gsps with up to 20 GHz analog bandwidth, delivering outstanding signal conversion performance for demanding applications.

Fully SOSA-aligned, the AV153 supports PCIe, Gigabit Ethernet, and user-defined I/Os for maximum interoperability across radar and electronic warfare systems.

Powered by an Altera® Agilex™ 9 SoC FPGA with Direct-RF technology, it combines advanced signal processing and direct RF interfacing for optimal efficiency.

Ideal for Phased-Array Radar T/R modules, Electronic Warfare (ESM/ECM), Broadband Communication, Target Radar Simulation, and Airborne embedded systems.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Direct-RF SOC altera® Agilex™ 9 AGRW027
  • 8 channels 64 Gsps 10-bit ADC
  • 8 channels 64 Gsps 10-bit DAC
  • Analog bandwidth up to 20 GHz
  • Two Ultra Low jitter clock synthesizers
  • External or internal sampling clock reference
  • 2x 64-bit 8GBytes DDR4 2666 SDRAM (Fabric)
  • 1x 32-bit 4GBytes DDR4 2666 SDRAM (HPS)
  • Conduction Cooled
  • SOSA-aligned
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex™ 9 FPGA Direct RF-Series
Offering Status Production
Device OPN(s) on Board AGRW027R28A2I2V
Form Factor 3U VPX Conduction cooled Vita 48.2, pitch 1.0”
Power +12V: 14 A max (170W) +3.3VAUX: 0.6A max (2W)
Interfaces VPX interfaces
P1:
Data plane: one fat pipe DP01 supporting
100GBASE-KR4
Data plane: one ultra-thin pipe DPutp01
supporting 10GBASE-KR
Control plane: one ultra-thin pipe CPutp01
supporting 1000BASE-KX
Expansion plane: one fat-pipe supporting PCIE
GEN
Memory Two banks 64-bit 8GBytes DDR4 2666 SDRAM (fabric) One bank 32-bit 4GBytes DDR4 2666 SDRAM (HPS) One 2 Gbit QSPI FLASH memory eMMC storage (HPS) Operating Temperature ECC3, -40°C to 70°C
Connectors Analog Input/Output Connectors: Vita 67.3 NanoRF / Clock Connectors: Vita 67.3 NanoRF / VPX interface connector Vita 67.3C Aperture H
Switches & LEDs /
Latest Quartus Version Supported 24.2.1

FPGA example design

HPS example design

SW API and examples, Windows 10 64-bits / Linux 64-bits

User manuals

Quick start guide

Ordering Information

AV153

from Direct

Order Now
