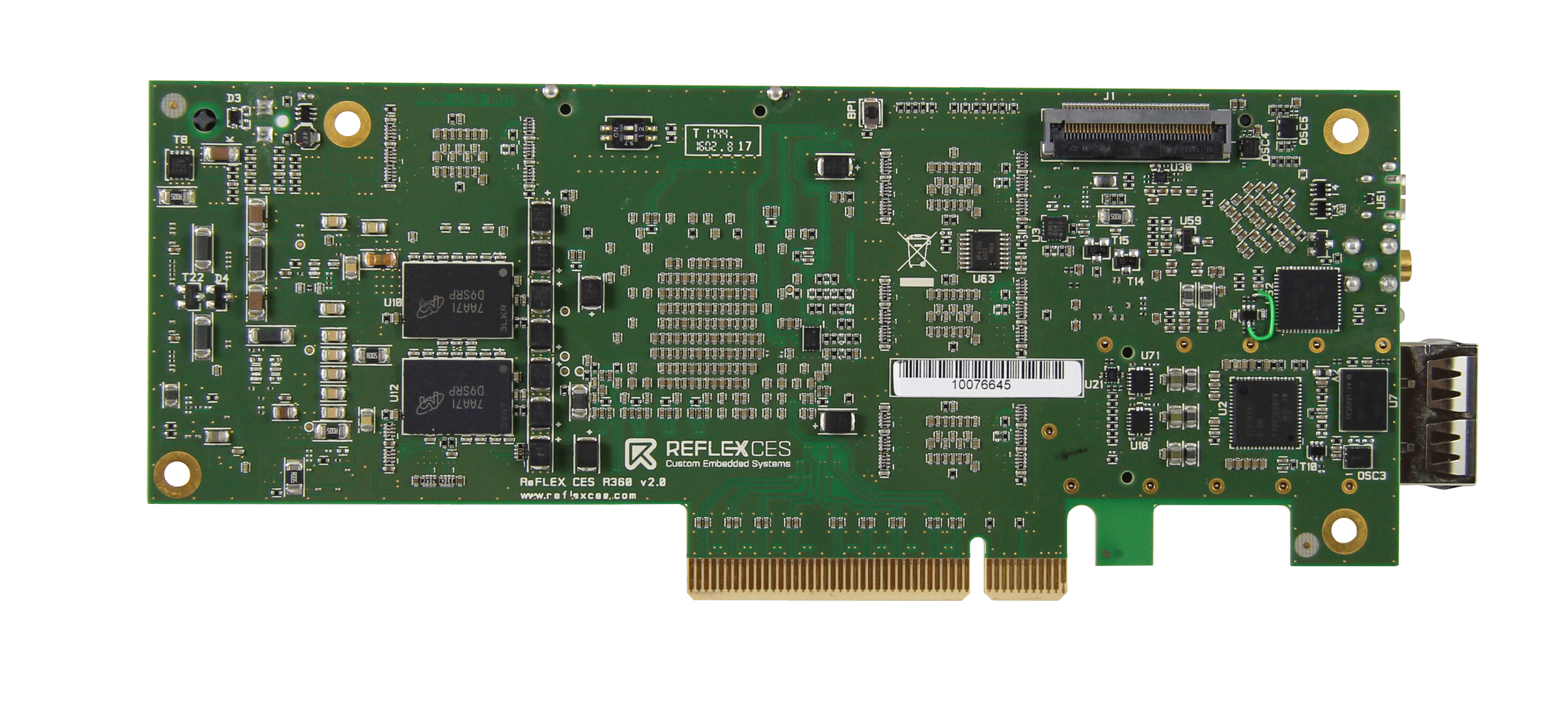

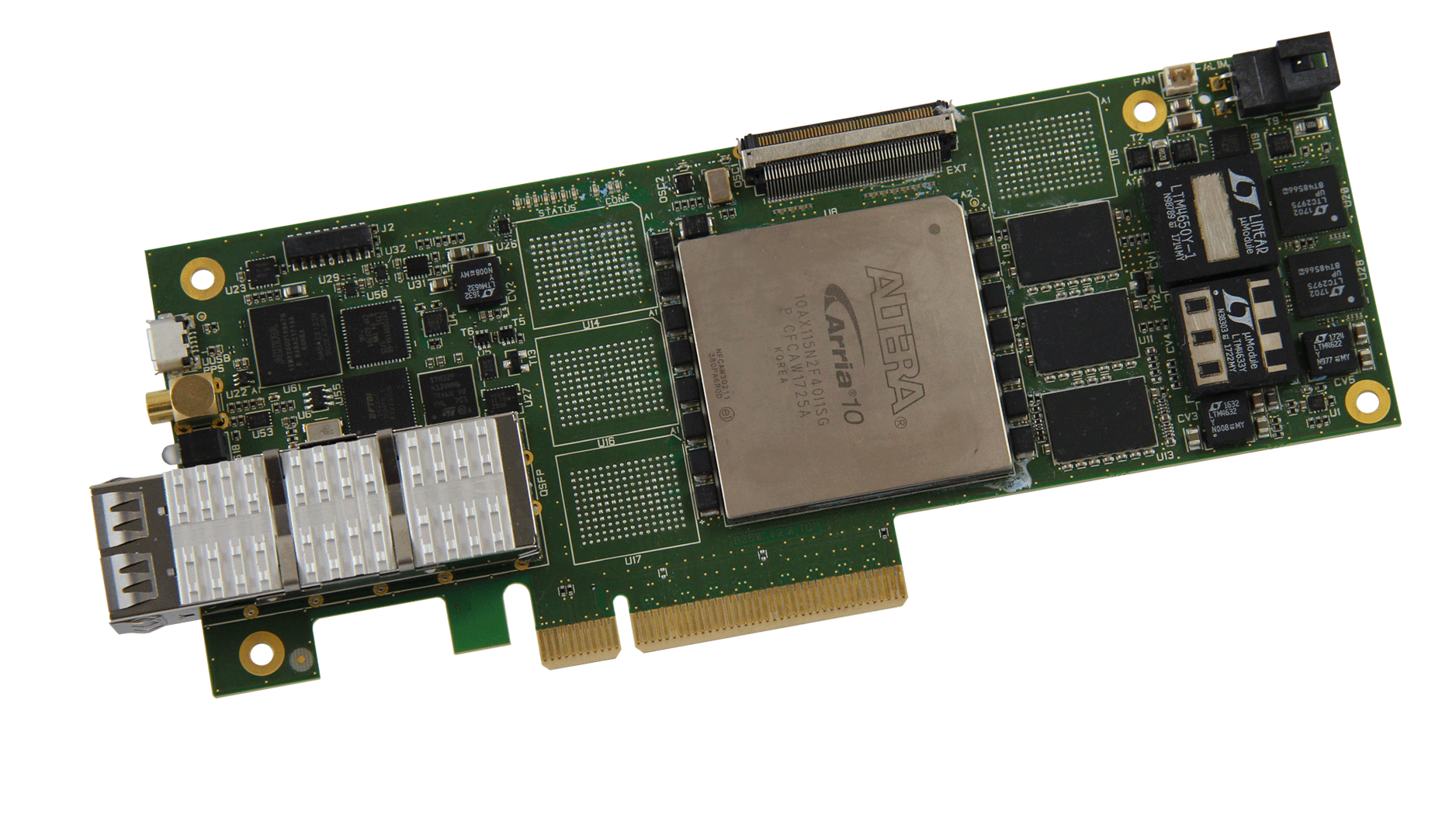

Low Profile Arria® 10 GX XpressGXA10-LP1151B PCIe Board

reflex ces

Select

This low-profile PCIe board with an Arria® 10 FPGA is optimized for applications requiring high bandwidth and high-speed connectivity. Unlike other PCIe FPGA boards, it features QSFP+ interfaces for up to 100G data exchange, making it ideal for network, telecom, and signal processing applications. Its compact size and optimized power consumption guarantee easy integration into existing infrastructures without compromising performance.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Low-profile PCIe board using Intel® Arria® 10 GX 1150 KLE
  • Single slot passive cooling for servers
  • Designed for fog computing and ultra low latency applications
  • PCIe Gen3 x8 interface
  • 8 GB on board DDR4 (x 72bit)
  • QSFP+ cage 10/40 GbE ports
  • Board Management Controller (BMC)
  • 10 transceiver expansion port
  • 10 GPIO expansion port
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 GX FPGA
Offering Status Production
Device OPN(s) on Board 10AX115N2F40I1SG
Form Factor PCIe
Power External auxiliary connector (12V) // Max 80W // Single slot passive heat-sink
Interfaces PCIe Gen3 x8 // 10GbE / 40GbE Ethernet // SPI // I²C
Memory 1 bank on board 8GB DDR4, 72bit (ECC), up to 2400 MT/s // Flash = Configuration via Protocol (CvP) allowing to improve the PCIe access and allows the software to load an external image in the FPGA
Connectors PCI Express x8 edge connector // QSFP+ optical cage
Switches & LEDs Board Management Controller (BMC) monitoring features
Latest Quartus Version Supported 21.3.1

Low-profile (half-height) form factor PCIe Board

Board Support Package (Manuals, Test Designs)

Power Supply adapter cable for standard ATX connector

PCIe Low profile or standart bracket

Mechanical files (3D DWF/STEP models and 2D drawings (upon request)

SDK for Windows 10 64Bits

SDK for Linux Debian Stretch 64Bits (on request for other Linux distribution)

Ordering Information

XpressGXA10-LP1151B

from Mouser

Order Now
