Achilles Arria® 10 SoC SoM

reflex ces

Select

This module is based on an Arria® 10 SoC FPGA, combining computing power and flexibility for embedded applications. It offers advanced DDR4 memory integration with ECC and a wide range of high-speed interfaces, facilitating the development of compact, high-performance systems.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • altera Arria® 10 SX 270 or 660 KLE
  • PCIe GEN3 x8
  • Dual ARM® Cortex™ A9
  • 228 SE IOs total (113 LVDS)
  • 24 transceivers up to @12Gbps
  • 2x DDR4 banks, 8GByte total
  • Commercial & Industrial Temp
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 SX FPGA
Offering Status Production
Device OPN(s) on Board 10AS048H2F34E2SG;10AS066H2F34I1HG
Form Factor system-on-module
Power Single supply input via carrier board
Interfaces PCIe Gen3 (via carrier board)
Gigabit Ethernet (HPS side)
USB 2.0 OTG (HPS)
UART
I²C
SPI
GPIO / LVDS / single-ended I/O
High-speed transceivers
Memory DDR4
Connectors FMC // DDR4 memory interface (on-module routing)
Switches & LEDs on the carrier board
Latest Quartus Version Supported 21.3.1

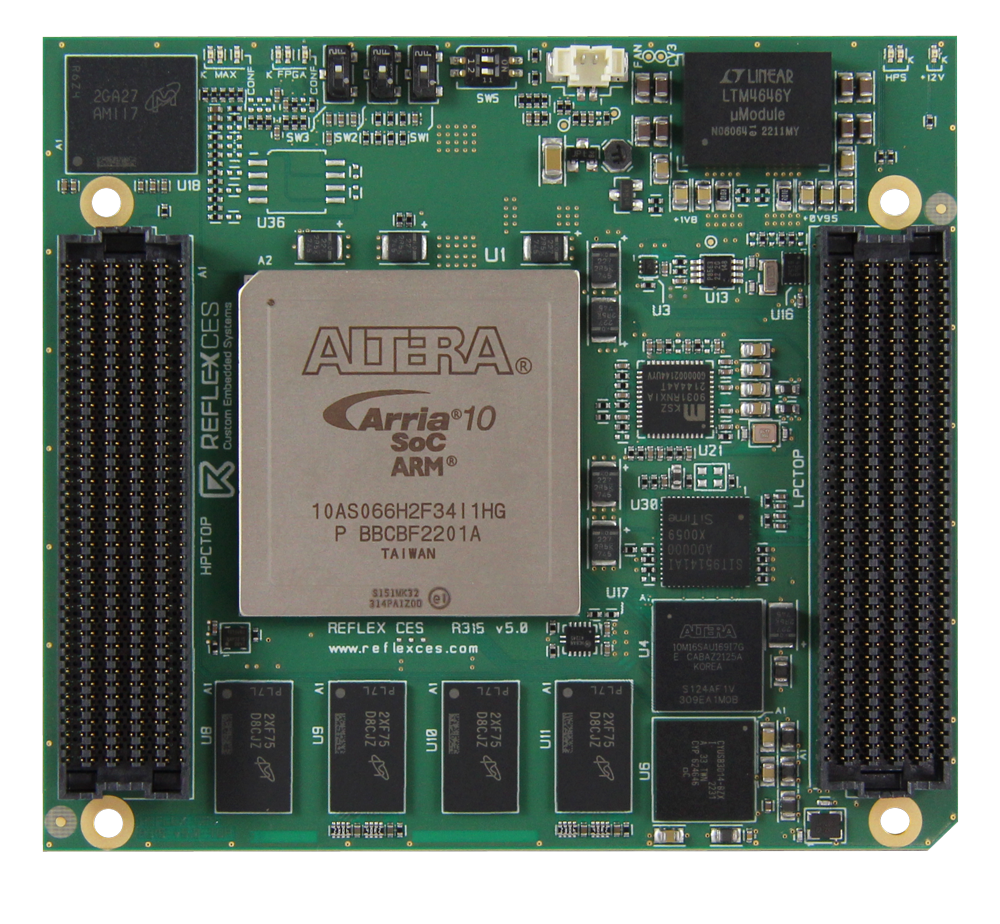

Arria® 10 SoC module

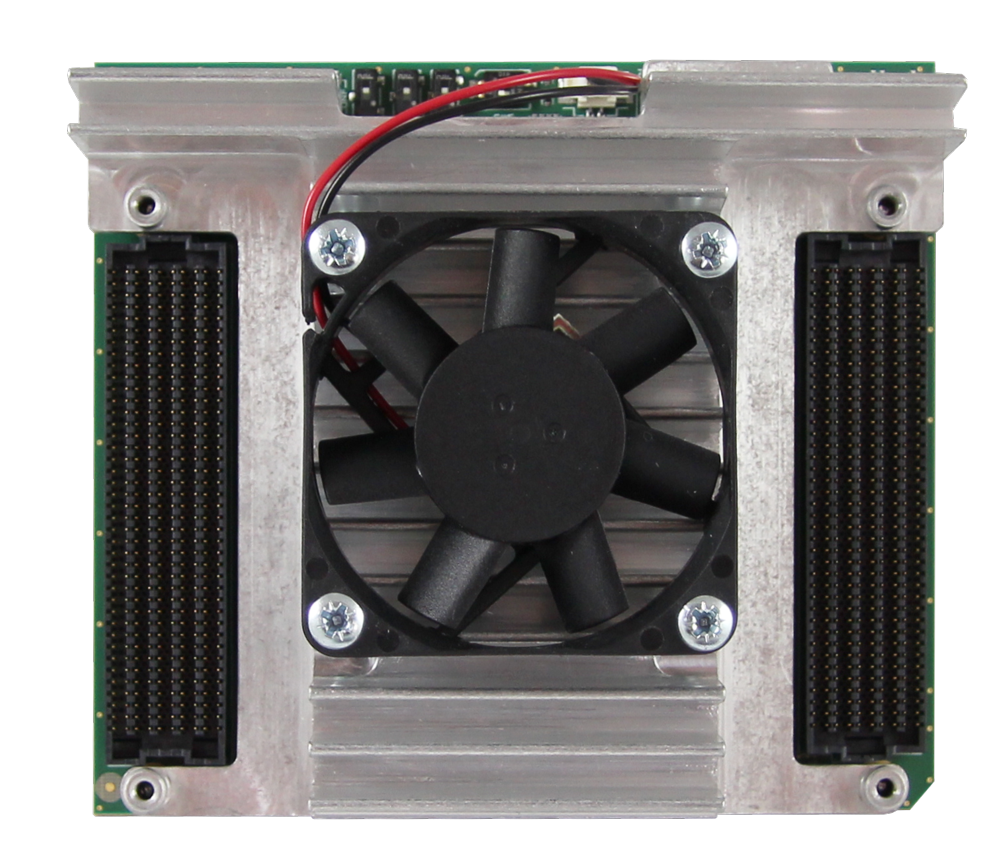

heat spreader

heatsink

fan

Ordering Information

RXCA10S066PF34-SOM02I

from Mouser

Order Now
