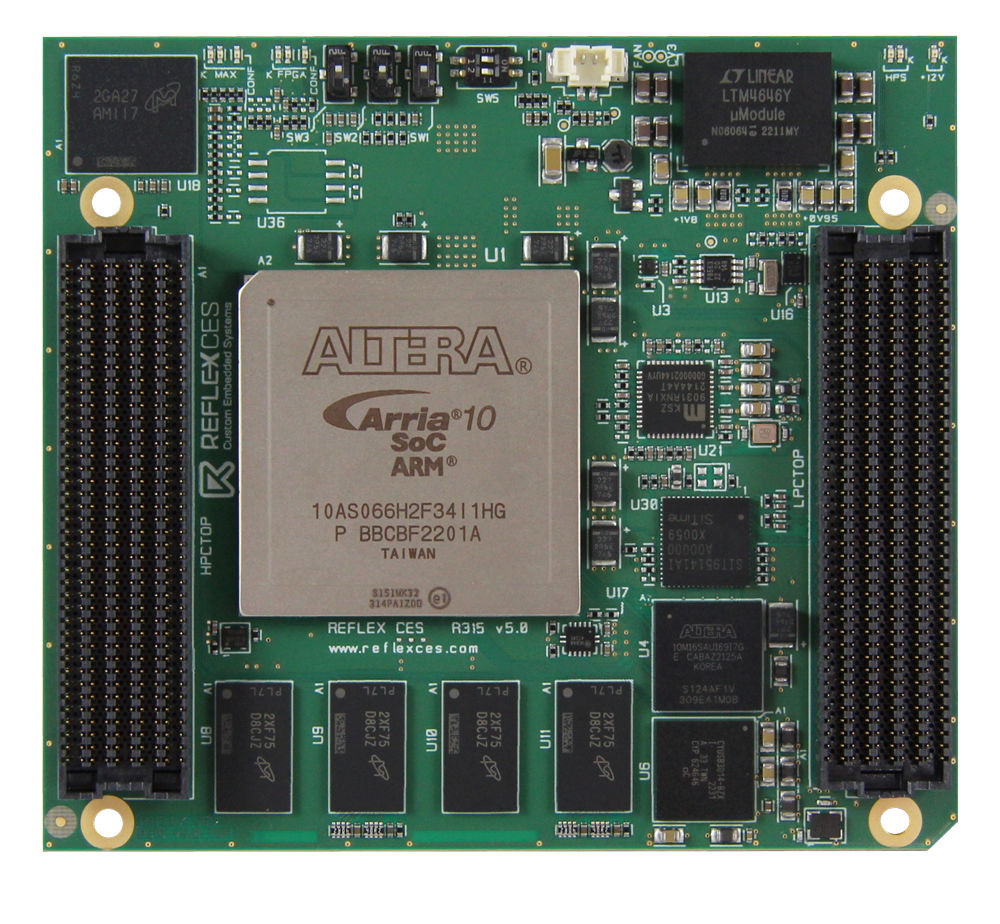

Arria® 10 SoC SoM Achilles Instant-Development Kit

reflex ces

Select

Development kit dedicated to the Achilles module, designed to accelerate prototyping and validation of embedded FPGA architectures. Its advantage over other kits is its extensive connectivity (Ethernet 10G, PCIe Gen3, USB 3.0), enabling direct access to SoM performance without the need for additional development.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Ultra compact form factor at only 86x95 mm (3.4x3.8 inches) is ideal for area constrained applications.
  • Careful board layout enables superior signal integrity, support for multi-Gigabit serial protocols, including PCIe Gen3 and 10G Ethernet.
  • Achilles Instant-DevKit is comprised of the Arria® 10 SoC SoM plus a Starter board for quick prototyping and application testing.
  • Comprehensive reference designs available enable out-of-the-box experience, designs provided with source code.
  • Standard Linux Debian support, allows seamless porting of existing application software.
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 SX FPGA
Offering Status Production
Device OPN(s) on Board 10AS048H2F34E2SG;10AS066H2F34I1HG
Form Factor DevKit (som + starter board)
Power 12V power supply with full system support (SoM + starter board)
Memory DDR4 HPS (1 bank by 32bit, 4GBytes) @2400MT/s for speed grade -1 // DDR4 FPGA (1 bank by 32bit, 4GBytes) @2400MT/s for speed grade -1
Connectors PCIe Gen3 x8 edge interface (via SoM/carrier system) // 10/100/1000 Ethernet RJ45 connectors // USB 3.0 interface // USB 2.0 / micro-USB / OTG connectors // UART / debug interfaces
Switches & LEDs Boot mode selection switches
Latest Quartus Version Supported 21.3.1

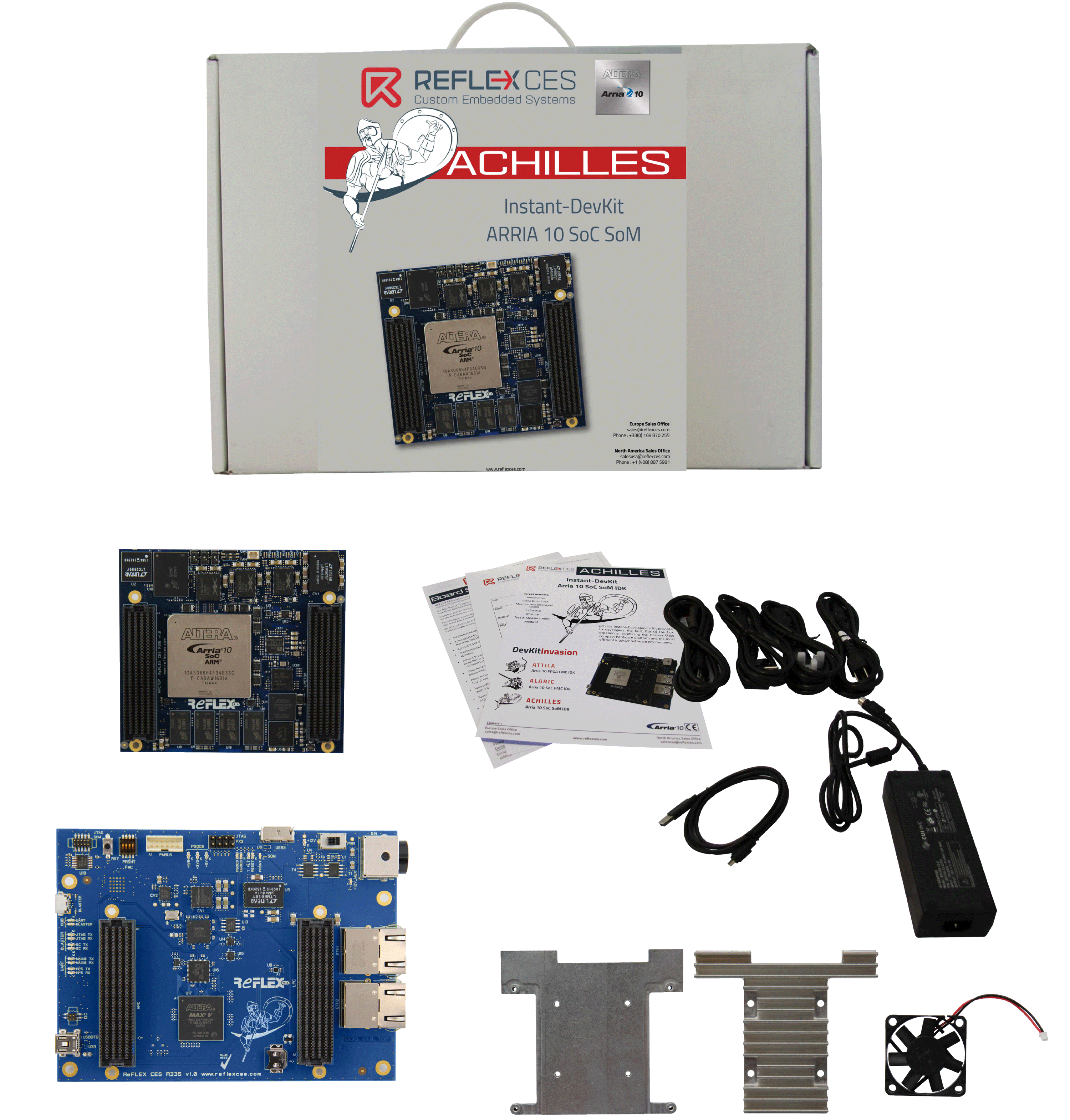

Starter board with the Achilles Arria® 10 SoC module (+ heat spreader, heat sink and fan)

Power supply and cables (US, UK, EU, JP), interface cables(USB, Ethernet)

Module, Starter board, PCIe carrier board documentation (Reference Manual, Starter Guide)

Starter board & PCIe carrier board schematics

Carrier Design Guide

Mechanical drawings PDF, 3D Step, Assembly files PDF

HDL Test Designs (Quartus projects) by module version

10GbE RefDesign

Kernel Linux & Linaro optimized distribution, U-boot bootloader, Test scripts

Kernel Linux & Linaro optimized distribution, U-boot bootloader, Test scripts
