Ares Agilex™ 7 FPGA SoC F-Series SoM

reflex ces

Select

Module integrating an Agilex™ 7 F-Series FPGA, designed to offer an optimum ratio between performance and energy efficiency. It stands out from other Agilex™ 7 SoMs thanks to its high-capacity DDR4 ECC memory and PCIe Gen4 and 100G Ethernet interfaces, making it ideal for hardware acceleration in mission-critical embedded systems.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • altera® Agilex™ 7 FPGA SoC F-Series
  • AGF012 / 027
  • PCIe Gen4 x8 Root Complex
  • PCIe Gen4 x16 End Point
  • Quad-Core ARM Cortex A-53
  • 84x LVDS + 135 FPGA GPIOs
  • 32 transceivers @32Gbps NRZ OR up to 16 transceivers @58Gbps PAM4
  • Industrial Temp Grade
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex™ 7 FPGA F-Series
Offering Status Production
Device OPN(s) on Board AGFB012R24C2I2V;AGFB027R24C2I1VC
Form Factor system-on-module
Power Single supply input via carrier board
Interfaces PCIe Gen4
100Gb Ethernet support
High-speed serial transceivers
DDR4 ECC memory interface
GPIO / LVDS interfaces
SPI, I²C, UART
Memory 3 banks DDR4, 24 GByte total
Connectors High-speed board-to-board connector for carrier integration // DDR4 memory routing on module with ECC support // JTAG / debug access via carrier board // High-speed transceiver connectivity through carrier interfaces
Switches & LEDs Boot and configuration management via carrier board
Latest Quartus Version Supported 24.2.1

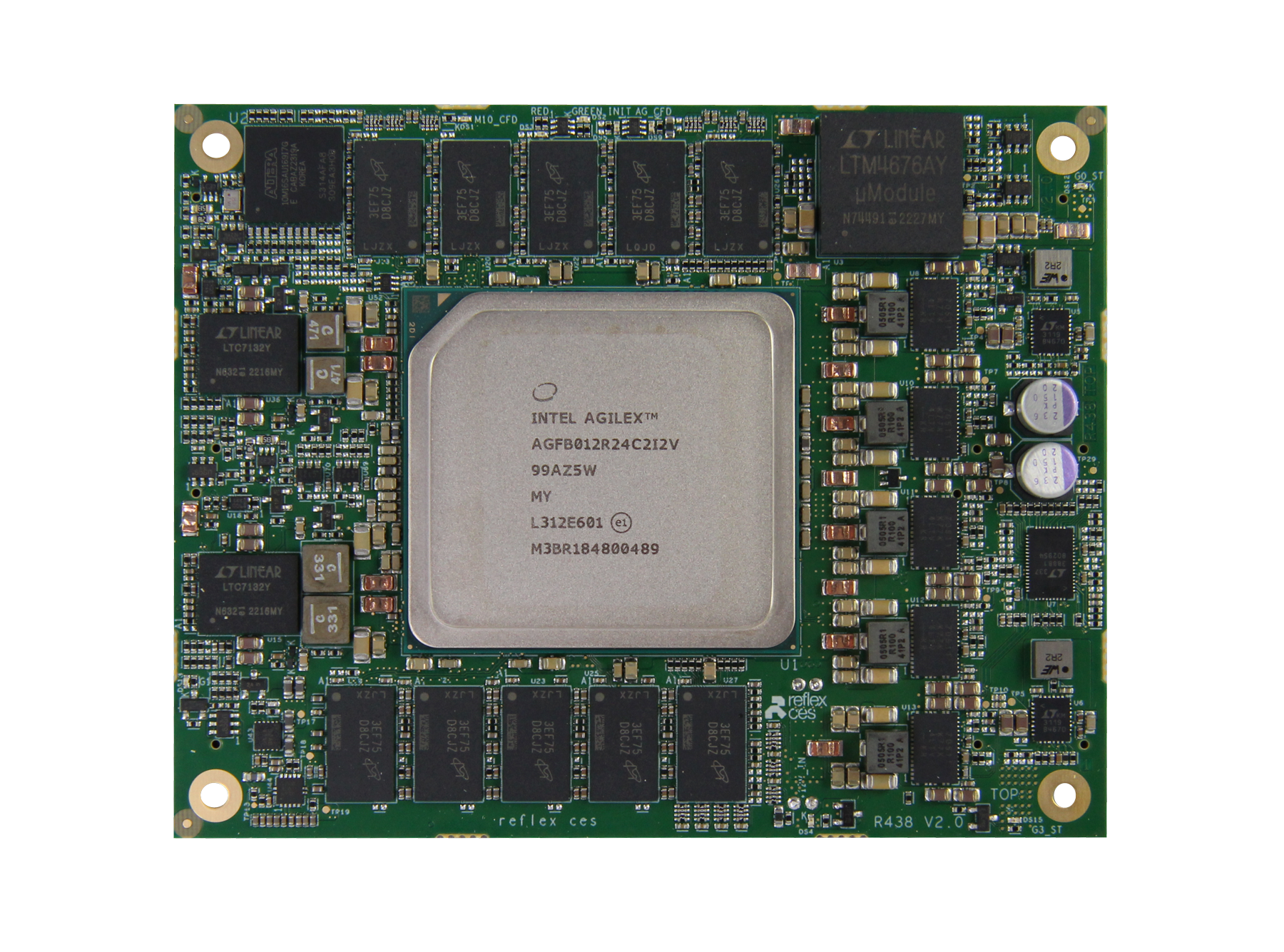

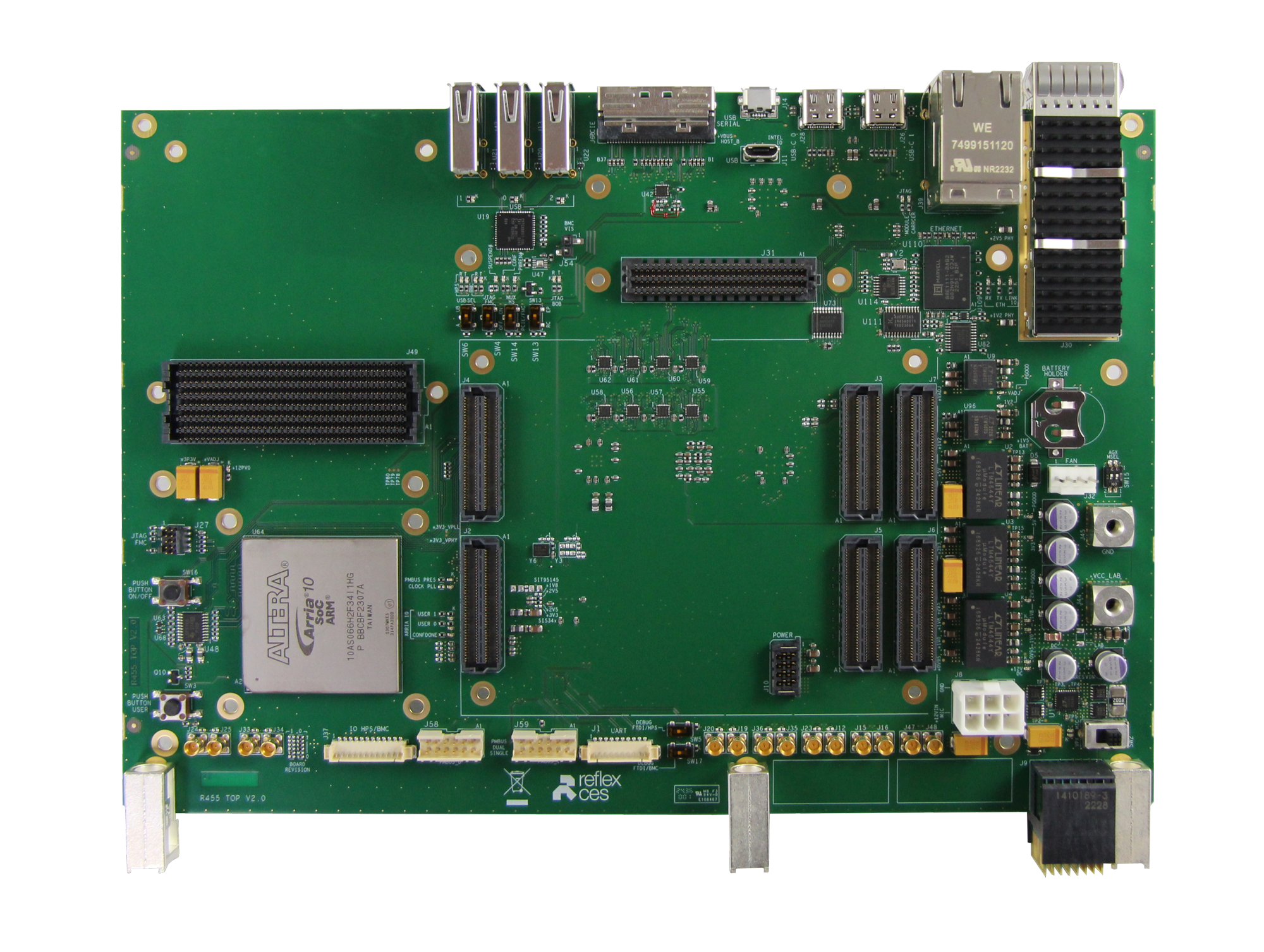

Ares Agilex™ 7 FPGA SoC F-Series module

Active heatsink with heat spreader and fan

Ordering Information

RXCAGF012PR24-SOM00I / RXCAGF027PR24-SOM00I

from Mouser

Order Now
