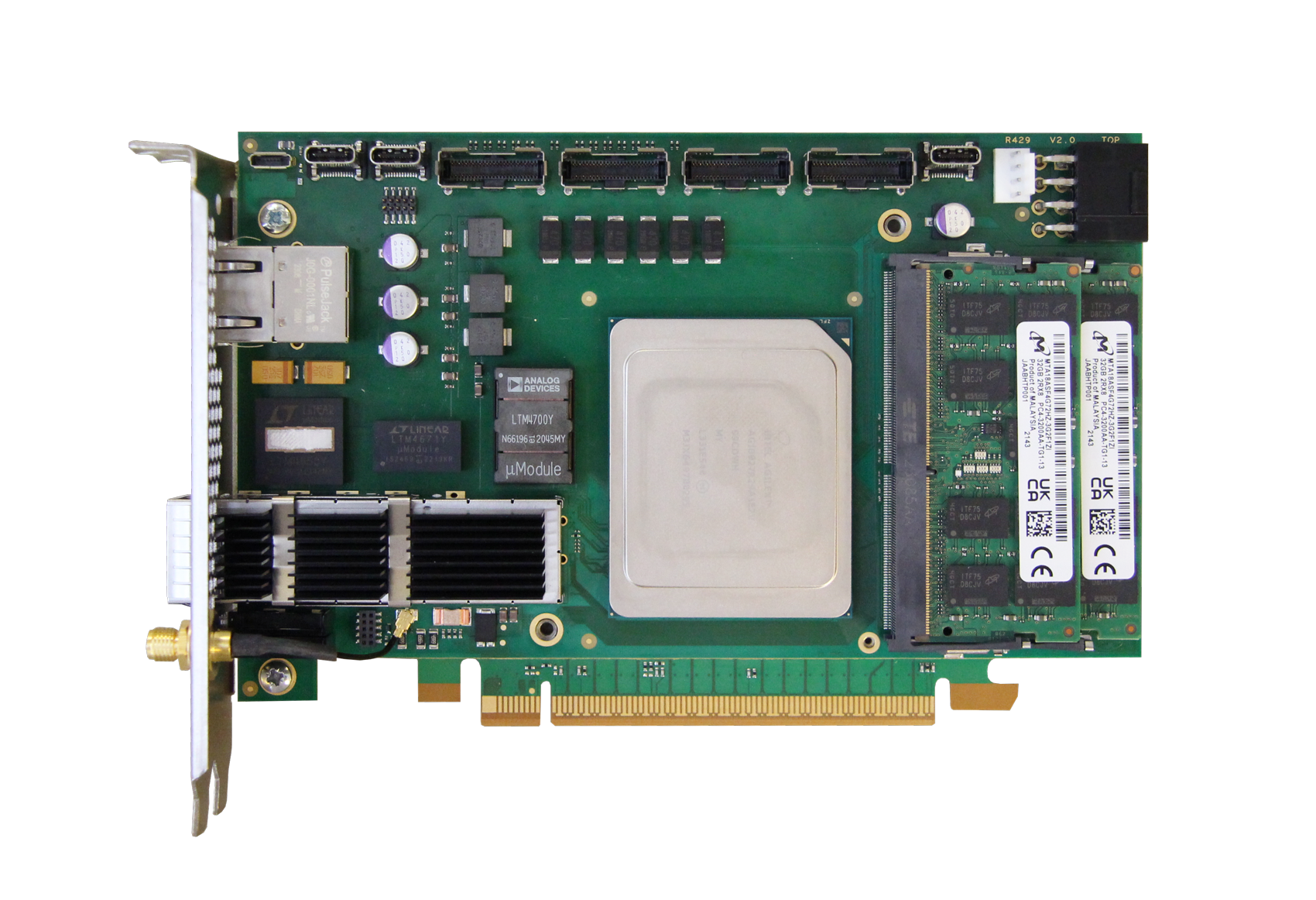

XpressSX AGI-FH401G PCIe Gen5 Network Processing Board

reflex ces

Select

PCIe FPGA board featuring an Agilex™ 7 I-Series FPGA with 400G connectivity, ideal for accelerated computing and ultra-high-speed networking applications. Its differentiating feature is an architecture optimized for real-time processing, combining high memory bandwidth with low latency for SmartNI

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Agilex™ I-Series FPGA (AGI027)
  • Quad-core Arm Cortex-A53
  • 2700 KLE
  • Network Interface: 8 x QSFP-DD (8 x 58G)
  • Host Interface: PCIe Gen 5x16, CXL EP standard compatible
  • 8GB on-board DDR4, 2 x up to 32GB DDR4 SO-DIMM
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex™ 7 FPGA I-Series
Offering Status Production
Device OPN(s) on Board AGIB027R29A1E1VC
Form Factor PCIe
Power 200W max, delivered with 2-slot active cooling heatsink
Interfaces PCIe Gen5 x16
CXL™ endpoint compatible interface
10G / 40G / 100G / 200G / 400G Ethernet
High-speed serial transceivers up to 116Gbps
DDR4 ECC memory interfaces
USB 2.0
UART, SPI, I²C
ARM Cortex®-A53 HPS interfaces
DPDK-compatible SmartNIC architectu
Memory 1x on-board DDR4 (mutual SoC / FPGA) // 2x DDR4 SO-DIMM sockets (for FPGA)
Connectors PCIe Gen5 x16 edge connector // 8x QSFP-DD high-speed optical interfaces // 4x HSI high-speed connectors // 2x USB-C connectors for clocks and control // USB 2.0 hub for JTAG, UART and BMC // DDR4 SO-DIMM sockets // microSD / eMMC support for SoC
Switches & LEDs Board Management Controller (MAX® 10 device) for monitoring and control
Latest Quartus Version Supported 24.2.1

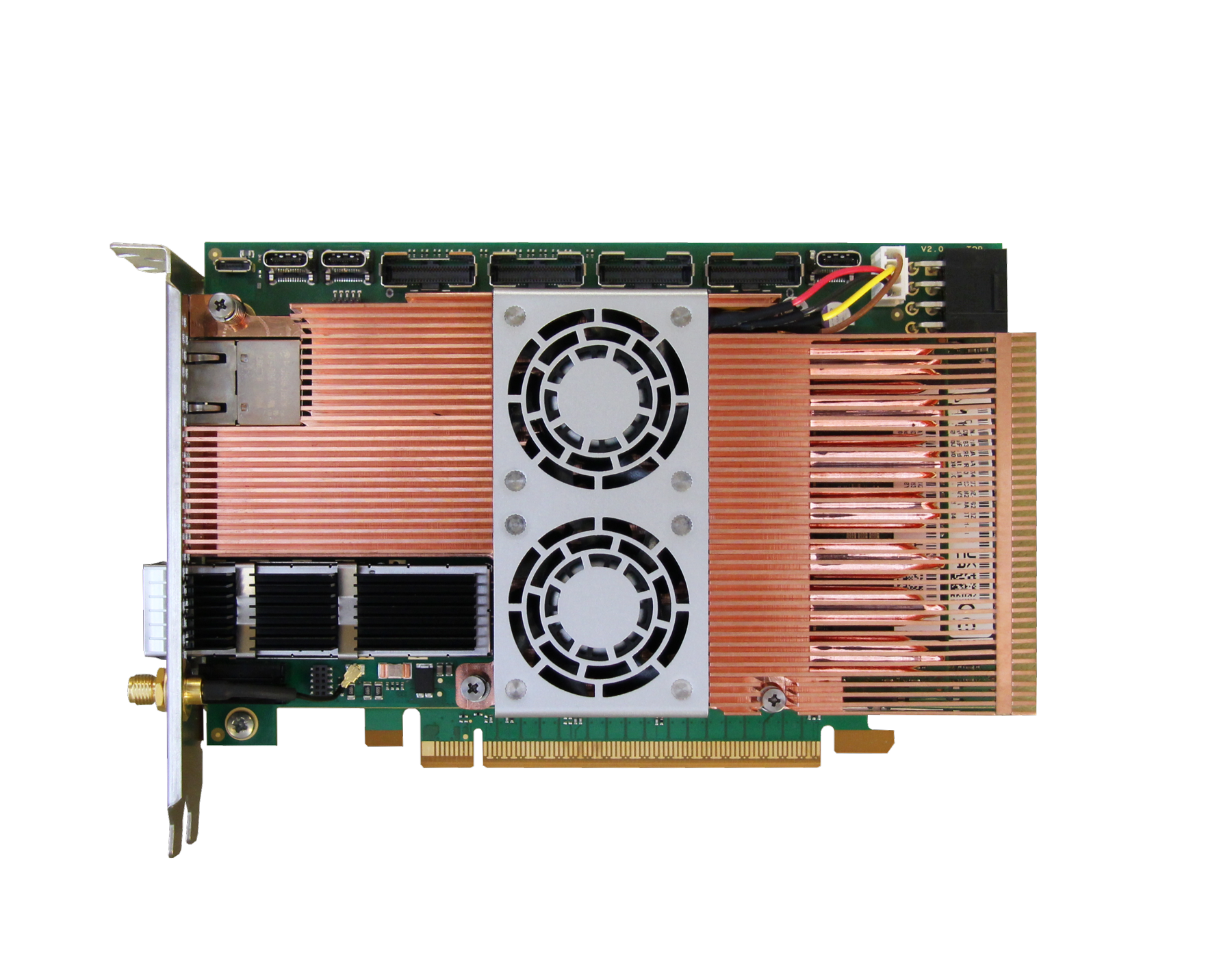

Full height half length 2-slot PCIe board with active heatsink and PCIe bracket

2x DDR4 SO-DIMM 32GByte each, one 32GB microSD card

2x HSI cables (ARC6-16-12.0-LU-LD-2-1) and 1x USB-C to USB-C cables (0.72ft), 3.1 Gen2 to connect the PCIe Gen5 x16 daughter card

PCIe Gen5 x16 (Gen4 x16 compatible) daughter card

1-year technical support and 1-year warrantee

NDK package (including DPDK NIC application) provided separately by DYNANIC

Board Support Package

Ordering Information

XpressSXAGI-FH401GT

from Mouser

Order Now
