Stratix® 10 XpressGX S10-FH800G PCIe Board

reflex ces

Select

PCIe FPGA board equipped with a Stratix® 10 FPGA, specially designed for applications requiring extreme network connectivity. Unlike other PCIe FPGA boards, it offers transmission capacity of up to 800G via its QSFP-DD interfaces, making it ideal for 5G infrastructures, data centers and advanced data flow processing. Its optimized memory architecture and PCIe Gen4 bandwidth guarantee high performance for hardware acceleration and real-time analysis.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Full height PCIe board using altera® Stratix® 10 GX 2800 KLE FPGA
  • Designed for Acceleration and Low Latency Applications
  • PCIe Gen3 x16
  • 4 independent memory banks compatible DDR4 and QDR2+
  • 4 QSFP-DD optical cages, 10/25/40/100 GbE
  • Board Management Controller (BMC)
  • 3 Ultraport Slim SAS connectors for storage solution
Expand Close

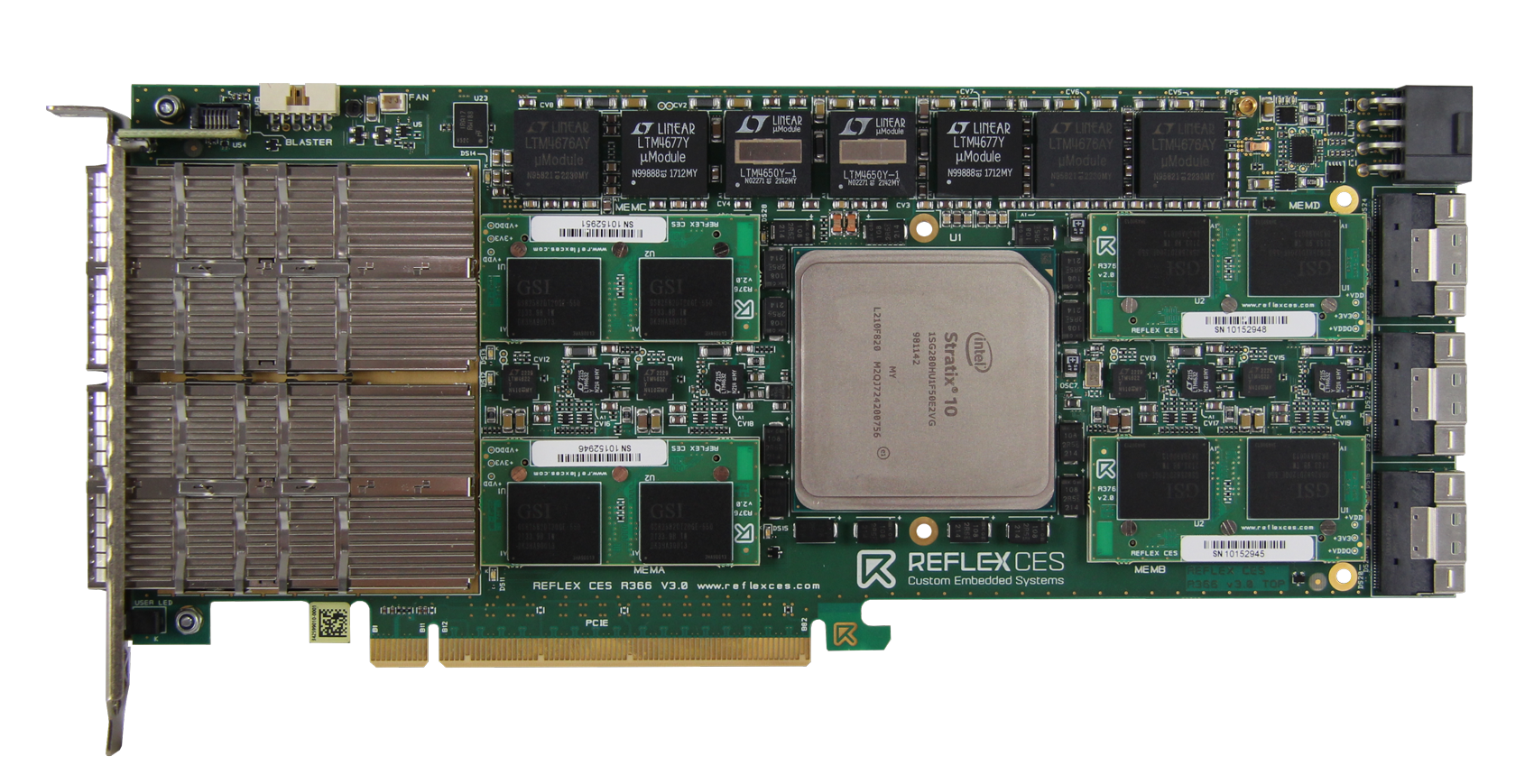

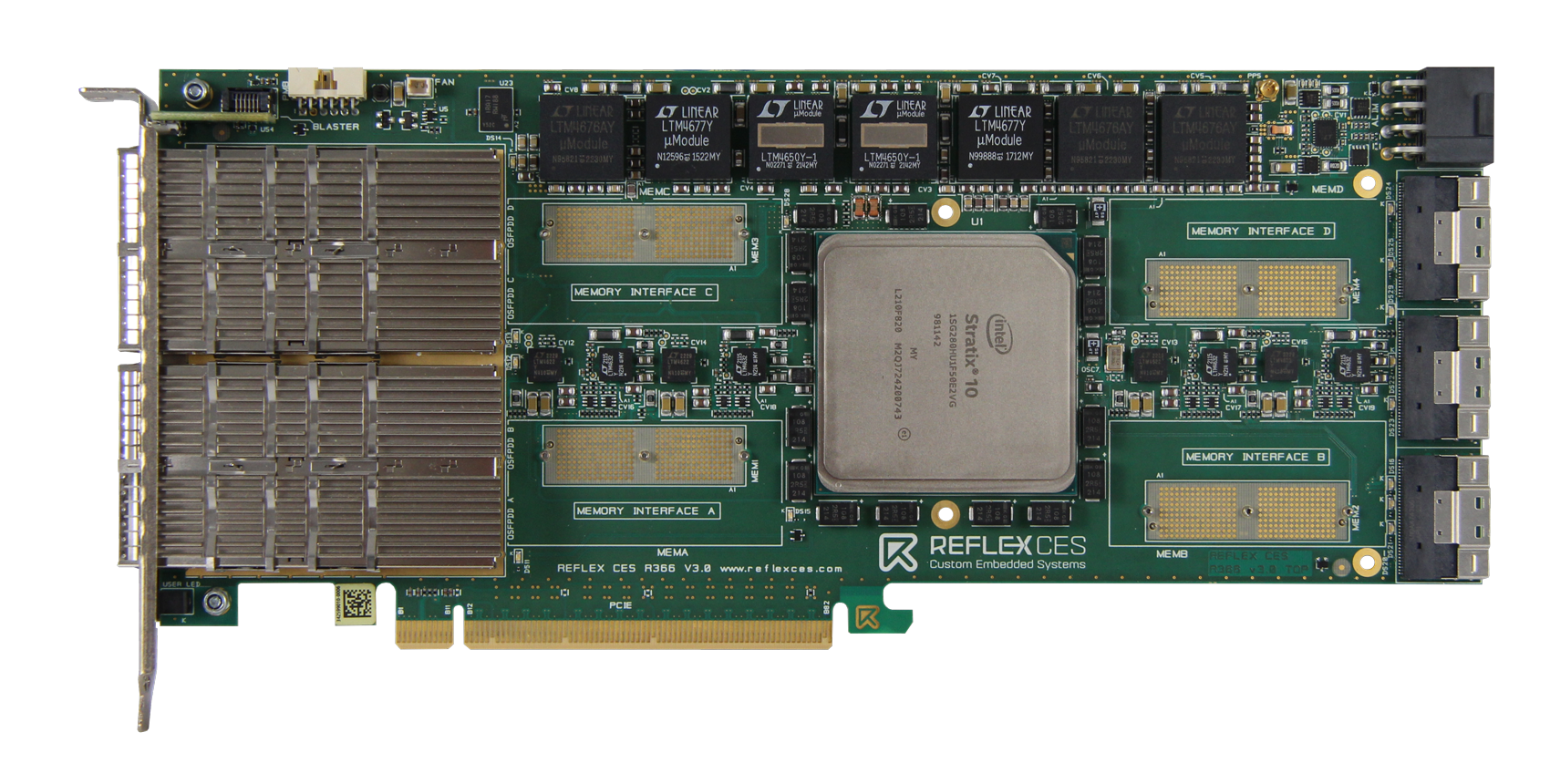

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Stratix® 10 GX FPGA
Offering Status Production
Device OPN(s) on Board 1SG280HU1F50E2VG
Form Factor PCIe
Power Max 200W
Interfaces PCIe Gen4 x16
100G / 200G / 400G / 800G Ethernet support
High-speed serial transceivers
DDR4 ECC memory interfaces
SmartNIC and packet processing interfaces
UART, SPI, I²C
Memory On board memory module with mix memory type DDR4 or QDRII // 0 to 4 banks DDR4, 8GBytes each, x72bits, up to 2400MT/s // 0 to 4 banks QDRII+ 576Mbits each, x36bits, up to 550MHz
Connectors PCIe Gen4 x16 edge connector // QSFP-DD optical cages supporting ultra-high-speed Ethernet // DDR4 DIMM interfaces
Switches & LEDs FPGA configuration and reset management
Latest Quartus Version Supported 24.2.1

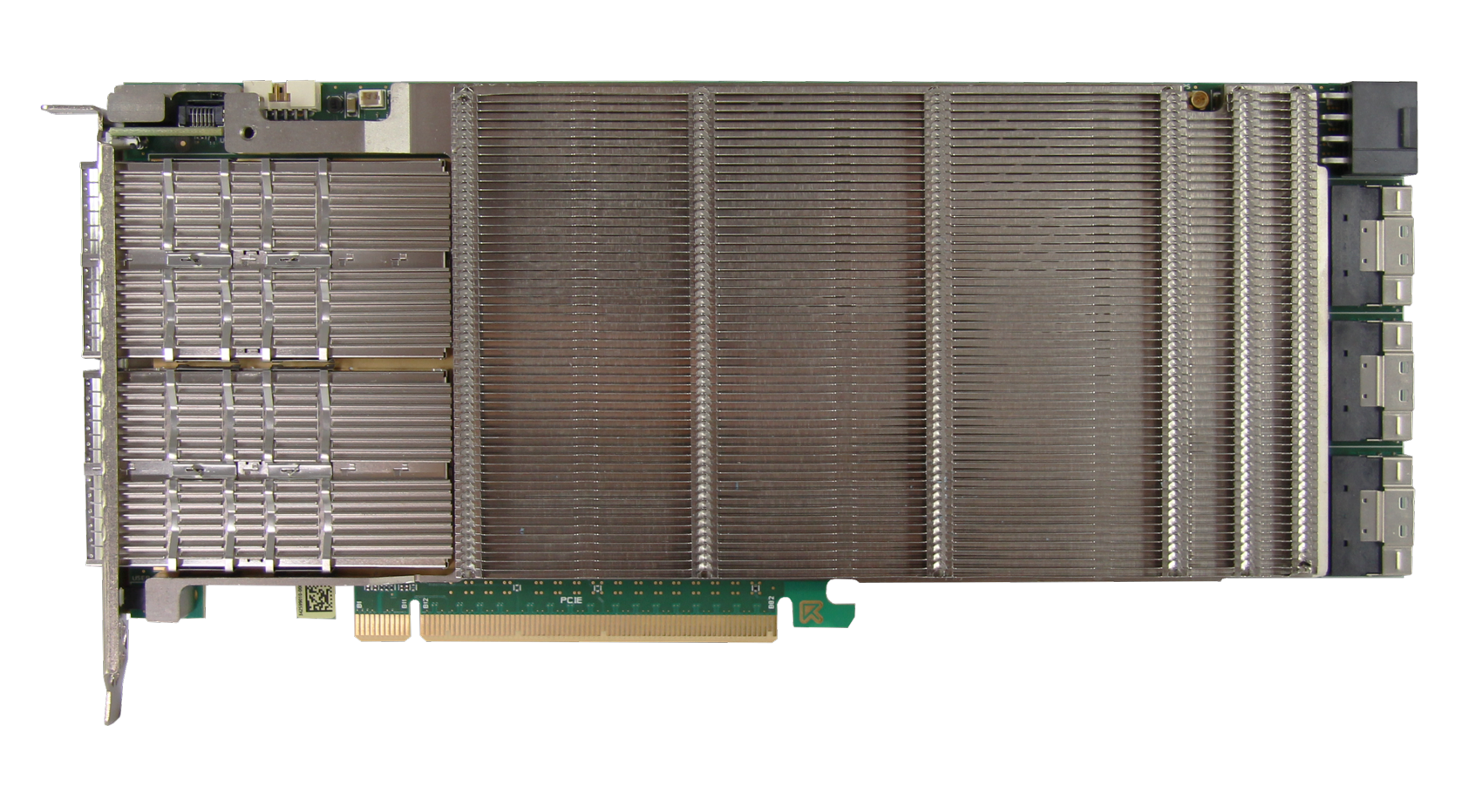

Full height 1 slot PCIe board with passive heat-sink and PCIe bracket

Board Support Package (Manuals, HDL reference designs)

4 memory modules DDR4 or QDRII+ (depends on the board version)

DWF/STEP models and 2D drawing (upon request)

LTPowerPlay project

Ordering Information

XpressGXS10H-FH820GT

from Mouser

Order Now
