Stratix® 10 Sargon Instant-DevKit FPGA FMC+ Board

reflex ces

Select

Development kit with a Stratix® 10 FPGA, combining flexibility and computing performance for embedded and industrial applications. Unlike other FPGA kits, it includes FMC compatibility and optimized memory bandwidth, facilitating the development of high-performance systems right from the prototyping phase.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • altera® Stratix® 10 GX 2800 KLEs
  • PCIe Gen3 x16
  • Board Management Controller (BMC) for monitoring, NOR Flash and clock programming
  • 1x FMC+ (VITA57.4) with 20 XCVR up to 28Gb/s
  • GPIO extension connector : 9 LVDS usable as 18 LVCMOS
  • XCVR extension connector : 10 XCVR, 8 LVDS, Clock In&Out
Expand Close

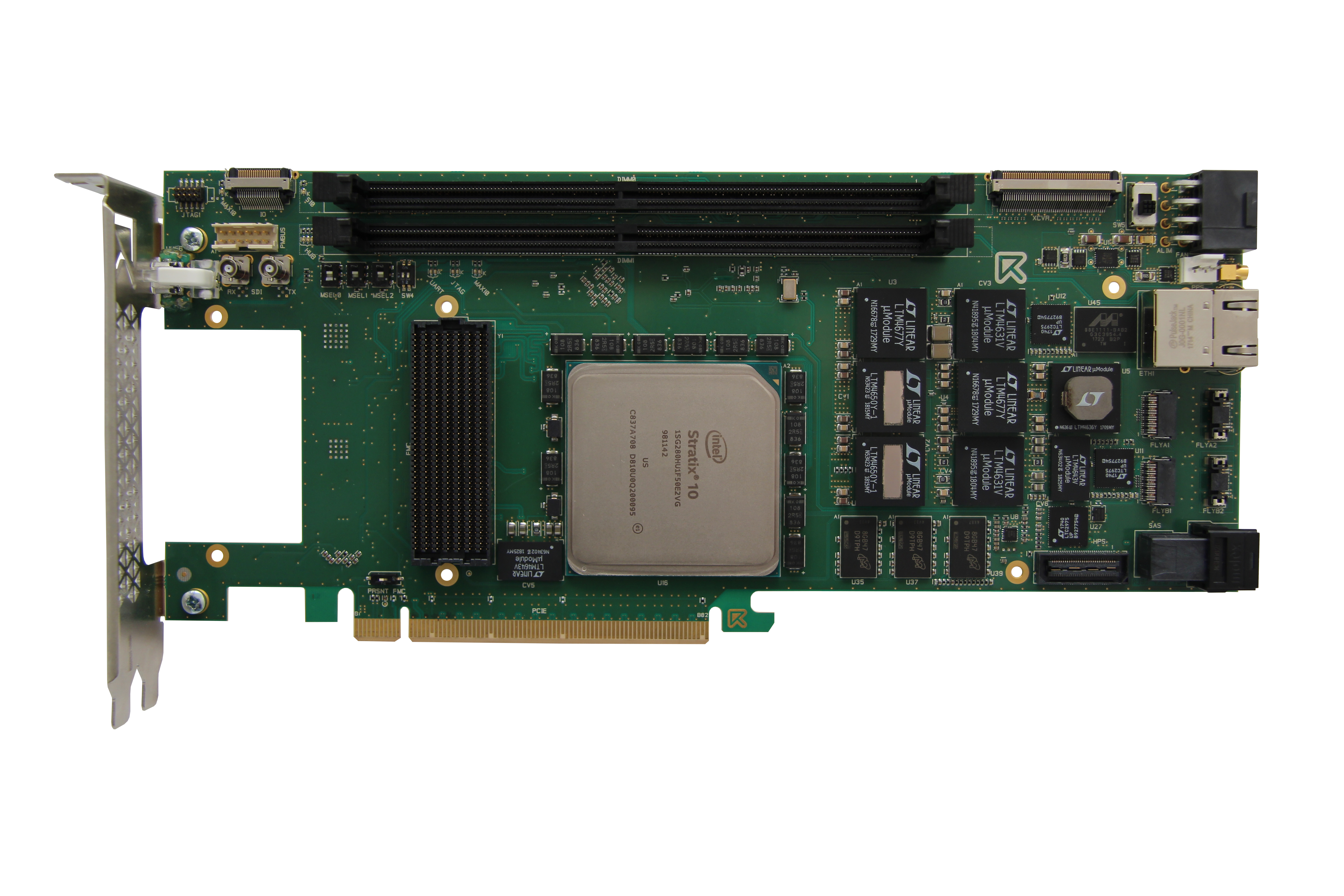

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Stratix® 10 GX FPGA
Offering Status Production
Device OPN(s) on Board 1SG280HU1F50E2VG
Form Factor PCIe

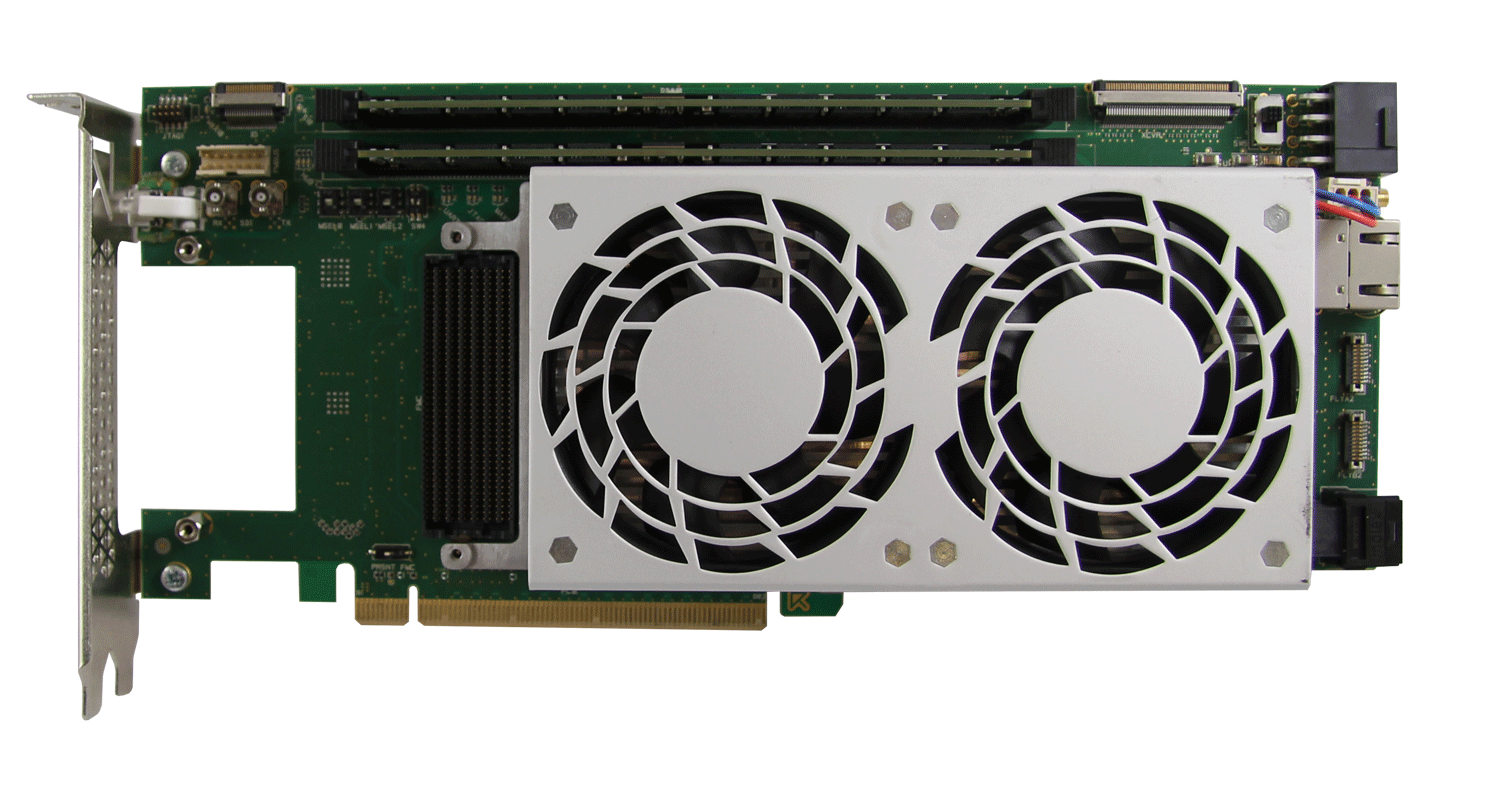

Power Max 240W including FMC board, delivered with active heat-sink
Interfaces PCIe Gen3 x16
FMC+ high-speed expansion
100G-capable transceiver interfaces
DDR4 RDIMM memory interfaces
Ethernet SGMII interface
UART, SPI, I²C
GPIO / LVDS interfaces
Memory 2x banks DDR4 vertical RDIMM // 1x bank DDR4
Connectors PCIe Gen3 x16 edge connector // FMC+ (VITA57.4) connector // FireFly™ Samtec optical connectors // MiniSAS connector // GPIO extension connector // XCVR extension connector // USB Blaster and UART over USB
Switches & LEDs Board Management Controller (BMC) for monitoring and configuration
Latest Quartus Version Supported 21.3.1

Sargon Stratix® 10 GX FMC+ DevKit

Power adapter (US, UK, EU, JP) and Micro USB2.0 cable

PDF Documentation (Starter Guide, Hardware Reference Manual, FMC interconnect pinout file)

PDF Mechanical drawings, 3D step, PDF assembly files

HDL test designs (Quartus projects)

Ordering Information

RXCS10X280HPF50-IDK10A

from Mouser

Order Now
