Stratix® 10 SoC Spartacus SoM

reflex ces

Select

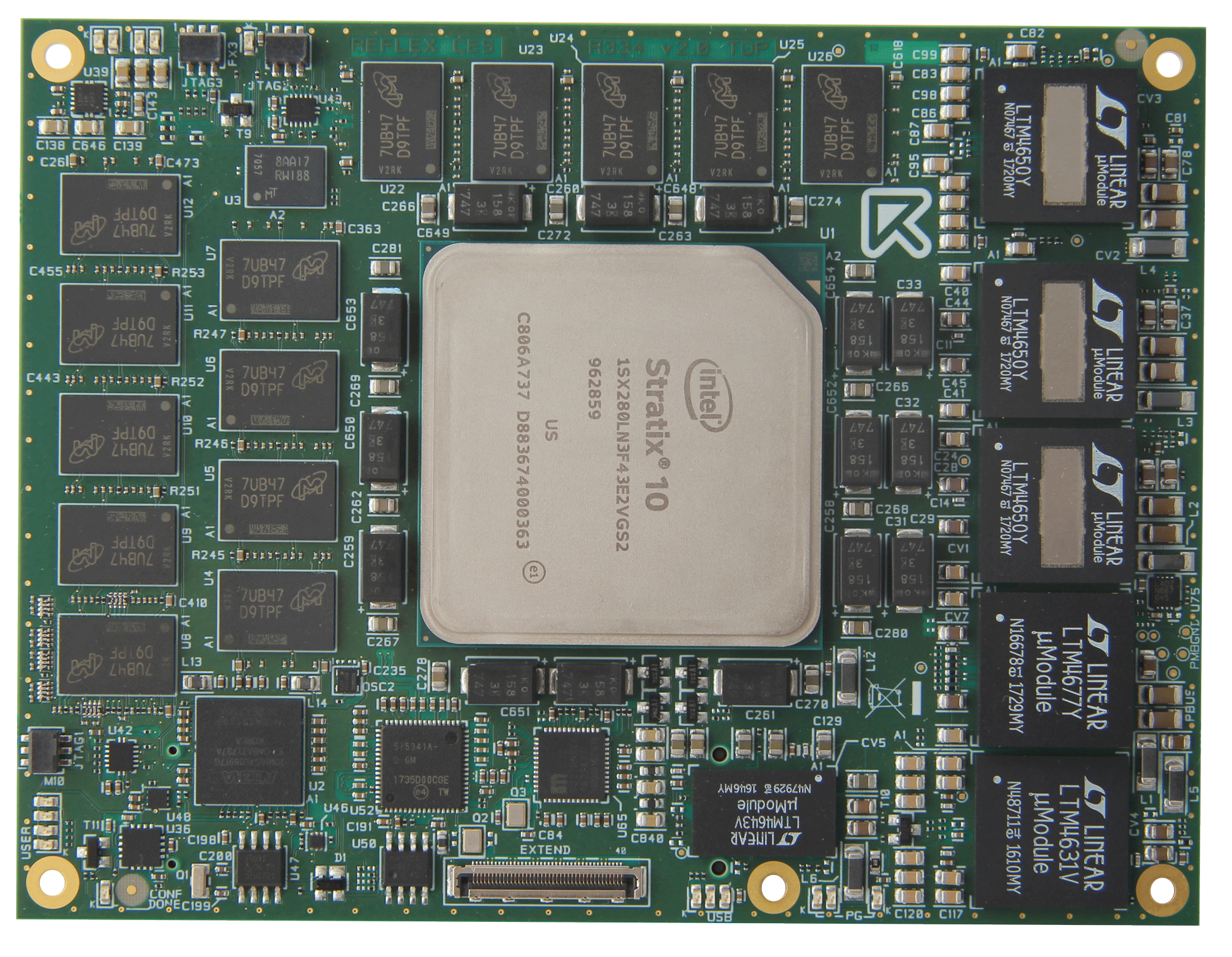

Spartacus is a COM Express module integrating a Stratix® 10 SoC, combining the power of a high-end FPGA with the flexibility of the COM Express standard. Its differentiation lies in its seamless integration into industrial modular architectures, reducing development time for complex embedded systems.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • COM Express Basic form factor Module, Type 7 standard
  • altera® Stratix® 10 SX Technology - 2800 KLE density
  • Designed for High Performance Computing and Acceleration
  • 32 PCI Express lanes
  • IO and Transceiver extension connector
  • Board-to-board connection
  • Industrial Temp grade
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Stratix® 10 SX FPGA
Offering Status Production
Device OPN(s) on Board 1SX280LN3F43I2VG
Form Factor COM Express
Power +12V primary power supply input, 120W max // +5V standby and 3.3V RTC power supply inputs
Interfaces 2x PCIe x16 Gen1/2/3
4x 10GbE KR interfaces
Gigabit Ethernet (HPS)
USB 3.0 and USB 2.0 HOST
SATA 3.0 interfaces
UART, SMBus, I²C
GPIO interfaces
Memory 4x memory banks on board DDR4
Connectors COM Express Basic Type 7 connector // High-speed board-to-board interface // JTAG connector for external USB Blaster // IO and transceiver extension connector // DDR4 ECC memory interfaces on module
Switches & LEDs Boot and configuration management through carrier board
Latest Quartus Version Supported 21.3.1

Stratix® 10 SX COMe Basic module type 7

Delivered with a custom heatsink

Board Support Package (Reference Manual, Design Carrier Guideline, HDL reference designs, Connectors to FPGA pin assignments)

Kernel Linux support, U-boot bootloader and comprehensive user documentation

JTAG adapter cable for external USB blaster probe.

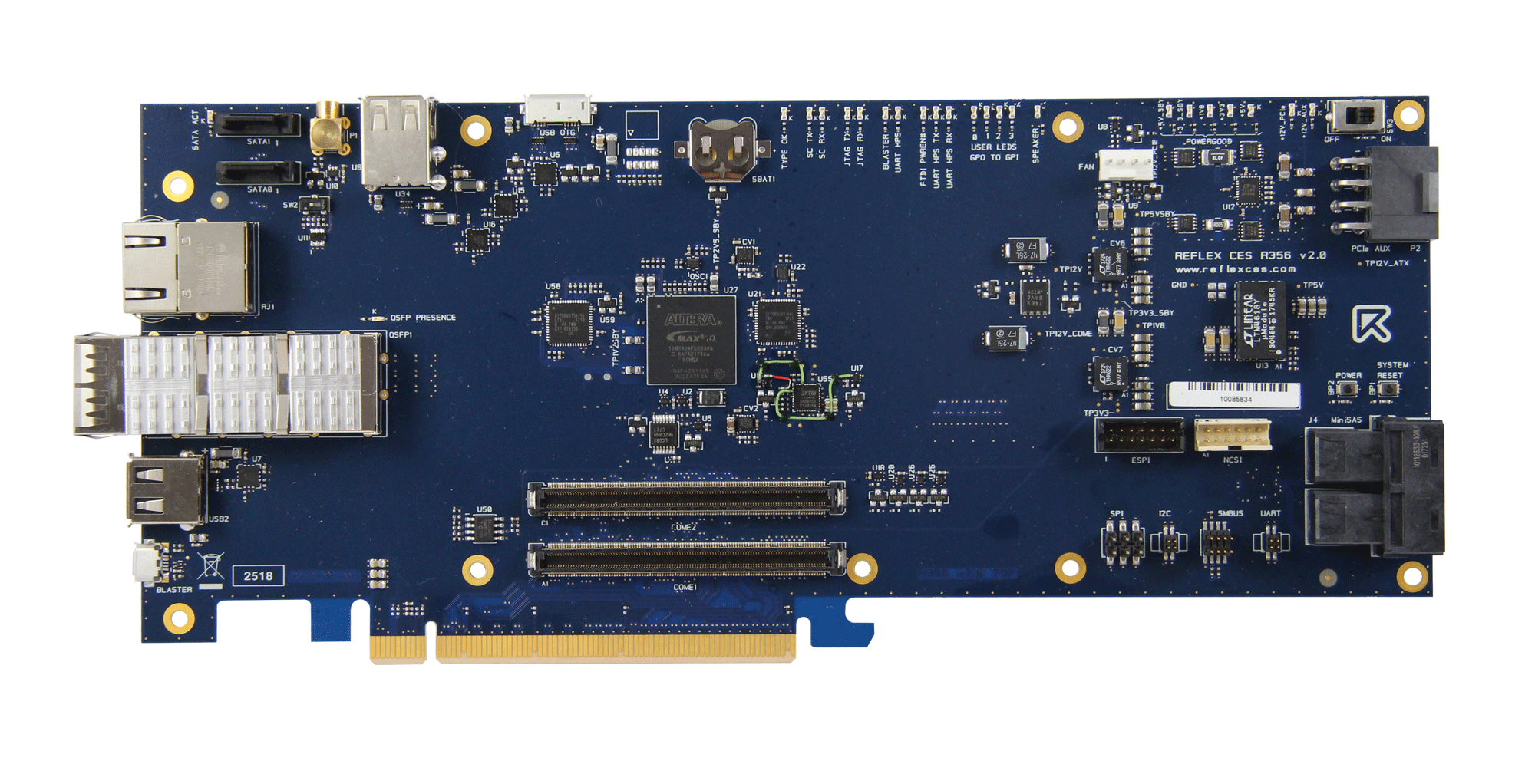

Evaluation PCIe Carrier Board available (upon request)

3D mechanical files (under request)

Ordering Information

COMXpressSXS10L-2801I

from Mouser

Order Now
