Ares Agilex™ 7 FPGA SoC SoM Carrier Board

reflex ces

Select

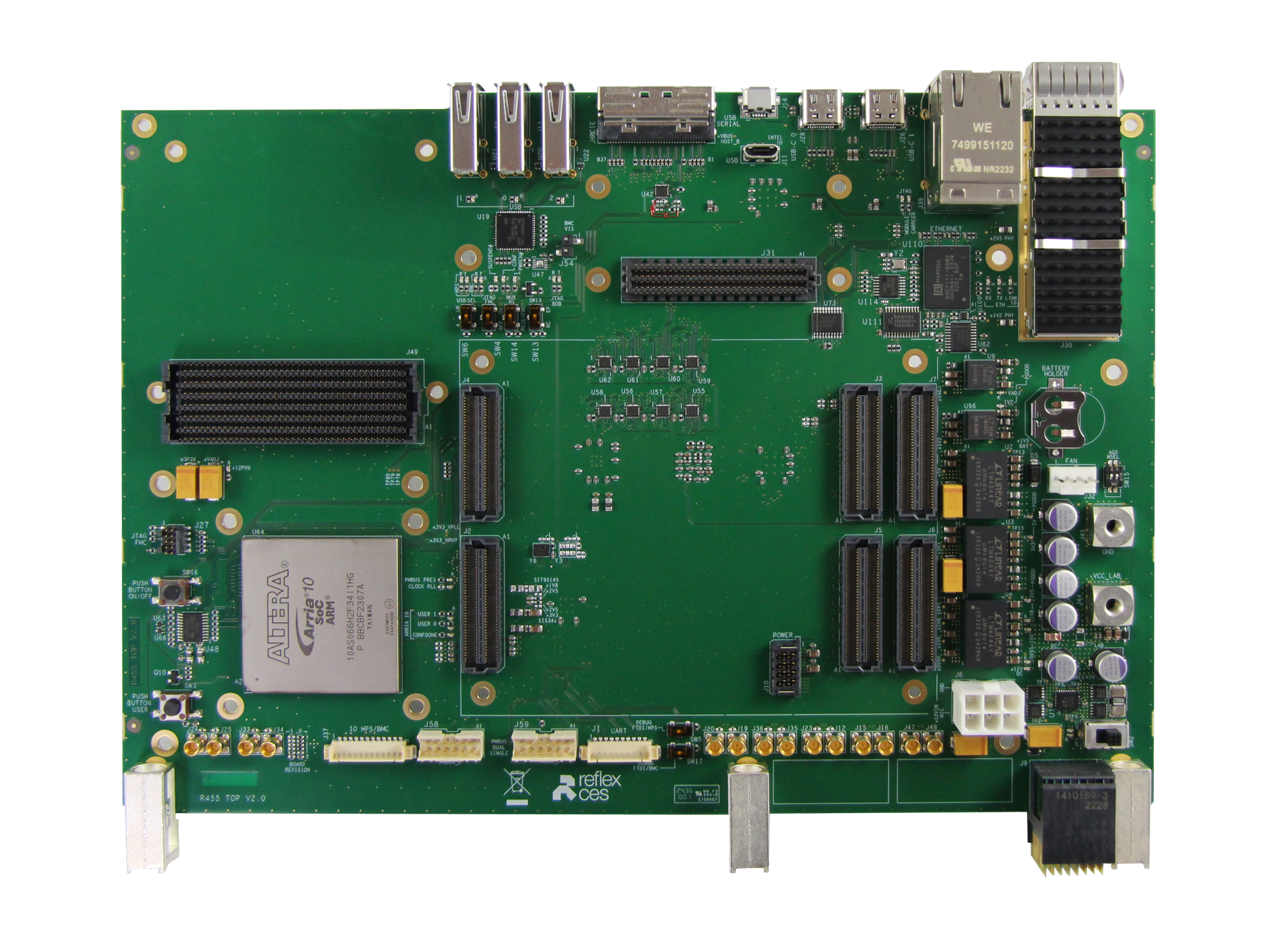

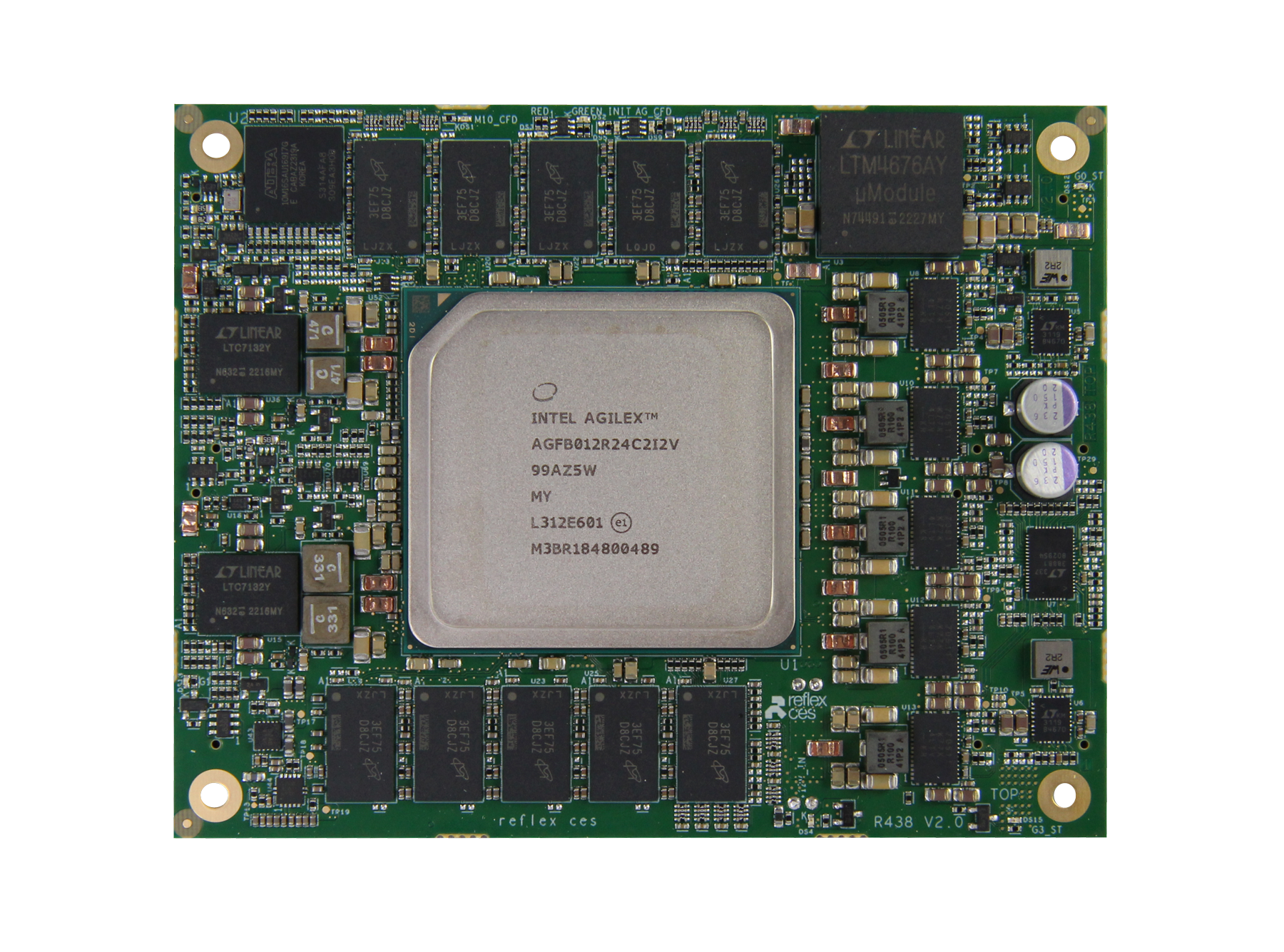

Dedicated carrier board for the Ares module, facilitating its integration in embedded environments. Unlike generic boards, it is optimized to take full advantage of SoM capabilities, with optimized routing for high frequencies and extensive connectivity (QSFP28, PCIe Gen4).

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Fully compatible with the Ares module
  • FMC+ HPC connector
  • Up to 16 transceivers @28G NRZ (capable 32G NRZ)
  • Designed to be embedded
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex™ 7 FPGA F-Series
Offering Status Production
Device OPN(s) on Board AGFB012R24C2I2V;AGFB027R24C2I1VC
Form Factor carrier board
Power External power supply support for high-performance operation
Interfaces PCIe Gen4
100Gb Ethernet via QSFP28
High-speed serial transceivers
USB interfaces
UART, SPI, I²C
GPIO and control interfaces
DDR4 ECC interface through SoM integration
Memory on the som
Connectors PCIe Gen4 edge connector // QSFP28 high-speed optical cages // High-speed board-to-board SoM connector // USB and debug/programming interfaces // Ethernet and control connectors
Switches & LEDs System reset and boot configuration controls
Latest Quartus Version Supported 24.2.1

6U VPX Carrier board

Power Supply

Ordering Information

RXCAGF-CBD0SA

from Mouser

Order Now
