EtherNet/IP Adapter Subsystem for Altera FPGA

Softing Industrial

Select

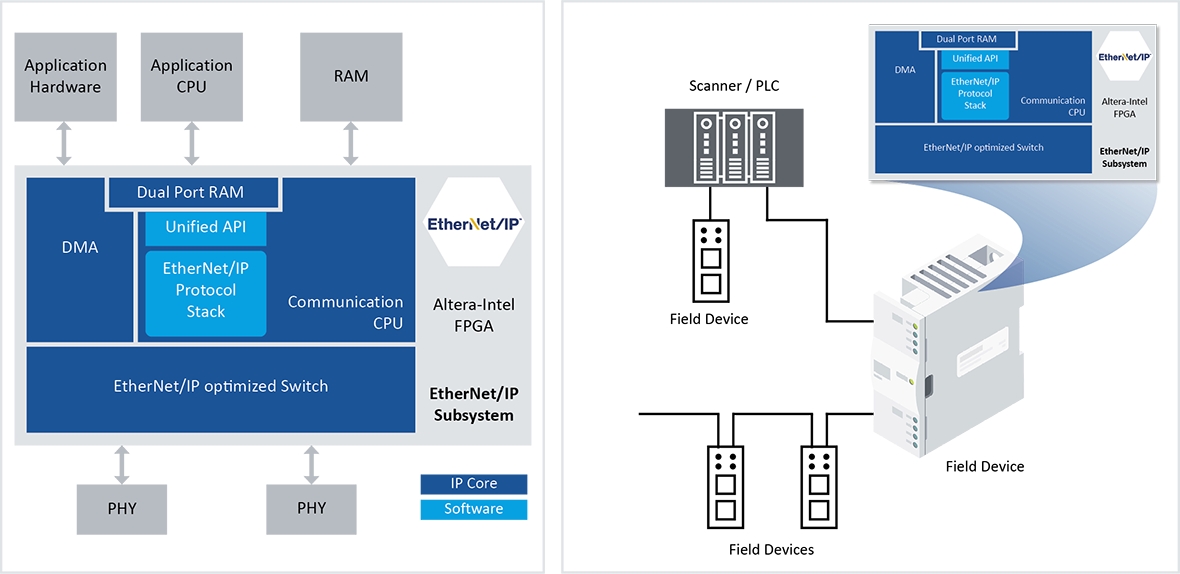

The EtherNet/IP Adapter Subsystem for Altera FPGA offers a switch IP Core and a communication processor for integrating EtherNet/IP into field devices.

Adaptation to the application requirements is made easy by extensive configuration options. Softing‘s consulting, integration, and pre-certification services allow for risk-free implementation. A large choice of supported FPGA families and sizes helps focus on the application rather than the communication.

The switch IP core's integrated firewall functions help provide the increasingly important security against cyberattacks.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • No porting of the EtherNet/IP protocol software required
  • Switch IP core with integrated firewall functions
  • Fast operation by cut-through-switching and DMA transfer of i/o data
  • Media Redundancy (DLR)
  • Cycle times down to 100 μs
  • Simple addition of further protocols due to unified API
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Cyclone® III FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GX FPGA, Cyclone® V SE SoC FPGA, Cyclone® V SX SoC FPGA, Cyclone® 10 LP FPGA, MAX® 10 FPGA
Offering Status Production
Integrated Testbench No
Evaluation License Yes
Design Examples Available Yes
Demo No
Compliance Yes
Compliance Link Compliance Link
Hardware Platforms Supported Terasic Cyclone® V SoC Development Kit with HSMC Connector (DE10-Standard)
Latest Quartus Version Supported 23.1.0
Development Language C/C++, Encrypted VHDL, VHDL

Development and integration package

Sample integration and application

Ordering Information

Contact Softing Industrial for details

from Direct

Order Now

Contact Softing Industrial for details

from EDA/IDE/Software

Order Now
