EtherCAT Slave Subsystem for Altera FPGA

Softing Industrial

Select

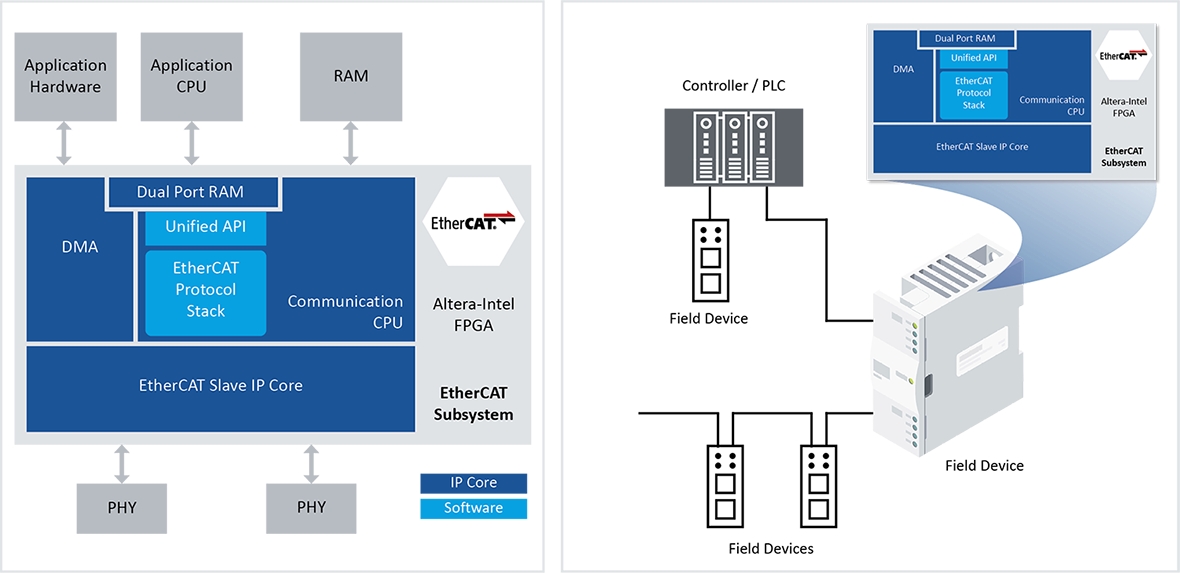

The EtherCAT Slave Subsystem for Altera FPGA offers an EtherCAT IP Core and a communication processor for the Integration of EtherCAT into field devices.

Adaptation to the application requirements is made easy by extensive configuration options. Softing‘s consulting, integration, and pre-certification services allow for risk-free implementation. A large choice of supported FPGA families and sizes helps focus on the application rather than the communication.

The EtherCAT Slave IP core with cut-through forwarding and media redundancy reaches cycle times down to 50 µs.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • No porting of the EtherCAT protocol software required
  • EtherCAT Slave IP core with cut-through forwarding
  • DMA transfer of i/o data
  • Media Redundancy
  • Cycle times down to 50 μs
  • Simple addition of further protocols due to unified API
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Cyclone® III FPGA, Cyclone® V SE SoC FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® 10 LP FPGA, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Cyclone® V GX FPGA, Cyclone® IV E FPGA
Offering Status Production
Integrated Testbench No
Evaluation License Yes
Design Examples Available Yes
Demo No
Compliance Yes
Compliance Link Compliance Link
Hardware Platforms Supported Terasic Cyclone® V SoC Development Kit with HSMC Connector (DE10-Standard)
Latest Quartus Version Supported 23.1.0
Development Language C/C++, Encrypted VHDL, VHDL

Development and integration package

Sample integration and application

Ordering Information

Contact Softing Industrial for details

from Direct

Order Now

Contact Softing Industrial for details

from EDA/IDE/Software

Order Now
