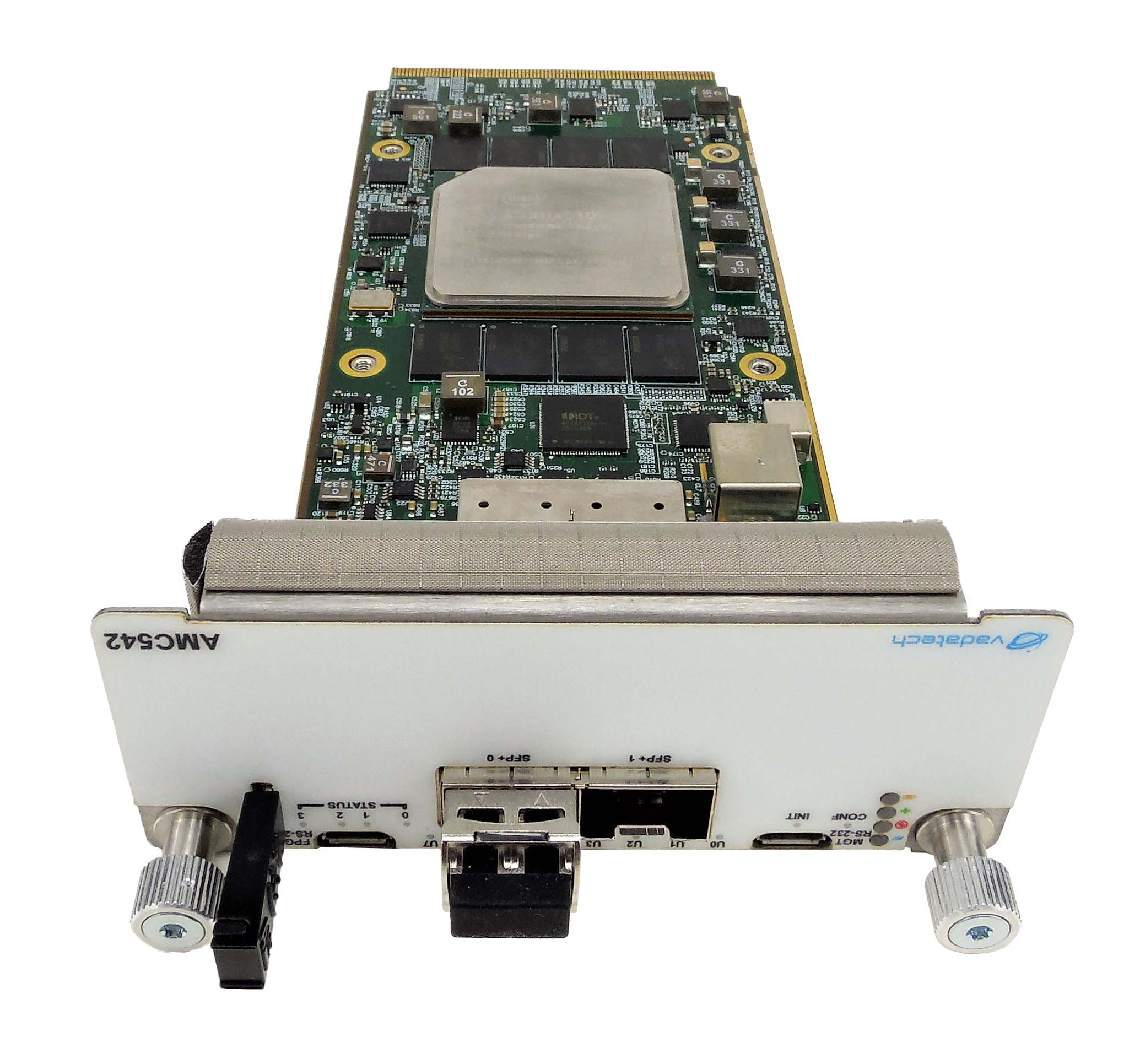

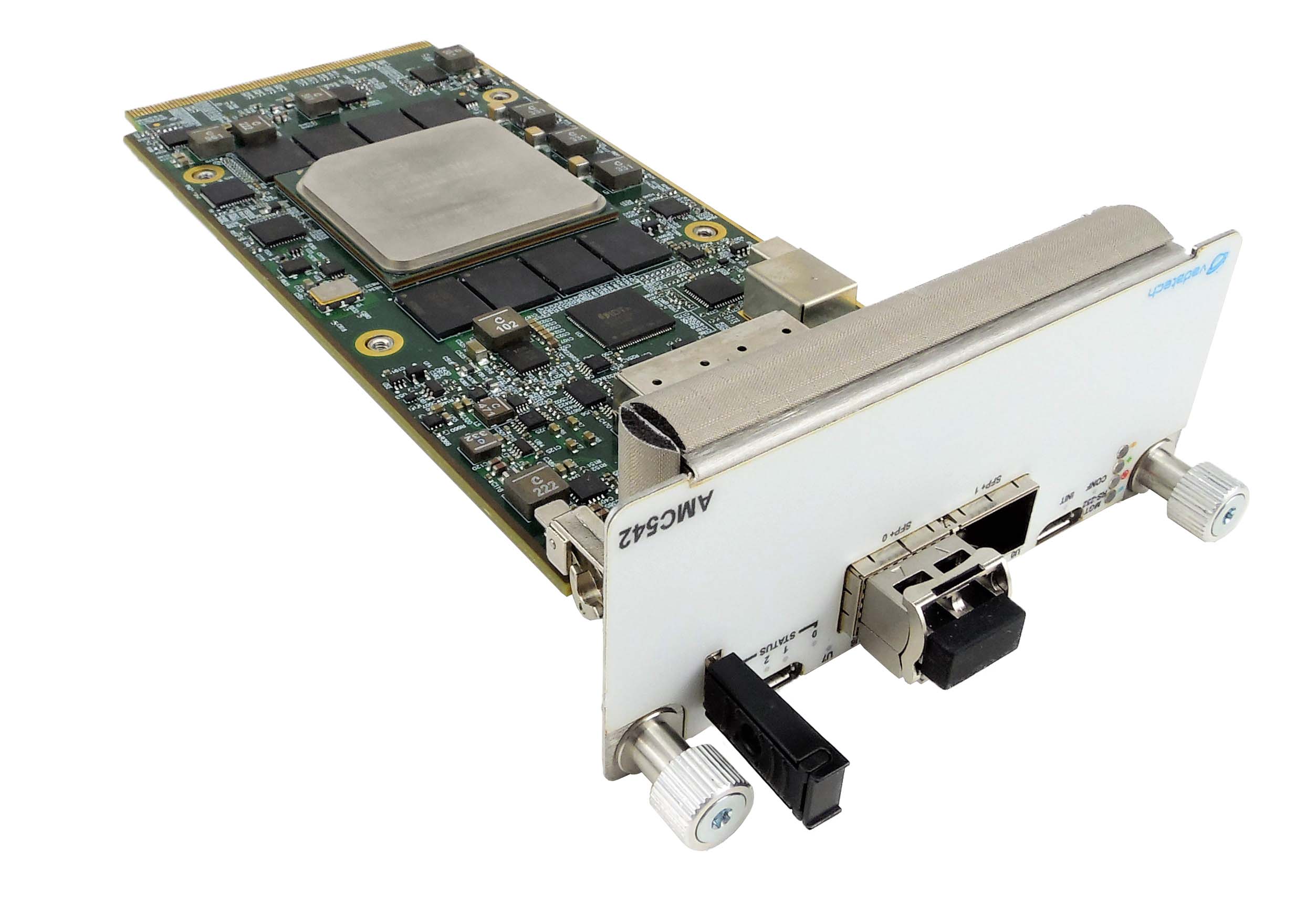

The AMC542 is based on the Stratix® 10™ GX2800 FPGA in the F1760 package and is compliant with AMC.1, AMC.2, AMC.3, and/or AMC.4
specifications.

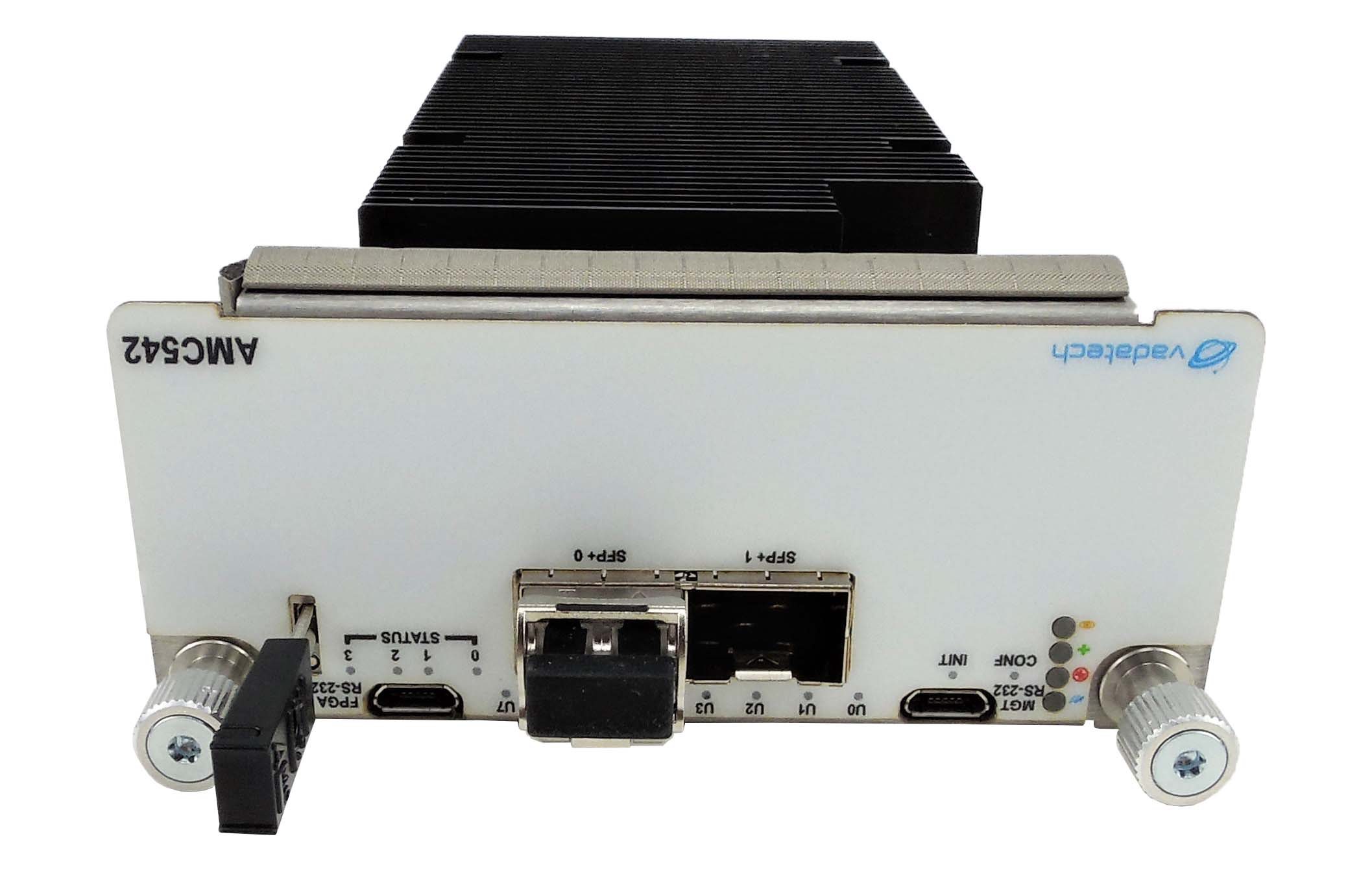

The module has a dual front panel SFP+ for 2x 10GbE fiber.

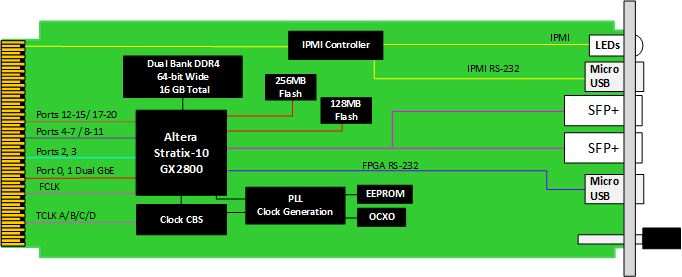

The onboard, re-configurable FPGA interfaces directly to the AMC FCLKA
and TCLKA-D via a Cross Bar Switch (CBS) MLVDS. It also has two banks
of DDR4 (64-bit wide), giving 16 GB total memory. This allows for large buffer
sizes to be stored during processing as well as for queuing the data to the
host. The module includes an OCXO on-board clock reference, which generates
precise protocol fixed clocks routed to the FPGA to support SyncE over GbE
and 10GbE.
