IPM-UNFC

IP-Maker

Member

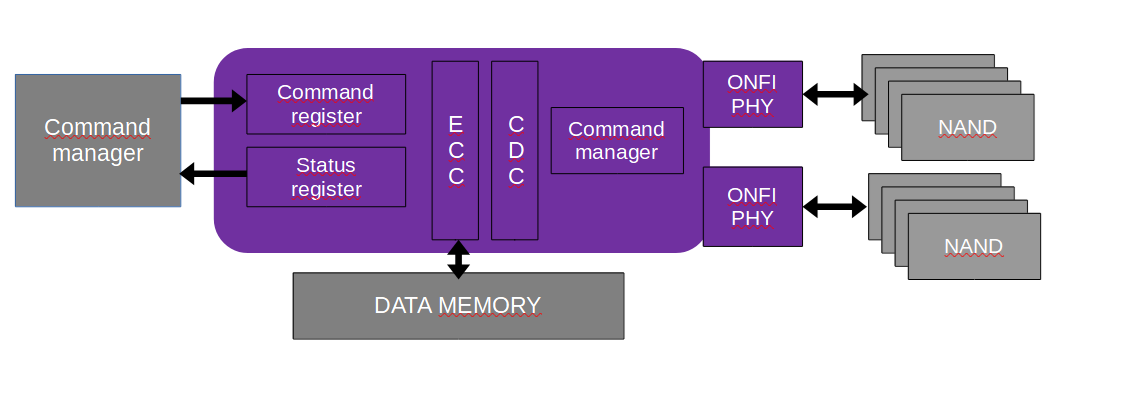

IP-Maker's Universal NAND Flash Controller (IPM-UNFC) IP core is designed specifically to enable commodity Flash memory to be effectively used in enterprise storage applications requiring high reliability and large interconnect bandwidth. Using the pre-validated IPM-UNFC IP allows greatly reduced time-to-market for storage OEMs desiring higher IOPS benefitting from lower cost SLC, MLC , TLC & QLC NandFlash memory.

Key Features

  • SLC / MLC / TLC / QLC
  • Avalon interface
  • ONFI 5.X Compliant
  • Internal DMA available
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 GX FPGA, Arria® 10 SX FPGA, Cyclone® 10 GX FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Demo No
Compliance No
Latest Quartus Version Supported 25.1.0
Development Language Verilog

IP core either in source code or in netlist

Simulation environment

Synthesis script design example

Documentation

Support maintenance

Ordering Information

Documentation & Resources

Market Segment and Sub-Segments
