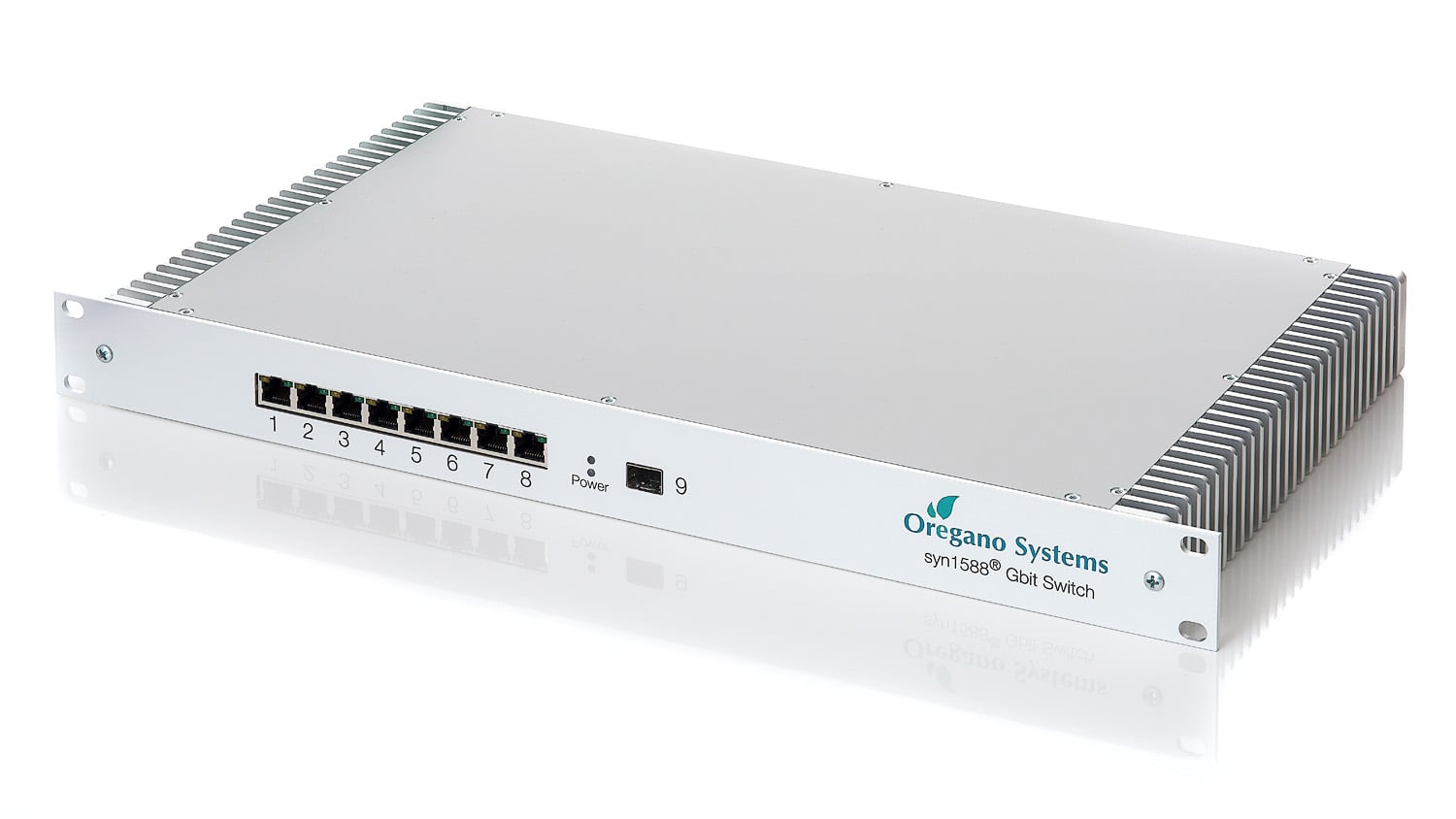

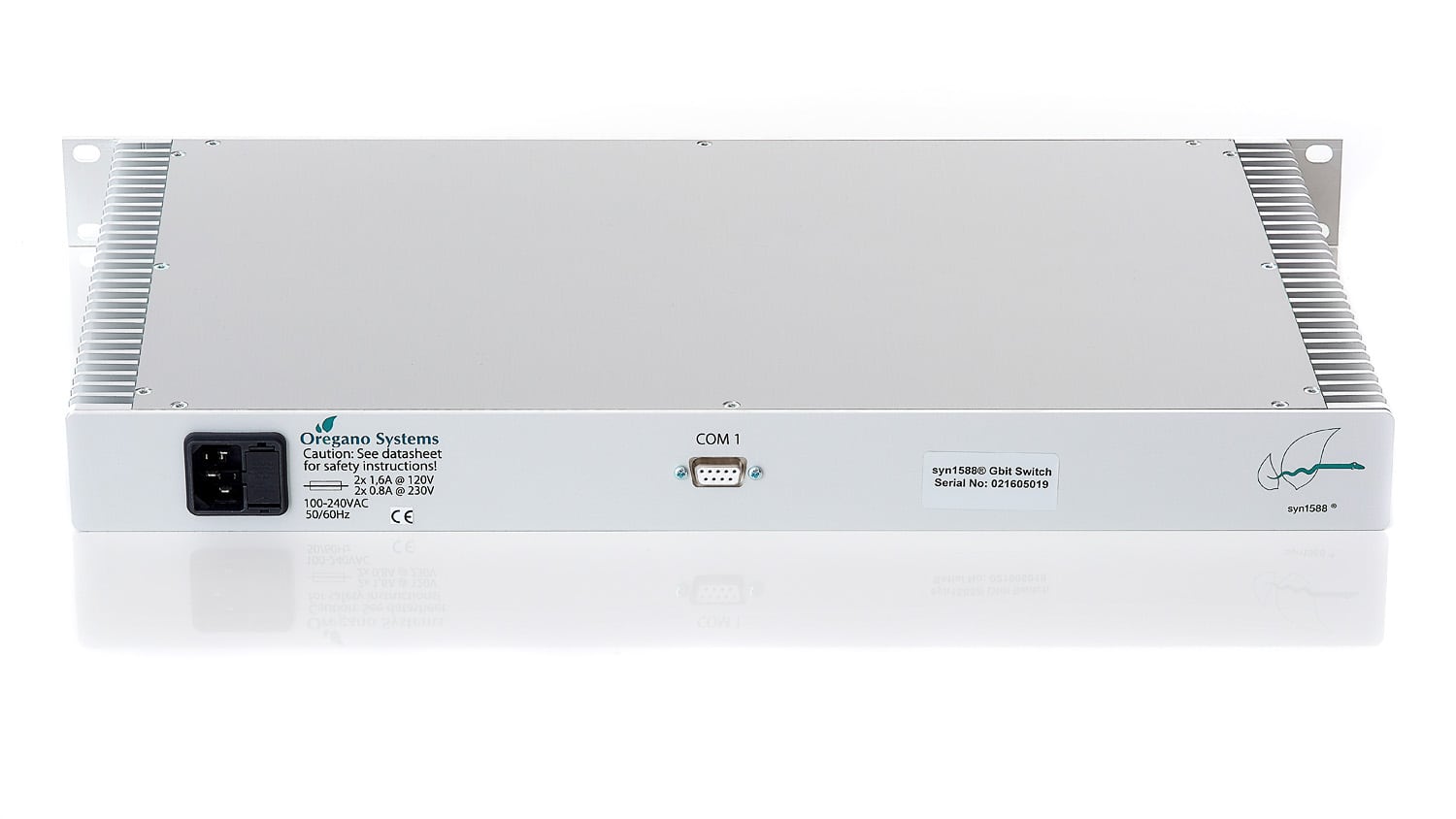

The syn1588® Gbit Switch is a standard 8-port 100/1000 Mbit/s Ethernet switch enhanced by an IEEE1588-2008 End-To-End Transparent Clock function. The unit is equipped with standard RJ45 connectors suited for industrial applications. The 9th port is of SFP type suited for 1000BASE-X/T modules. The syn1588® Gbit Switch comes in a standard 19″ rack mount case (1 HE).
Performance without compromise
The syn1588® Gbit Switch offers an amazing timestamping accuracy of 2 ns. The purely hardware based IEEE1588 packet processing engine operates non-intrusively supporting more than 256 messages/sec PTP event message rates simultaneously on all ports. Optionally, a high-stability local oscillator will increase the accuracy even further in case of heavily loaded networks with residence times in the millisecond range.
