XJRunner

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

XJTAG

Member

XJRunner is XJTAG’s production line tool, reliable and easy to use, with features that make fault location easy and that make your work easier no matter whether you are producing a short run of a few units or are manufacturing at high volume.

In one package, you have interconnection testing, in-system programming, non-JTAG device testing, serial number handling and configurable log files for your audit trail.

XJRunner tests are loaded from a single encrypted file that contains a compressed version of the XJTAG project created in XJDeveloper by your design or test engineers. This means that your tests cannot be changed in the production environment. The consistency that this ensures for your testing process can be seen when reviewing the configurable log files that can be produced whenever you test a board.

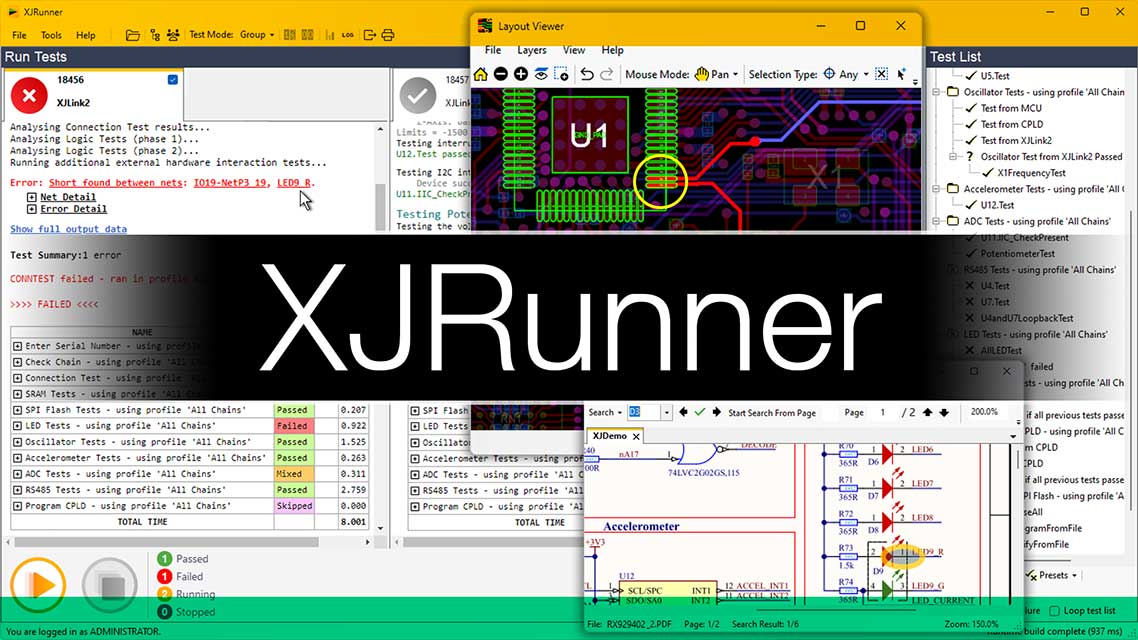

XJRunner has a simple Run/Stop, Pass/Fail interface which makes first pass testing a simple point-and-click operation, ideal for the produ...

In one package, you have interconnection testing, in-system programming, non-JTAG device testing, serial number handling and configurable log files for your audit trail.

XJRunner has a simple Run/Stop, Pass/Fail interface which makes first pass testing a simple point-and-click operation, ideal for the production line. Configurable run-time messages can tell the tester about any required procedures both before and after testing each board.

View Partner Website

Partner Product Page

Contact Now

Contact XJTAG

LeadSource

ASAP Account ID

Record Type Name

Key Features

Offering Brief

Device Family	Arria® II GX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST SoC FPGA, Arria® V SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE SoC FPGA, Cyclone® V ST SoC FPGA, Cyclone® V SX SoC FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, MAX® 10 FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, MAX® V CPLD, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status	Production
OS Support	Windows 11

Parallel Testing - Using multiple XJLinks or the 4-port XJQuad, save time by testing a batch of boards simultaneously as a group. Alternatively, run them independently but simultaneously, swapping boards as they finish testing, while tests continue to run on the other ports.

User Management - XJRunner supports multiple user privilege levels. User IDs enable audit logging and ensure users can access only the features they are trained to use. Basic users can run standard board tests, while advanced users can perform complex testing or manage project settings.

Powerful, Flexible, Diagnostic Testing - When default production tests detect a faulty board, advanced users can run additional tests and debug procedures to pinpoint faults. Individual tests or test sets can be repeated or run continuously to diagnose intermittent problems. XJRunner also provides pass/fail statistics and Fault Trend Analysis to identify tests prone to failure.

Layout & Schematic Viewers Included - Included viewers can be used to locate and understand faults found on the board while running tests by showing the schematics and routing of nets. highlighting potential problem areas. Additionally, quickly locate specific pins and nets.

Log Files - All test output can be logged. There are options to choose both what other data is logged (time, date, serial number, user information, etc.) and how the logs should be grouped (e.g. keep all output for the same board in the same file).

Serial Numbering - XJRunner can also program and log serial numbers, or other forms of identification such as MAC addresses. These can be generated or obtained by the packaged XJTAG project, or be input directly (e.g. from a bar code reader).

Easily Portable Testing - All of the files needed to run tests on a board are packaged together in one XJPack file, making it easy to transfer tests between different computers and sites.
