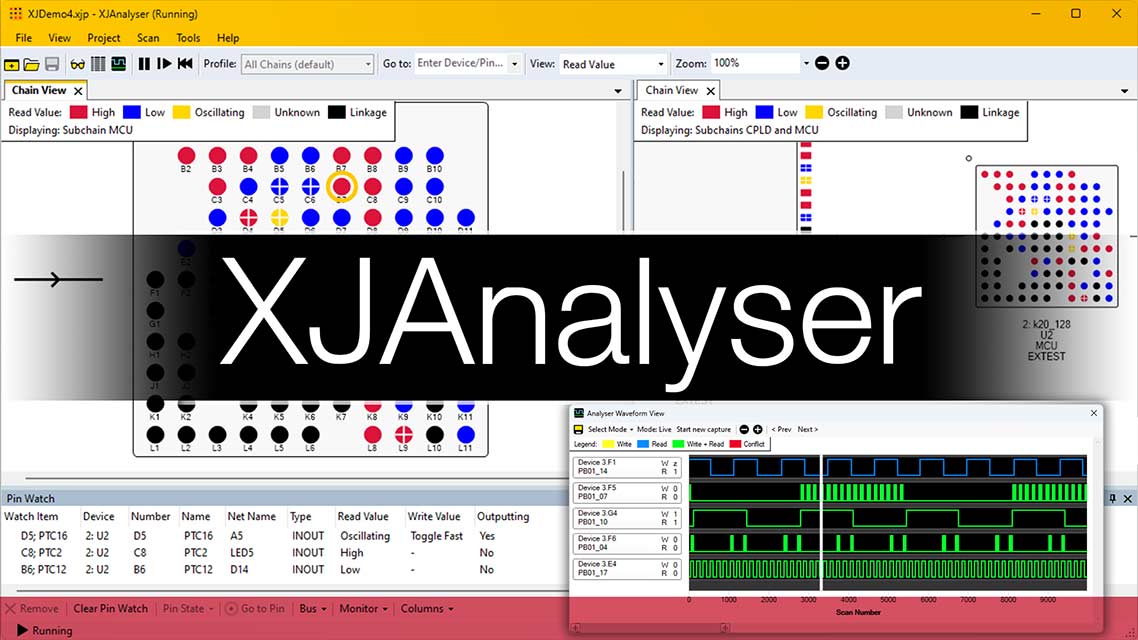

XJAnalyser Module provides an intuitive interface for setting output pin states and values, and reading input values from a circuit in near real time. The default view uses colour coding on a visual representation of devices in the circuit, but tables can also be used as can a logic analyser style view.

The module is available:

as an add-on to XJDeveloper, where it gives access to the Analyser screen and to the XJInvestigator application as an add-on to XJRunner, where it gives the ability to run the XJInvestigator application, XJTAG’s repair-focused test and debug environment for fault analysis as a standalone licence, where it gives the ability to run the XJAnalyser application which in addition to providing graphical JTAG chain control/view functionality also has the facility to run SVF and STAPL / JAM files.

XJInvestigator is a repair focused, integrated test and debug environment for fault analysis, combining the test capabilitie...

The module is available:

XJInvestigator is a repair focused, integrated test and debug environment for fault analysis, combining the test capabilities of XJRunner and XJAnalyser with additional diagnostic functionality.

View Partner Website

Partner Product Page

Contact Now

Contact XJTAG

LeadSource

ASAP Account ID

Record Type Name

Key Features

Offering Brief

Device Family	Arria® II GX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST SoC FPGA, Arria® V SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE SoC FPGA, Cyclone® V ST SoC FPGA, Cyclone® V SX SoC FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, MAX® 10 FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, MAX® V CPLD, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status	Production
OS Support	Windows 11

Control and Monitor JTAG Device Pins - Pin values can be set high, low, or toggled, with real-time colour indication. Pins can be monitored in a watch window that highlights changes automatically. Pins can also be grouped into buses, allowing values to be written to multiple pins at once.

Intuitive Pin Visualisation - JTAG chains can be viewed graphically with adjustable zoom, including split-screen views at different magnifications. Pin states can be monitored in tables or graphically via colour-coded device views. The Waveform View captures signal levels and transitions over time, with trigger capabilities to detect specific events and help identify intermittent faults.

Take Control of the Circuit - The XJAnalyser module supports continuous write-read JTAG cycles for instant feedback, or single-step cycles under user control. It can run SVF and STAPL/JAM files on any device sequence. A Golden Board comparison captures JTAG values from a known good board and highlights differences on boards with unexpected behaviour.
