H264 Video Decoder

System-On-Chip Technologies Inc.

Member

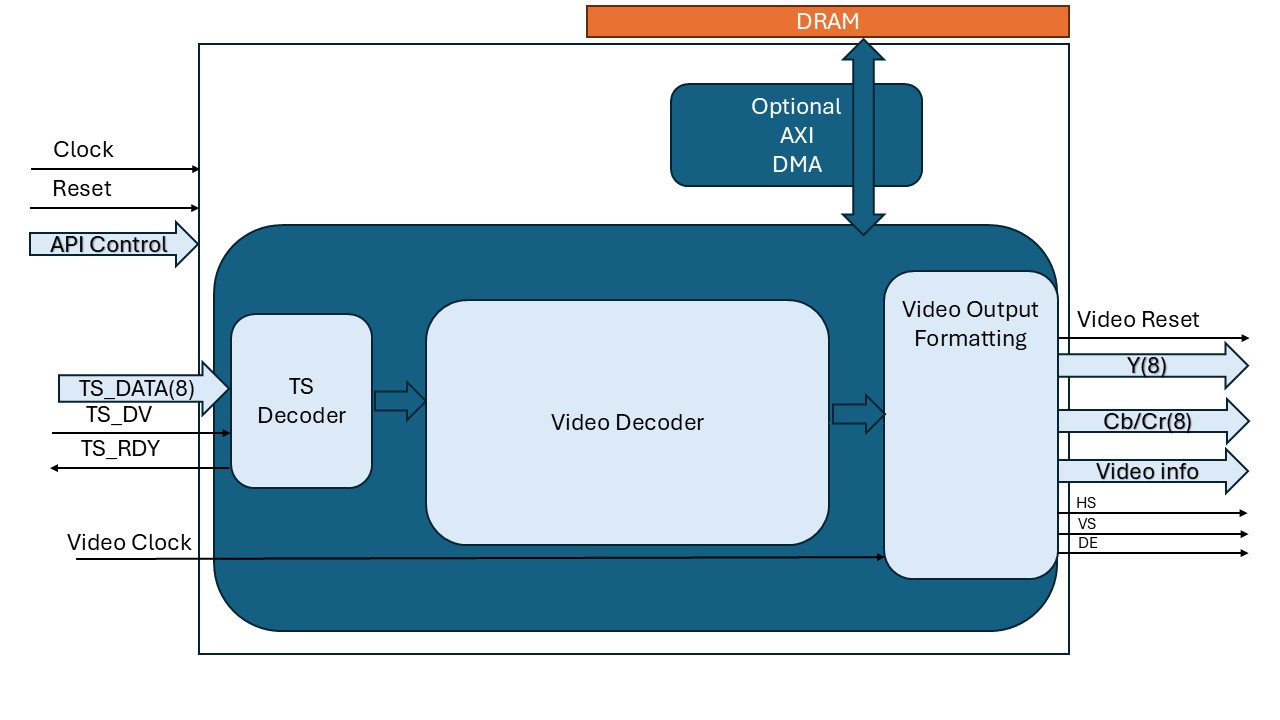

The H.264/AVC HD Video Decoder IP Core delivers real-time decoding of HD video/audio data. Supporting resolutions up to 1920×1080 at an impressive 120fps, it achieves ultra-low latency of just 0.25ms at 30fps and 0.125ms at 60fps.

Optimized for minimal FPGA resource usage, it boasts a compact footprint and ultra-low latency and power consumption, making it the perfect choice for power-sensitive electronics and high-performance processing systems.

​

Our decoders feature a dynamic API, allowing real-time adjustments of key parameters like bit rate and precision to fit your specific application needs.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • 4k60
  • interlaced and progressive support
  • 8 and 10bit
  • HDR
  • Fabric Only Core
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Arria® V SX FPGA, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® V E FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status Production
Design Examples Available Yes
Latest Quartus Version Supported 24.3.0
Development Language Encrypted VHDL

IP Core

Integration Guide

API Register Map

Sample Integration

Ordering Information

DC-H264-IPCORE

from Direct

$0.00

Order Now

Documentation & Resources

design hub icon DataSheet
