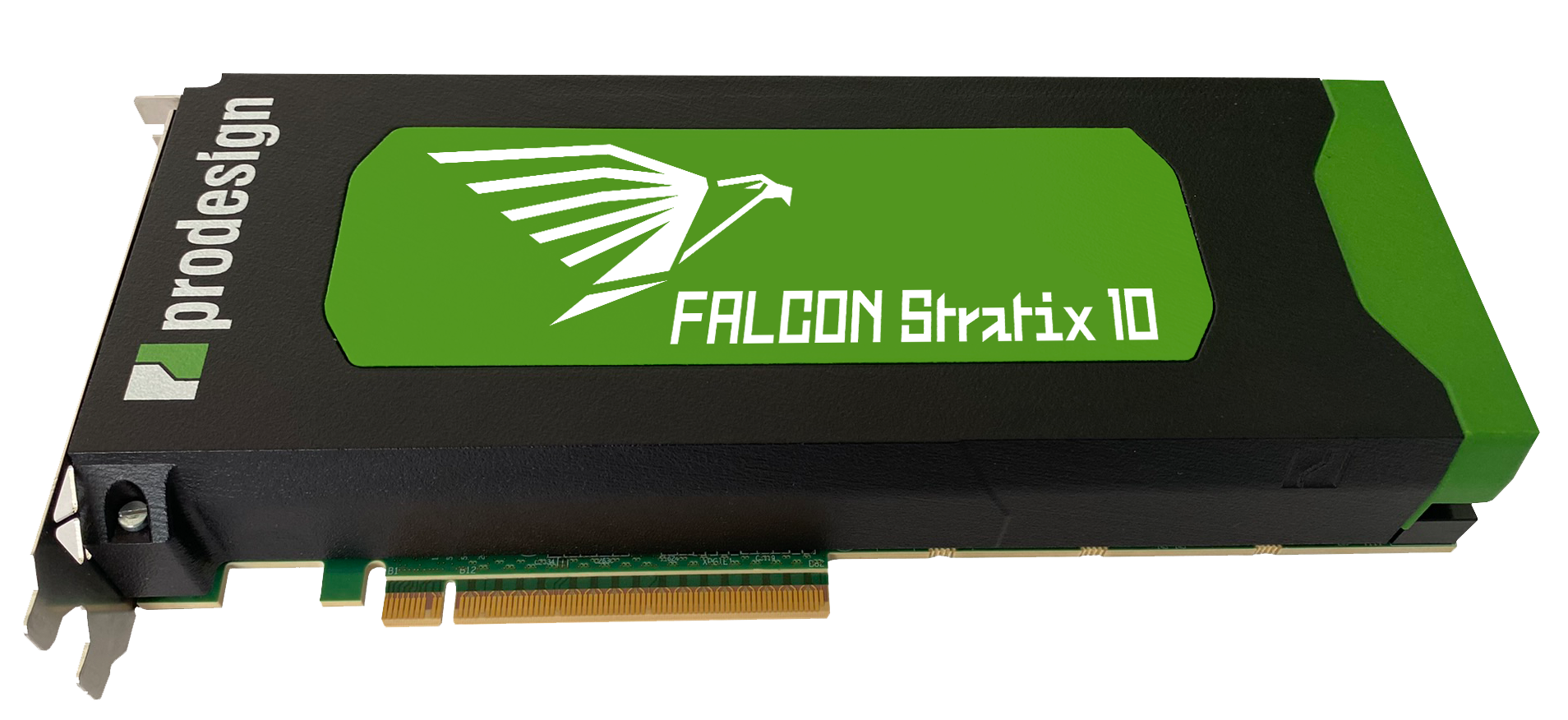

prodesign FALCON Stratix® 10 Acceleration Card

PRO DESIGN Electronic GmbH

Select

The FALCON Stratix acceleration card offers Altera® Stratix® 10 FPGA technology with high throughput HBM2 memory integration. The board is based on PCIe Gen3 x16 and offers four 100GE QSFP-DD front ports supporting 8x 100Gbit/s or 4x 200Gbit/s. Further, it offers three programmable SODIMM sockets and three high-speed NovaRay® connectors for connecting multiple memory modules or peripherals. Supporting HDL

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Altera® Stratix® 10 MX FPGA incl. HBM2
  • PCIe Gen3 x16
  • 4x QSFP28-DD network connectors with 8x 100Gbps / 4x 200Gbps
  • 3x SODIMM sockets with programmable I/Os for Standard DDR4 modules or Custom memory modules or daughter cards
  • 3x High-speed Samtec NovaRay® connectors for Board-to-board connection or High throughput peripheral interfaces
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Stratix® 10 GX FPGA
Offering Status Production
Device OPN(s) on Board 1SG210HU1F50I2LG
Demo No
Form Factor 254 mm x 111.28 mm
Power 2x Standard ATX 8-pin & PCIe slot 12V (100 W - 375 W)
Interfaces - PCIe Gen3 x16 interface direct to FPGA
- 4x QSFP28-DD connectors
Memory 3x SODIMM slots with programmable I/Os for memory and/or other interfaces
Connectors 3x Samtec NovaRay® connectors (112 Gbps PAM4 Extreme Density Arrays)
Latest Quartus Version Supported 25.3.1

Altera® Stratix® 10 MX

PCIe Gen3 x16

4x QSFP28-DD network connectors with 8x 100Gbps / 4x 200Gbps

3x SODIMM sockets with programmable I/Os

3x High-speed Samtec NovaRay® connectors

Ordering Information

PD-FALCON-1SM21

from PRO DESIGN

Order Now
