HTG-AGLX7

he HTG-AGLX-7P architecture allows easy and versatile functional expansion through two Vita 57.4 compliant High-Pin-Count FMC+ ports and one high-speed AcceleRate® ports (APF6). The FMC+ ports provide access to total of 32 F-tile transceivers and 320 GPIOs. The AcceleRate® ports provide access to 16 F-tile transceivers .

View Partner Website Right arrow Right arrow Contact Now

Key Features

  • Populated with one AGI027 Agilex 7 "I" series FPGA
  • x16 PCIE Gen5 end point connector
  • x2 FMC+ expansion ports with total of x32 F-Title transceivers & x320 GPIOs
  • x1 AcceleRate® expansion ports (APF6) with x16 F-Title transceivers
  • x2 72-bit SODIMM sockets supporting up to 64GB of DDR4 memory (shipped with two 8GB SODIMMs)
  • QSPI Flash for configuration
  • x1 10/100/1000 Ethernet port
  • x1 MicroSD socket
  • x1 USB/UART port
  • x1 Debug port
  • Supports both PCI Express and Standalone operations
Expand Close

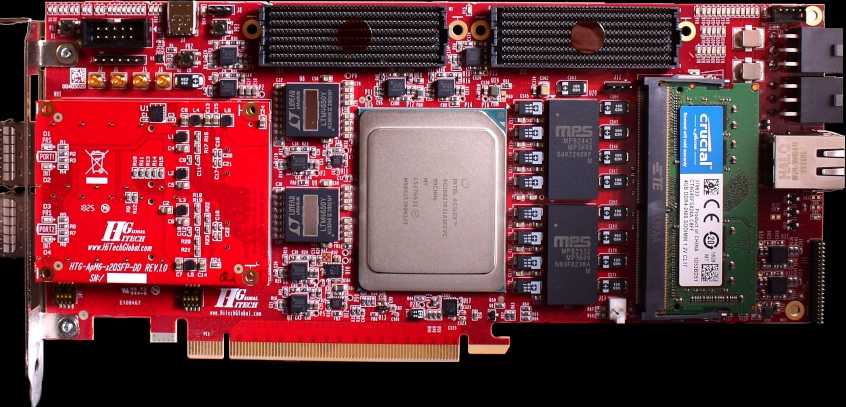

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex™ 7 FPGA I-Series
Offering Status Production
Device OPN(s) on Board AGIB027R31B2E2V
Form Factor PCI Express
Power 45
Interfaces QSFP-DD, PCIE, Ethernet , USB, DDR4, UART, MicroSD
Memory 64GB DDR4
Connectors APF6, FMC+
Switches & LEDs 20
Latest Quartus Version Supported 26.1.0

Schematic

User Manual

FPGA pinout file

DDR4 Reference Design

PCIe Reference Design

.STEP file

Ordering Information

HTG-AGLX-7P

from Direct

Order Now
