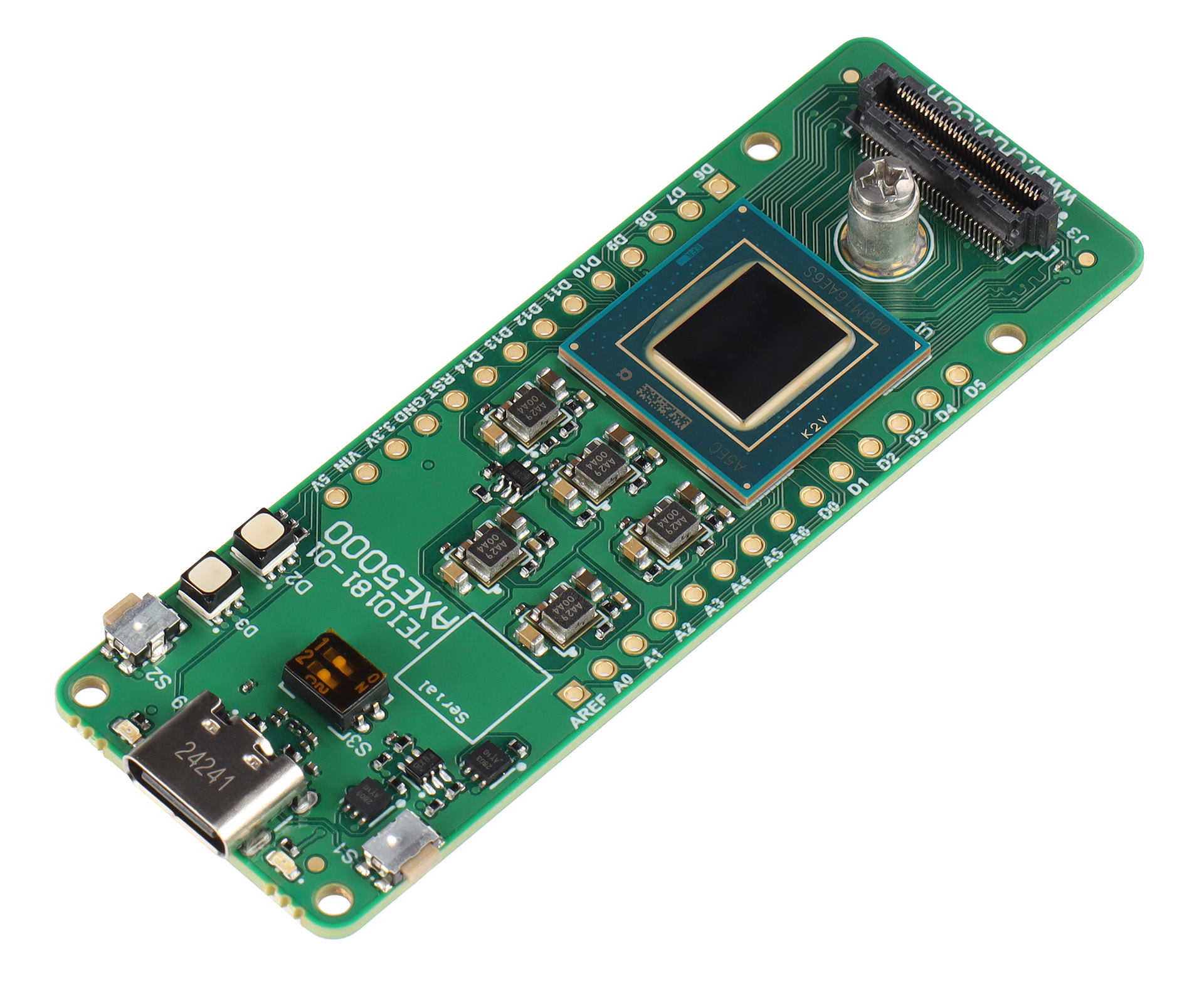

Arrow’s Devkit enables customers to evaluate the features of the Agilex™ 5 E and speed up their development. With the CRUVI HS and Arduino MKR connectors, various adapter boards can be connected, to add more peripherals.
Key Features:
FPGA
-Altera® Agilex™ 5 E-Series FPGA (A5EC008BM16AE6S)
-Package: MBGA 896-pin 16mm x 16mm 0.5mm pitch (M16A)
-Speed Grade: 6
-Temperature: Extended (Tj = 0 °C to 100 °C)
-Memory/Storage
-128 Mb HyperRAM 2.1 x8 pSRAM
-256 Mb QSPI for configuration via the SDM
On Board:
-USB Blaster III
-3-axis Accelerometer
-2x RGB LED's
-1x LED
-2x DIP Switches
-2x Buttons
Interfaces:
-1x CRUVI HS Connector
-1x Arduino MKR Connector
-UART via USB Blaster Connector
Power:
-5 V Input supply voltage via USB-C Connector
