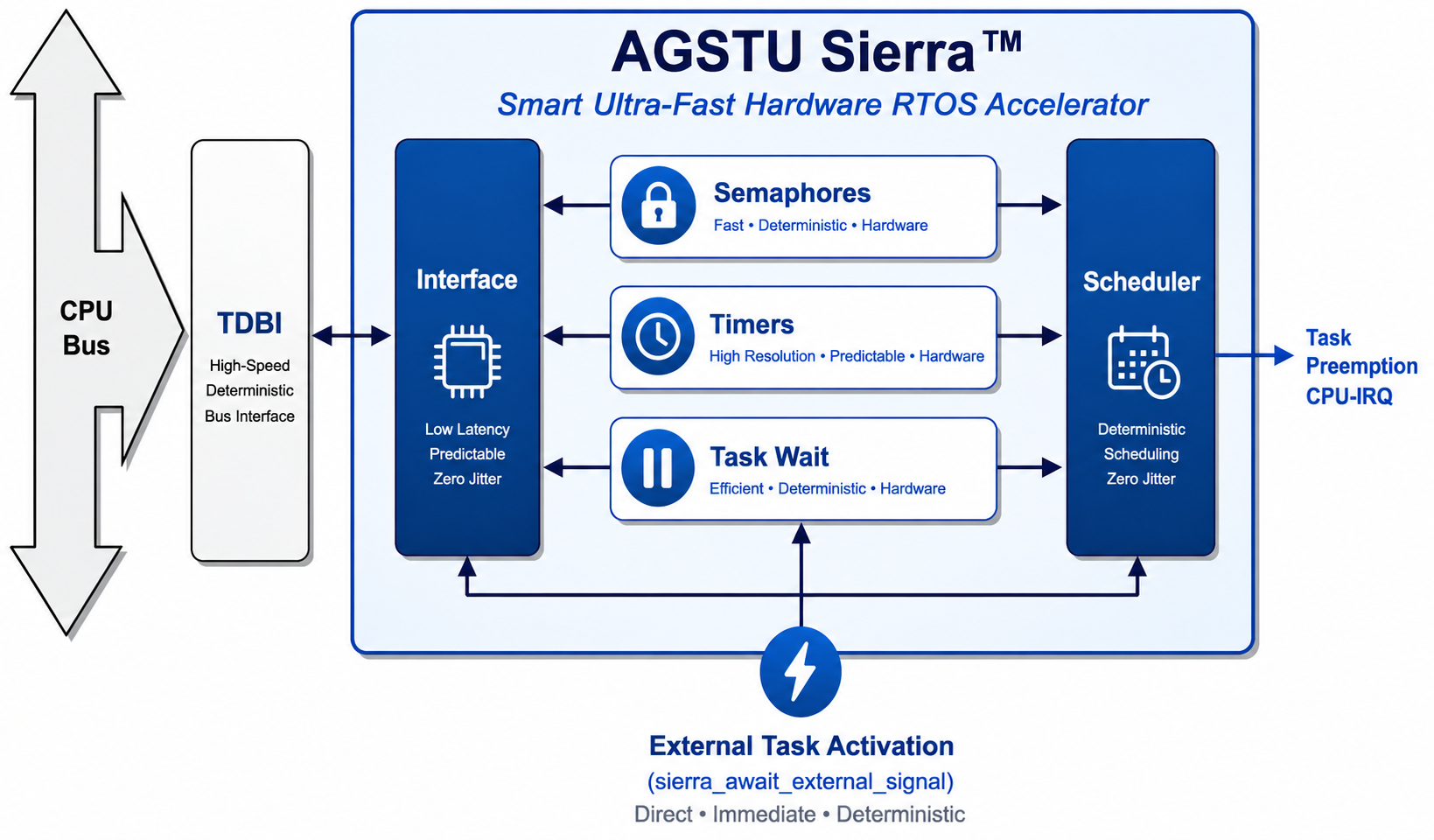

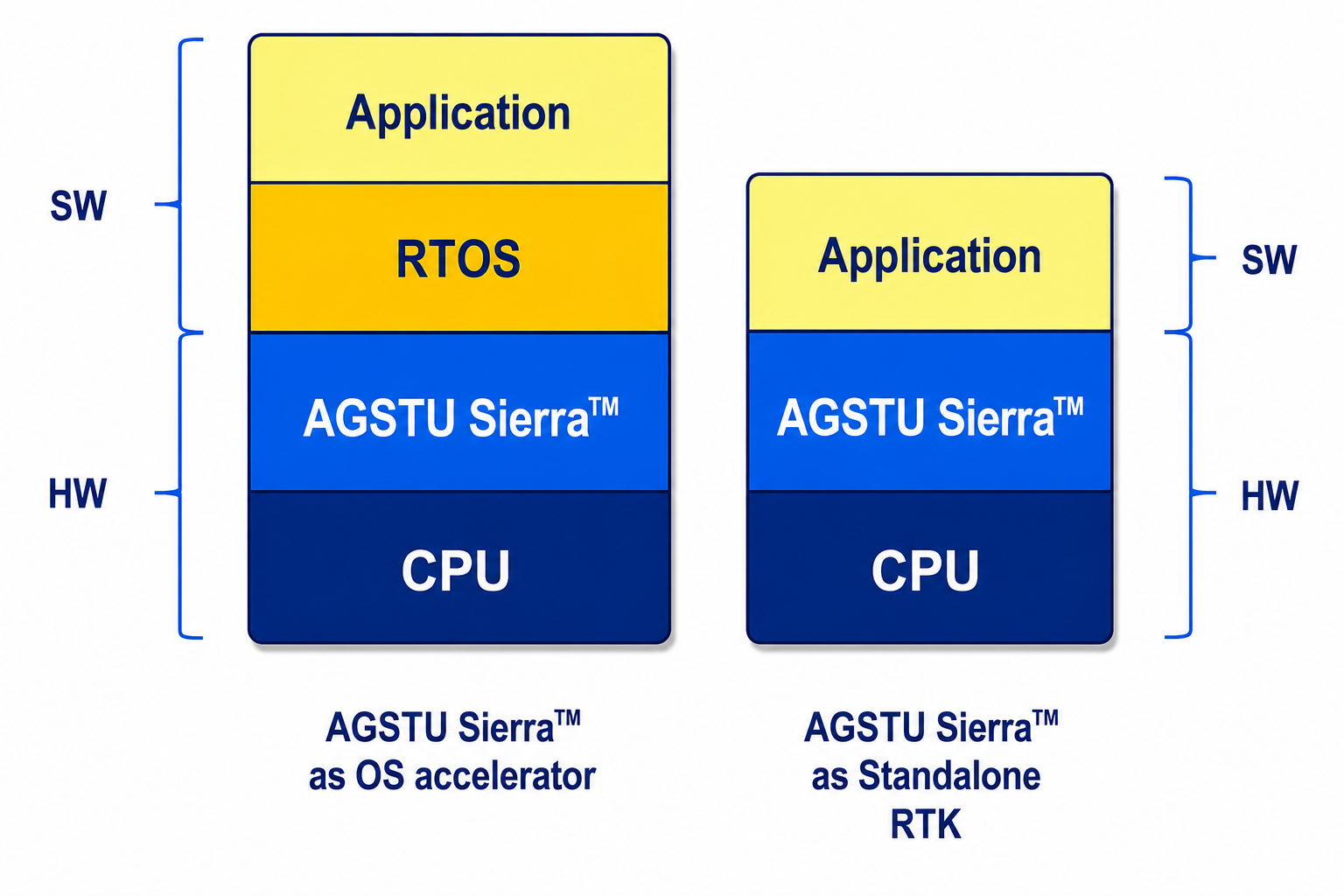

AGSTU Sierra™ is a hardware-implemented real-time kernel and RTOS accelerator designed for demanding embedded systems and FPGA-based applications. Built from multiple parallel-executing hardware units, it delivers deterministic real-time behavior, ultra-low latency (typically 1–4 bus cycles per kernel call), and highly predictable timing performance. Sierra can operate either as a stand-alone real-time kernel or as a hardware accelerator for traditional RTOS solutions. The technology is delivered as a portable FPGA IP core with a simple and flexible bus interface for straightforward system integration. Optimized for FPGA-Based Embedded Systems AGSTU Sierra™ is optimized for FPGA implementation, combining a minimal memory footprint with a lightweight and user-friendly C API. By moving critical RTOS functionality into hardware, Sierra reduces software overhead and improves interrupt handling, task scheduling performance, and deterministic behavior. The architect...

AGSTU Sierra™ is a hardware-implemented real-time kernel and RTOS accelerator designed for demanding embedded systems and FPGA-based applications. Built from multiple parallel-executing hardware units, it delivers deterministic real-time behavior, ultra-low latency (typically 1–4 bus cycles per kernel call), and highly predictable timing performance. Sierra can operate either as a stand-alone real-time kernel or as a hardware accelerator for traditional RTOS solutions. The technology is delivered as a portable FPGA IP core with a simple and flexible bus interface for straightforward system integration. Optimized for FPGA-Based Embedded Systems AGSTU Sierra™ is optimized for FPGA implementation, combining a minimal memory footprint with a lightweight and user-friendly C API. By moving critical RTOS functionality into hardware, Sierra reduces software overhead and improves interrupt handling, task scheduling performance, and deterministic behavior. The architecture supports efficient system integration, runtime deadline control, and advanced RTOS extensions, enabling high-performance and time-predictable embedded systems. To simplify development and verification, AGSTU Sierra™ is delivered with integrated logging functionality and a dedicated regression test framework for automated validation and testing of RTOS functionality and hardware/software integration.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • No CPU overhead for clock-tick processing, task scheduling, queue management…
  • Deadline control in Hardware and overload monitoring
  • Most AGSTU Sierra™ services execute in only 2–4 clock cycles
  • Direct task activation from external hardware signals — no IRQ/ISR path required
  • Simple FPGA integration with validation support through a regression testbench framework
  • Built-in event logging with high-resolution timestamp support
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex™ 3 FPGA C-Series, Agilex™ 5 FPGA D-Series, Agilex™ 5 FPGA E-Series, Agilex™ 7 FPGA F-Series, Agilex™ 7 FPGA I-Series, Agilex™ 7 FPGA M-Series, Agilex™ 9 FPGA Direct RF-Series, Arria® 10 Bare Die, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® II GX FPGA, Arria® II GZ FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Arria® V SX FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, Cyclone® II FPGA, Cyclone® III Bare Die, Cyclone® III FPGA, Cyclone® III LS FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE FPGA, Cyclone® V ST FPGA, Cyclone® V SX FPGA, HardCopy™ II ASIC Devices, HardCopy™ III ASIC Devices, MAX® 10 FPGA, Stratix® 10 AX FPGA, Stratix® 10 Bare Die, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GT FPGA, Stratix® IV GX FPGA, Stratix® V E FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, eASIC™ N3X Devices, eASIC™ N3XS Devices, eASIC™ N5X Devices, easicopy™
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Demo Yes
Compliance No
Latest Quartus Version Supported 25.1.1
OS Support Sierra real-time kernel
Development Language C/C++, VHDL

Encrypted netlist (Intellectual Property Cores)

Lightweight software drivers

Logging framework

Regression testbench framework

FPGA integration support

HW/SW integration examples

Documentations

Ordering Information

AGSTU Sierra™ Nios® V Edition

from Direct

Order Now

AGSTU Sierra™ Nios® V Edition

from EDA/IDE/Software

Order Now
