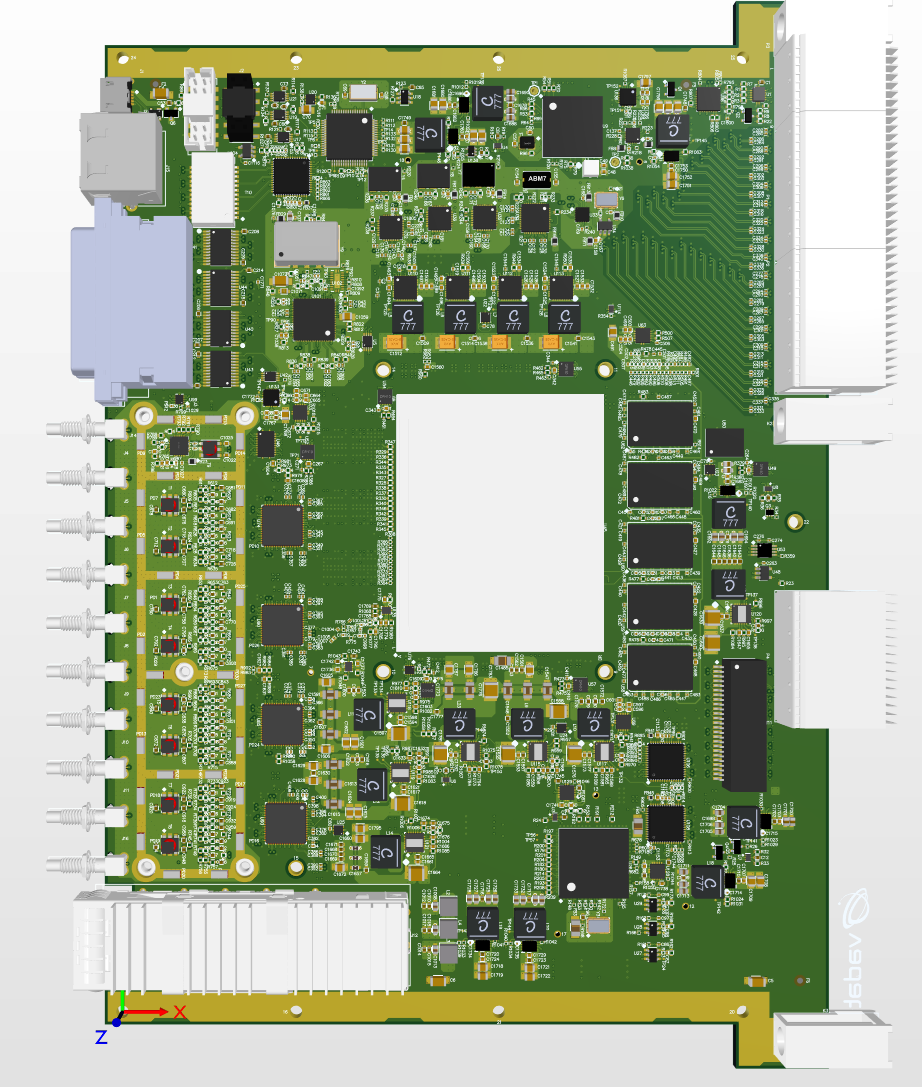

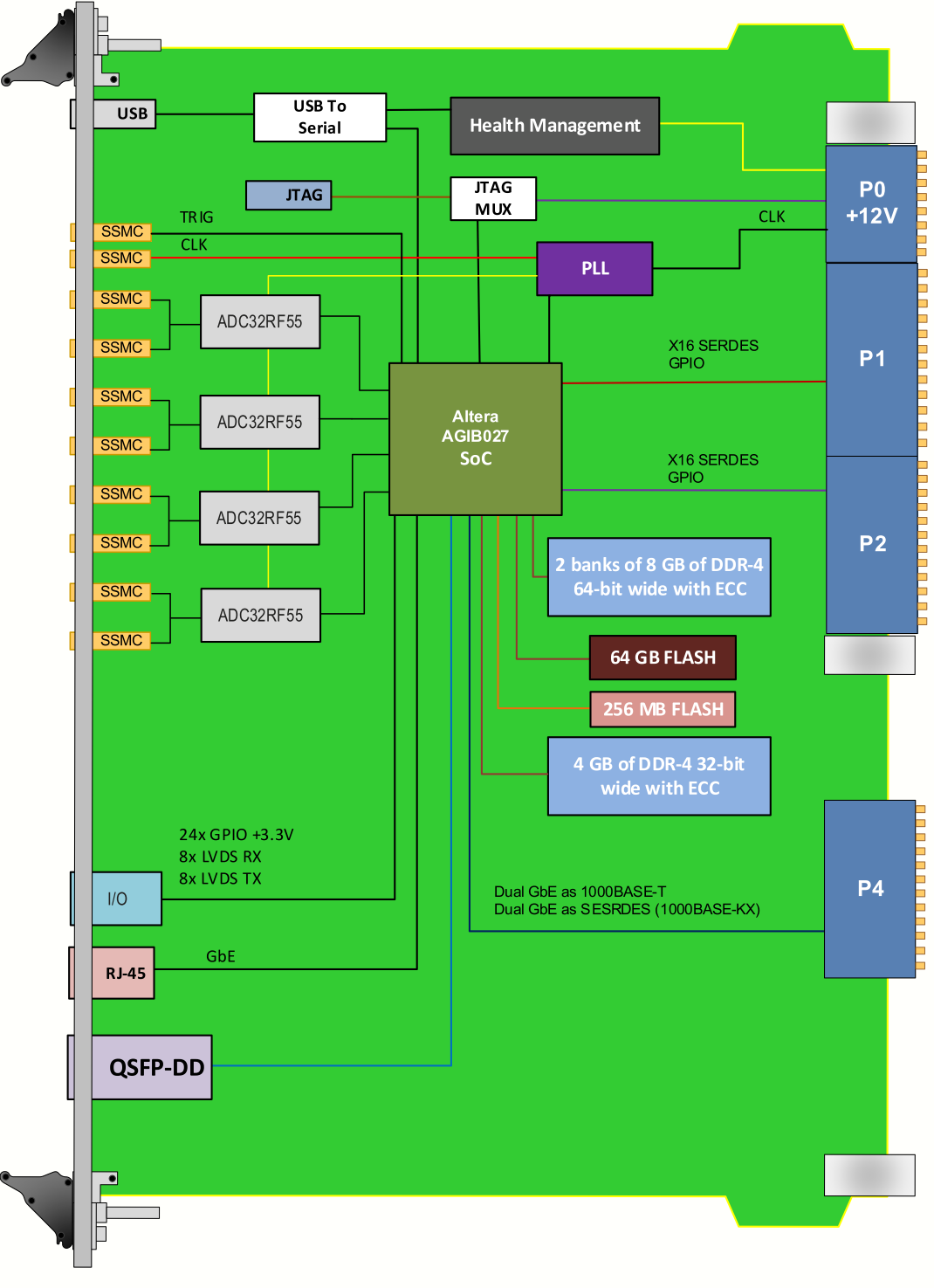

The VPX549 is a high-performance 6U OpenVPX FPGA SoC module utilizing the Altera Agilex 7 AGIB027 processor. Integrated on-board is a quad Texas Instruments ADC32RF55 digitizer array, providing an octal-channel ADC architecture.
The module provides 16 GB of DDR4 memory to the FPGA fabric, configured as two independent 8 GB, 64-bit wide banks with Error Correction Code (ECC). The Hard Processor System (HPS/ARM) is supported by a dedicated single bank of 4 GB, 32-bit wide DDR4 memory with ECC.
The FPGA interfaces directly to the P1 and P2 backplane connectors via 32 high-speed SERDES lanes supporting PCIe, SRIO, Serial Lite II, and multi-rate Ethernet (1G/10G/25G/50G/100G). Additionally, general-purpose I/O (GPIO) signals and LVDS lines are routed directly to the rear transition interface. Two 1000Base-X and two 1000Base-T are routed to the VPX P4 backplane connector.
A front panel 1000BASE-T GbE is provided. The front panel also features 12 status and user-defined LEDs alongside 8x SSMC connectors for the RF analog inputs. Further, the front panel includes a QSFP-DD transceiver which connects to eight FHT transceivers spread across two Agilex 7 F-Tiles. The QSFP-DD can typically support up to 2x 100G Optical Links when the ADC JESD lanes are in use. Auxiliary front-panel GPIO consists of 24 single-ended lines, 8 LVDS transmit (TX) pairs, and 8 LVDS receive (RX) pairs.
An on-board PLL locks onto incoming system clocks to facilitate synchronization with external clock references, distributing phase-synchronized clocks to the ADC array for fully coherent RF sampling across all eight channels. For applications requiring the lowest possible jitter, the on-board PLL can be bypassed by supplying an external input clock up to the maximum sampling frequency.
The VPX549 includes platform health management and monitoring capabilities powered by VadaTech’s field-proven IPMI software, delivering Tier-2 support compliant with VITA 46.11. The unit is available in a range of temperature, shock, and vibration configurations per ANSI/VITA standard.
Designed for open architecture frameworks, the module closely aligns with the following OpenVPX and SOSA aligned slot profile:
SLT6-PAY-4F1Q2S2U2T-10.6.4-n
Note: The VPX549 omits the P3, P5, and P6 connector allocations.
