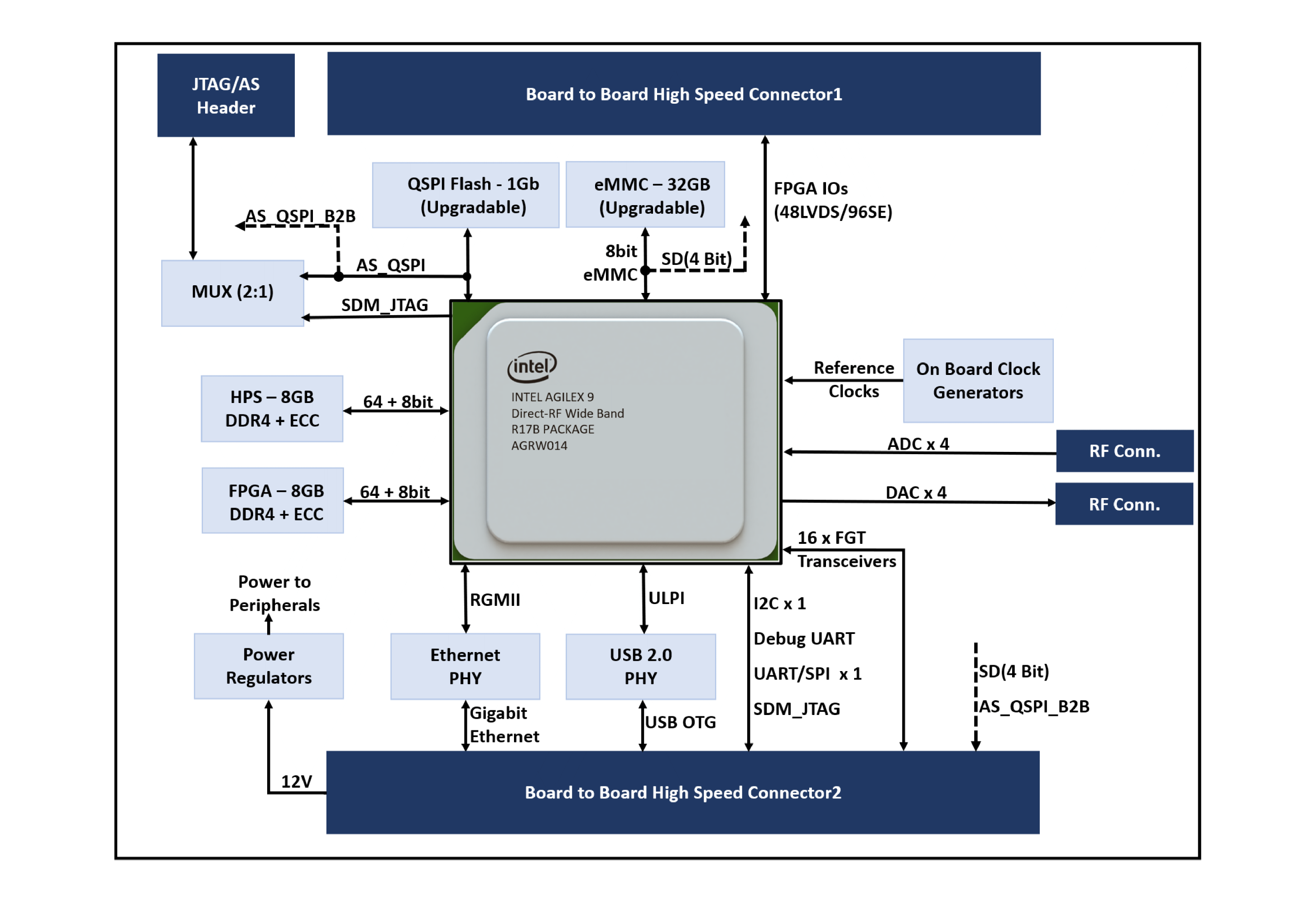

Agilex™ 9 R17B Direct RF SoM: iG-G67M

The iG-G67M is a high-performance System on Module powered by Agilex™ 9 SoC FPGA with the R17B package and AGRW014 device, designed for next-gen RF and high-speed data processing applications. It integrates 8GB DDR4 each for HPS and FPGA, 32GB eMMC, and 256MB QSPI Flash, along with 16 FGT transceivers supporting up to 58Gbps PAM4. With 4 ADCs and 4 DACs offering sampling rates up to 64Gsps and over 1.43 million logic elements, in 82mm x 110mm module. It supports applications requiring ultra-wideband RF signal acquisition and generation, including electronic warfare, radar, test and measurement, satellite communication, and spectrum monitoring.

Offerings Image

AI Bunker

Protection of proprietary AI models from theft at the edge

AID-PSP Modem

The AID-PSP (Adaptive Iterative Detection – Parallel Serial Processing) Modem IP Core is a high-performance solution for wireless and satellite communications in harsh environments. Designed for FPGA/ASIC, it delivers low-latency, error-resilient data links with adaptive modulation (QPSK, 16-QAM, 64-QAM), robust against fading, Doppler, and interference.

Offerings Image

Altera FPGA Design Services

HandsOn-Training is a real one stop shop for FPGA. Our FPGA design services provide comprehensive solutions for various industries. Our design services include FPGA design, FPGA verification, optimization for complex use cases, timing closure, software and BSP for hard and soft processors, FPGA security, and AI. With our system level approach (logic design, verification, timing, security, optimization, SW-HW interaction inside a SoC) you get a solution for any use case.

Offerings Image

Altera FPGA Designer Program

Looking to train your employees to become FPGA designers? The Altera FPGA Designer Program was developed for such purpose. The course intention is to train computer and electronics engineers from scratch to a practical work level. The course goes into great depth, and touches upon every aspect of the VHDL standard and Altera FPGA design with directly connected to the topics needed in the industry today. The course combines 50% theory with 50% practical work in every meeting with Terasic DE0-CV evaluation board. The practical labs cover all the theory and also include practical digital design. The program provides extra labs/mini projects for homework between meetings.

Altera® FPGA Design Services / IP Design Services - MLE

MLE offers FPGA design services for Altera® FPGAs, which give a wide variety of configurable embedded SRAM, high-speed transceivers, high-speed I/Os, logic blocks, and routing. Built-in intellectual property (IP) combined with outstanding software tools lower FPGA development time, power, and cost.

Andromeda IAE50

The Andromeda IAE50 SoC module features Altera® Agilex™ 5 FPGA E-Series devices with DDR5 memory, eMMC, QSPI flash, dual Gigabit Ethernet, and USB 3.1, forming a powerful embedded system. It supports vision, test and measurement, security, and communication applications with low latency and high bandwidth.

Apollo Agilex™ 7 SoM

Apollo Agilex® SOM takes advantage of the latest Altera® Agilex® 7 SoC FPGA with 1400K logic elements and combines high-end hardware interfaces such as high-capacity and high-bandwidth DDR4 SO-DIMM Sockets (up to 32GB DDR4), on-board QSFP28 connector, on-board USB-Blaster II, and FMC/FMC+ connectors for I/O expansion.

Apollo S10 SoM

Designed for modular and scalable high-performance FPGA Prototyping and HPC solutions, Apollo S10 SOM packs unbeatable performance and energy efficiency in a tiny form factor and provides up to 90X performance increase over CPUs for critical workloads such as simulation acceleration, molecular dynamics, machine learning.
