N-EMB-110 ZEKE-G EtherCAT Master_Slave

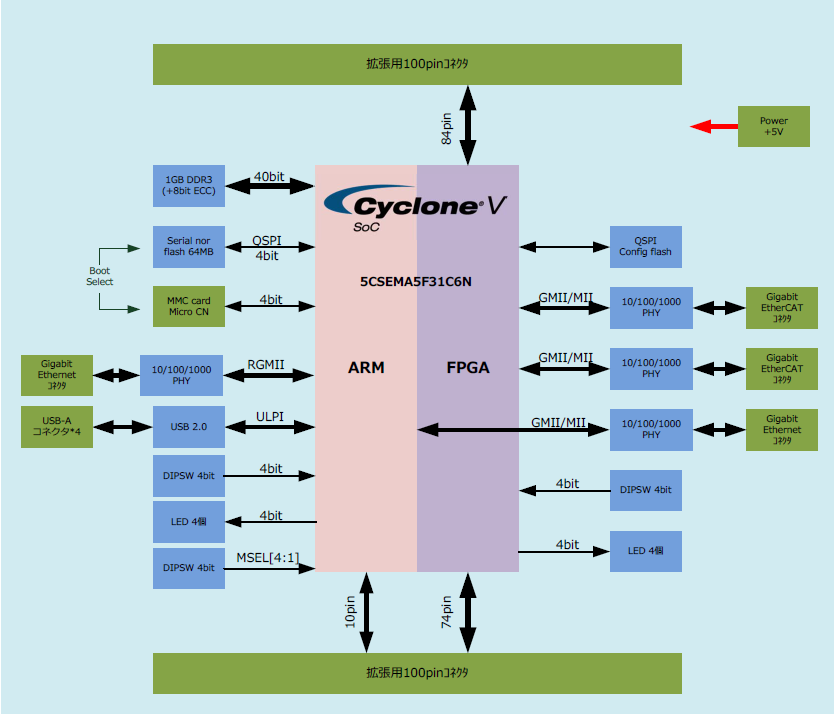

The N-EMB-110 is a high-performance industrial device platform equipped with a Cyclone® V SoC. It has two Arm Cortex-A9 processor cores and can use Linux, etc. in SMP mode. It has four RJ45 connectors: two ports for Arm-side Gigabit Ethernet and two ports for FPGA-side EtherCAT. It also has four USB ports available. Since it is equipped with two 10/100/1000 PHYs on the FPGA side, it can also use Altera®'s TSE MAC IP, etc. QSPI or microSD cards can be used as boot memory, and the boot source can be selected with jumpers on the board. This board can be used in a variety of EtherCAT (hardware master/software master and slave) applications.Hardware Master: You can evaluate our hardware master using the Ethernet on the FPGA side.Software Master: You can implement various paid software masters using the Ethernet on the Arm side. We can also provide a demo environment with an open-source master stack implemented.Slave: It can also be used as a slave by implementing an EtherCAT slave IP, such

View Details Right arrow Right arrow
/

N-EMB-120 OSCAR EtherCAT Master_Slave

The N-EMB-120 is a high-performance industrial platform featuring MAX®10 FPGAs. MAX 10 has a built-in sufficient RAM capacity, and since you can use FLASH for both config ROM and ROM, you can realize a custom CPU with one chip by using Nios® II. It is equipped with external SDRAM (32MByte x 16bit) and QSPI FLASH (521Mbit), but it can also be expanded according to the software application capacity. Since two 10/100 PHYs are installed on the FPGA side, it is possible to use Altera's TSEMAC IP. The board can be used in a variety of EtherCAT (hardware master and slave) applications. Hardware master: It is possible to evaluate our hardware master. It was developed as a retrofit to the existing CPU board to realize "Instant EtherCAT". Slave: It can also be used as a slave by mounting BECKHOFF's EtherCAT slave IP on the Ethernet on the FPGA side.

View Details Right arrow Right arrow
/

N-EMB-500 RUFE ASSP BOARD

N-EMB-500-A/B is an evaluation platform for developing in-house ASSPs and dealing with discontinued ICs. It features the MAX® 10 10M08SA FPGA, which can operate on a single 3.3V power supply and has a built-in configuration ROM, enabling single-chip FPGA operation. The MAX® 10 FPGA supports dual-boot configuration and can implement Nios II processors. You can also utilize the analog functions of the MAX® 10 FPGA to manage the board's power sequencing and power management. General-purpose LEDs, DIP switches, and push switches can be freely controlled from the MAX® 10 FPGA through HDL coding.Features when combined with a baseboard:Built-in USB Blaster II: You can start development immediately without needing a separate FPGA programming device (USB Blaster II). Simply connect a USB cable between your PC and the baseboard to perform operations equivalent to a USB Blaster II. This allows programming the FPGA, GUI-based FPGA control using the System Console, and internal FPGA signal analysis

View Details Right arrow Right arrow
/

NAND Flash Controller

The iWave NAND Flash Controller IP Core enables efficient and secure access to SLC and MLC NAND memory with built-in ECC, bad block management, and wear-leveling. It is ideal for FPGA-based storage, boot, and logging applications requiring high data integrity and flexibility.

View Details Right arrow Right arrow
/

NCO FPGA IP Core

Numerically Controlled Oscillator IP for discrete-time, discrete-valued representation of a sinusoidal waveform.

View Details Right arrow Right arrow
Altera logo

Nios V Processors

Nios® V processors are the next generation of soft processor IPs, designed to bring the power and flexibility of the open-source RISC-V Architecture to FPGA environments. By leveraging the RISC-V instruction set architecture (ISA), the Nios V processors offer scalable solutions that enable a spectrum of applications ranging from simple embedded systems to complex, high-performance applications.

View Details Right arrow Right arrow
Altera logo
Offerings Image

NMOS Core

Provided as a Linux daemon, the Nextera NMOS core allows devices to seamlessly interoperate with any NMOS control panel/system for ST 2110 or IPMX facilities. The core is provided with detailed documentation and examples for interfacing with custom AV over IP FPGA cores. Available cores are NMOS IS-04, IS-05, IS-07, IS-08, IS-09, IS-11, IS-13, and Secure NMOS.

View Details Right arrow Right arrow
/

nQrux® Crypto Module

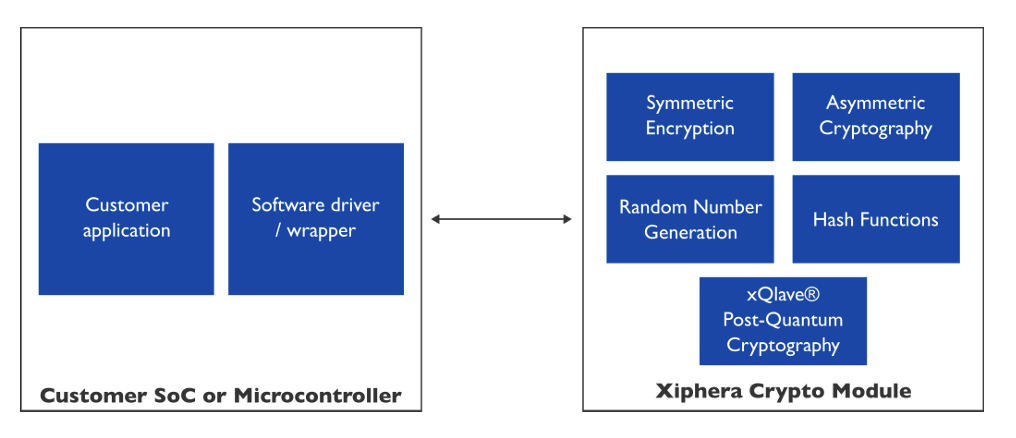

Xiphera’s nQrux® Crypto Module IP core provides a comprehensive security platform that allows for customisation of top-notch cryptographic services, suitable for both microcontrollers and SoC systems.

View Details Right arrow Right arrow
/

NT400D13 SmartNIC

The Napatech SmartNIC NT400D13 is a 2x200G PCIe Gen4 card with Altera’s Agilex™ AGFB022 FPGA. 18 GB DDR4 SDRAM (16 GB + ECC), PCIe Gen4 16 lanes @ 16 GT/s and 2 × QSFP56 network ports.

View Details Right arrow Right arrow
/
Showing 613-621 of 898 Offerings
